31 - COOLING SYSTEM - 31.1 - HIGH TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 31 - COOLING SYSTEM - 31.1 - HIGH TEMPERATURE CIRCUIT & PIPES

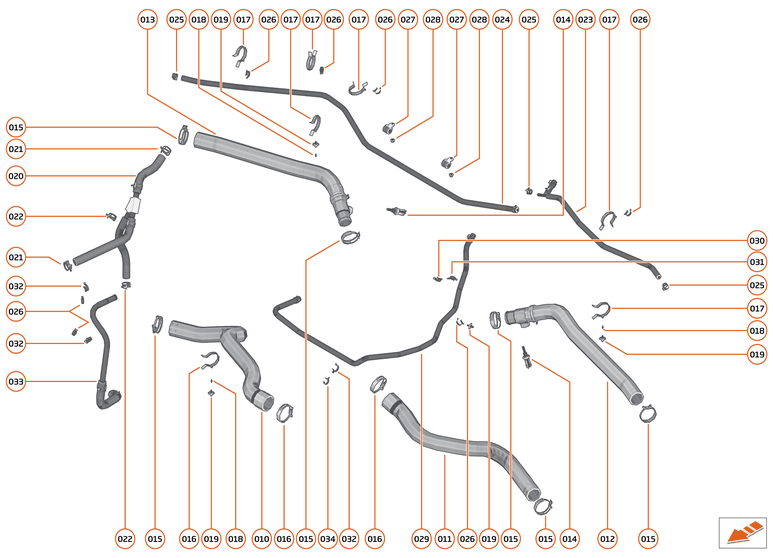

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID__00RG018_ContPgHS;	-	1	Enquire
010	14L0043CP	HOSE - ENGINE TO RADIATOR - RH	14L0043CP HOSE - ENGINE TO RADIATOR - RH Row ID: ID__14L0043CP_ContPgHS;	-	1	Enquire
011	14LA044CP	HOSE - ENGINE TO RADIATOR - LH	14LA044CP HOSE - ENGINE TO RADIATOR - LH Row ID: ID__14LA044CP_ContPgHS;	-	1	Enquire
012	26LA008SP	HOSE-RADIATOR-UPR-LH	26LA008SP HOSE-RADIATOR-UPR-LH Row ID: ID__26LA008SP_ContPgHS;	-	1	Enquire
013	26LA009SP	HOSE-RADIATOR-UPR-RH	26LA009SP HOSE-RADIATOR-UPR-RH Row ID: ID__26LA009SP_ContPgHS;	-	1	Enquire
014	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE Row ID: ID__11L0247CP_ContPgHS;	-	2	Enquire
015	00RB212	CLAMP - SPRING BAND - 42X12	00RB212 CLAMP - SPRING BAND - 42X12 Row ID: ID__00RB212_ContPgHS;	-	6	Enquire
016	00RB206	CLAMP - SPRING BAND - 47X12	00RB206 CLAMP - SPRING BAND - 47X12 Row ID: ID__00RB206_ContPgHS;	-	2	Enquire
017	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID__00RB057_ContPgHS;	-	3	Enquire
018	00RB023	CLIP SPACER - 1MM - MALE	00RB023 CLIP SPACER - 1MM - MALE Row ID: ID__00RB023_ContPgHS;	-	3	Enquire
019	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID__00RG019_ContPgHS;	-	3	Enquire
020	26LA011SP	HOSE-HEADER TANK TO Y-PIECE	26LA011SP HOSE-HEADER TANK TO Y-PIECE Row ID: ID__26LA011SP_ContPgHS;	-	1	Enquire
021	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID__00RB202_ContPgHS;	-	2	Enquire
022	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12 Row ID: ID__00RB201_ContPgHS;	-	1	Enquire
023	26LA013SP	HOSE-RAD BLEED-LH	26LA013SP HOSE-RAD BLEED-LH Row ID: ID__26LA013SP_ContPgHS;	-	1	Enquire
024	26LA014SP	HOSE-RAD BLEED-RH	26LA014SP HOSE-RAD BLEED-RH Row ID: ID__26LA014SP_ContPgHS;	-	1	Enquire
025	00RB199	CLAMP - SPRING BAND - 14X12	00RB199 CLAMP - SPRING BAND - 14X12 Row ID: ID__00RB199_ContPgHS;	-	4	Enquire
026	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID__00RB044_ContPgHS;	-	4	Enquire
027	00RB005	P CLIP - DIA 16	00RB005 P CLIP - DIA 16 Row ID: ID__00RB005_ContPgHS;	-	2	Enquire
028	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
029	26LA080SP	DEGAS HOSE 8ID	26LA080SP DEGAS HOSE 8ID Row ID: ID__26LA080SP_ContPgHS;	-	1	Enquire
030	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
031	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	1	Enquire
032	00RB141	SWIVEL CLIP - FEMALE CSC9	00RB141 SWIVEL CLIP - FEMALE CSC9 Row ID: ID__00RB141_ContPgHS;	-	1	Enquire
033	26LA085SP	HOSE-ENGINE TO Y-PIECE	26LA085SP HOSE-ENGINE TO Y-PIECE Row ID: ID__26LA085SP_ContPgHS;	-	1	Enquire
