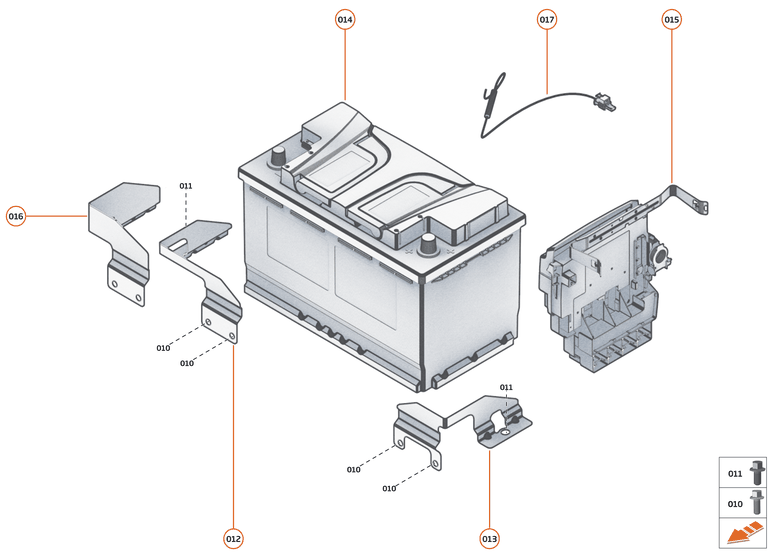

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	22MA315GP	GEN3 BATTERY 30PER CHARGE	22MA315GP GEN3 BATTERY 30PER CHARGE Row ID: ID_M0M101I9_22MA315GP_ContPgHS;	-	-	Enquire
011	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	1	Enquire
011	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Row ID: ID__00RA344_ContPgHS;	-	1	Enquire
012	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
013	13M0803CP	CLAMP - BATTERY SIDE - LH	13M0803CP CLAMP - BATTERY SIDE - LH Row ID: ID__13M0803CP_ContPgHS;	-	1	Enquire
014	14M0637CP	CLAMP - BATTERY SIDE - RH	14M0637CP CLAMP - BATTERY SIDE - RH Row ID: ID__14M0637CP_ContPgHS;	-	1	Enquire
015	22MA347GP	PRE FUSE BOX	22MA347GP PRE FUSE BOX Row ID: ID_M0M101J0_22MA347GP_ContPgHS;	-	-	Enquire
016	22MA274GP	- BATTERY - SIDE RH - MY20 GEN3	22MA274GP - BATTERY - SIDE RH - MY20 GEN3 Superseded parts: 11M1286CP; Row ID: ID_M0M101G3_22MA274GP_ContPgHS;	-	-	Enquire
017	11MA038CP	BATTERY GEN_3 LIN HARNESS	11MA038CP BATTERY GEN_3 LIN HARNESS Row ID: ID__11MA038CP_ContPgHS;	-	-	Enquire
