37 - WIRING HARNESS - 37.2 - BODY WIRING HARNESS of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 37 - WIRING HARNESS - 37.2 - BODY WIRING HARNESS

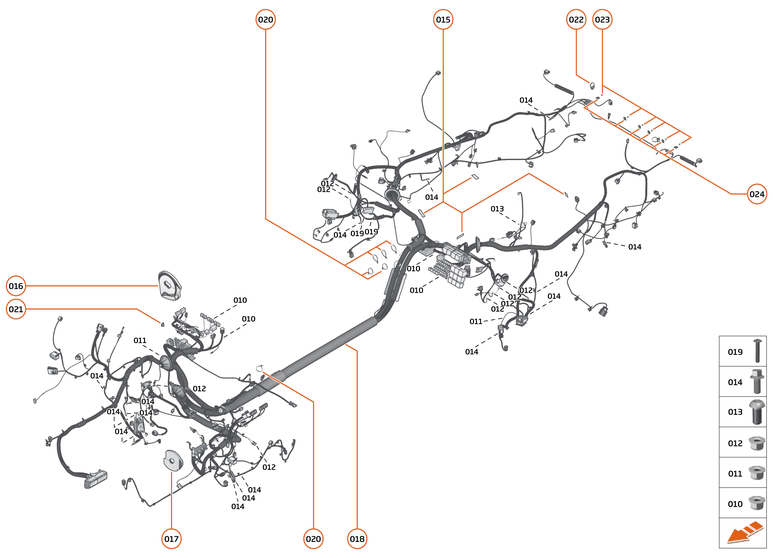

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	-	Enquire
011	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
012	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	8	Enquire
013	00RA179	SCREW - M6X10-10.9 - BUTTON	00RA179 SCREW - M6X10-10.9 - BUTTON Row ID: ID__00RA179_ContPgHS;	-	1	Enquire
014	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	15	Enquire
015	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	4	Enquire
016	11M1285CP	NVH PAD - GROMMET - UPPER	11M1285CP NVH PAD - GROMMET - UPPER Row ID: ID__11M1285CP_ContPgHS;	-	1	Enquire
017	11M2517CP	NVH PAD - GROMMET - LOWER - LHD	11M2517CP NVH PAD - GROMMET - LOWER - LHD Row ID: ID__11M2517CP_ContPgHS;	-	1	Enquire
018	15MA012RP	ASSY P15R WIRING HARNESS	15MA012RP ASSY P15R WIRING HARNESS Row ID: ID__15MA012RP_ContPgHS;	-	1	Enquire
019	00RA595	SCREW - BUTTON HEAD - TORX FLANGED - M3X16	00RA595 SCREW - BUTTON HEAD - TORX FLANGED - M3X16 Row ID: ID__00RA595_ContPgHS;	-	2	Enquire
020	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	-	Enquire
021	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
022	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM Row ID: ID__00RL011_ContPgHS;	-	3	Enquire
023	00RL015	CABLE TIE - SF100 - 18X - 110MM	00RL015 CABLE TIE - SF100 - 18X - 110MM Row ID: ID__00RL015_ContPgHS;	-	6	Enquire
024	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C Row ID: ID__00RL009_ContPgHS;	-	6	Enquire
