37 - WIRING HARNESS - 37.1 - POWER AND GROUND DISTRIBUTION of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 37 - WIRING HARNESS - 37.1 - POWER AND GROUND DISTRIBUTION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

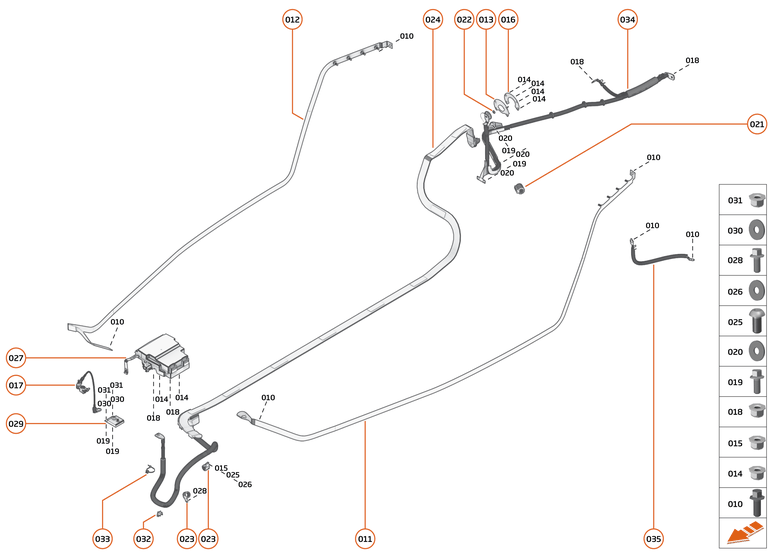

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA344	SCREW - HEX - FLANGE - M8X16 - 8.8	00RA344 SCREW - HEX - FLANGE - M8X16 - 8.8 Row ID: ID__00RA344_ContPgHS;	-	-	Enquire
011	11M2412CP	WIRING HARNESS GND24OOP-LH	11M2412CP WIRING HARNESS GND24OOP-LH Row ID: ID__11M2412CP_ContPgHS;	$908.85	1
012	11M2413CP	WIRING HARNESS GND24OOP-RH	11M2413CP WIRING HARNESS GND24OOP-RH Row ID: ID__11M2413CP_ContPgHS;	$908.85	1
013	11M0743CP	BUSBAR RETENTION PLATE	11M0743CP BUSBAR RETENTION PLATE Row ID: ID__11M0743CP_ContPgHS;	-	1	Enquire
014	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	-	Enquire
015	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	1	Enquire
016	11M0779CP	BUSBAR RETENTION PLATE AFT - REAR	11M0779CP BUSBAR RETENTION PLATE AFT - REAR Row ID: ID__11M0779CP_ContPgHS;	-	1	Enquire
017	15MA057RP	ASSY - CABLE BATTERY NEGATIVE	15MA057RP ASSY - CABLE BATTERY NEGATIVE Row ID: ID__15MA057RP_ContPgHS;	-	1	Enquire
018	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	-	Enquire
019	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	-	Enquire
020	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	3	Enquire
021	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID__00RA367_ContPgHS;	-	1	Enquire
022	00RA262	HALF NUT - M8 - DIN 439	00RA262 HALF NUT - M8 - DIN 439 Row ID: ID__00RA262_ContPgHS;	-	1	Enquire
023	00RB060	P CLIP - DIA 20	00RB060 P CLIP - DIA 20 Row ID: ID__00RB060_ContPgHS;	-	2	Enquire
024	11M0926CP	BUSBAR - LHD	11M0926CP BUSBAR - LHD Row ID: ID__11M0926CP_ContPgHS;	-	1	Enquire
025	00RA602	BOLT - M6X1X10 - TORX	00RA602 BOLT - M6X1X10 - TORX Row ID: ID__00RA602_ContPgHS;	-	1	Enquire
026	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9 Row ID: ID__00RC008_ContPgHS;	-	1	Enquire
027	14MA024CP	FUSEBOX - BATTERY - FRONT	14MA024CP FUSEBOX - BATTERY - FRONT Row ID: ID__14MA024CP_ContPgHS;	-	1	Enquire
028	00RA294	Screw - M6x16 - Taptite Hex	00RA294 Screw - M6x16 - Taptite Hex Row ID: ID__00RA294_ContPgHS;	-	1	Enquire
029	15MA035RP	SOLID STATE MASTER SWITCH	15MA035RP SOLID STATE MASTER SWITCH Row ID: ID__15MA035RP_ContPgHS;	-	1	Enquire
030	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	2	Enquire
031	ZZUA016QP	M6X1.0 6PT KNUT	ZZUA016QP M6X1.0 6PT KNUT Row ID: ID__ZZUA016QP_ContPgHS;	-	2	Enquire
032	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
033	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	1	Enquire
034	14MA628CP	WIRING HARNESS - STARTER MOTOR - INC. CARRIER	14MA628CP WIRING HARNESS - STARTER MOTOR - INC. CARRIER Row ID: ID__14MA628CP_ContPgHS;	-	1	Enquire
034	14MA614CP	WIRING HARNESS STARTER	14MA614CP WIRING HARNESS STARTER Row ID: ID__14MA614CP_ContPgHS;	-	-	Enquire
035	13MA183CP	ENGINE GROUND STRAP	13MA183CP ENGINE GROUND STRAP Row ID: ID__13MA183CP_ContPgHS;	-	1	Enquire
