McLaren Ultimate Series McLaren Senna GTR - 38 - ELECTRICAL SYSTEMS - 38.9 - TYRE PRESSURE MONITORING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

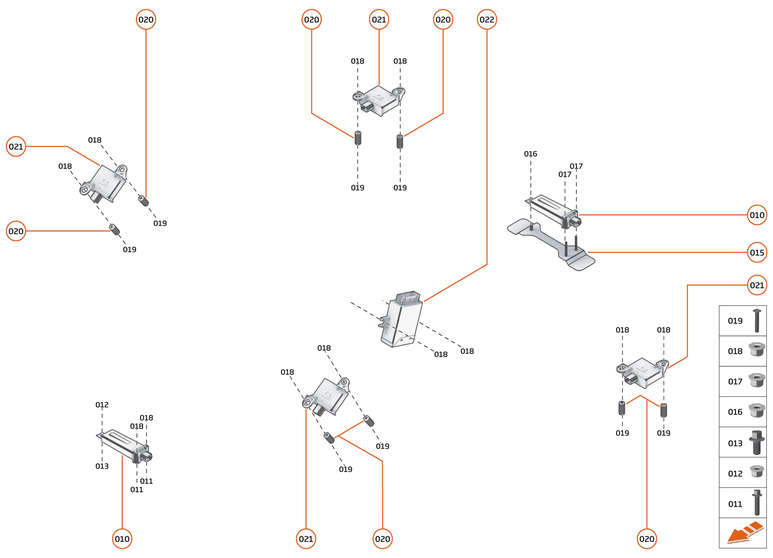

38 - ELECTRICAL SYSTEMS - 38.9 - TYRE PRESSURE MONITORING SYSTEM of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11M0437CP
ANTENNA - TYRE PRESSURE MONITOR - 433MHZ
Row ID: ID__11M0437CP_ContPgHS; 		- 1 Enquire
011 00RA235
BOLT - M5X35 - FLANGED - 8.8
Row ID: ID__00RA235_ContPgHS; 		- 2 Enquire
012 00RA555
NUT - M5X0.8 - HEX LOCKED
Row ID: ID__00RA555_ContPgHS; 		- 1 Enquire
013 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 1 Enquire
015 12M0535CP
BRACKET - TYRE PRESSURE MONITOR ANTENNA
Row ID: ID__12M0535CP_ContPgHS; 		- 1 Enquire
016 00RA011
NUT-HEX HEAD-FLANGE-M6-8
Row ID: ID__00RA011_ContPgHS; 		- 1 Enquire
017 00RA582
NUT - M5 - HEX
Row ID: ID__00RA582_ContPgHS; 		- 2 Enquire
018 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; 		- 2 Enquire
019 00RA233
SCREW - M6X40 - BUTTON - FLANGE
Row ID: ID__00RA233_ContPgHS; 		- 8 Enquire
020 00RA234
SPACER - NYLON - 6.53ID X 12.7OD X 25MM
Row ID: ID__00RA234_ContPgHS; 		- 8 Enquire
021 11M0485CP
TRIGGER - TYRE PRESSURE MONITOR
Row ID: ID__11M0485CP_ContPgHS; 		- 4 Enquire
022 11M3460LP
CONTROL UNIT - TYRE PRESSURE MONITOR
Row ID: ID__11M3460LP_ContPgHS; 		- 1 Enquire
