20 - STEERING - 20.4 - STEERING COLUMN of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 20 - STEERING - 20.4 - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

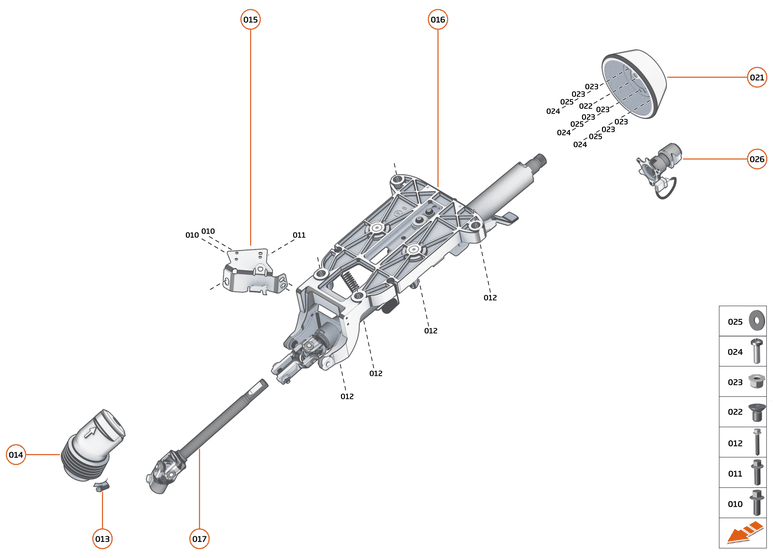

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	2	Enquire
011	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	1	Enquire
012	00RA510	BOLT - TORX HEAD - FLANGE - M8X1.25X45	00RA510 BOLT - TORX HEAD - FLANGE - M8X1.25X45 Row ID: ID__00RA510_ContPgHS;	-	4	Enquire
013	00RB049	HOSE CLAMP - 40-60MM	00RB049 HOSE CLAMP - 40-60MM Row ID: ID__00RB049_ContPgHS;	-	1	Enquire
014	11D0254CP	GAITER-STEERING CO24MN	11D0254CP GAITER-STEERING CO24MN Row ID: ID__11D0254CP_ContPgHS;	$25.37	1
015	14DA009CP	FACIA NVH BRACKET 24RHD	14DA009CP FACIA NVH BRACKET 24RHD Row ID: ID__14DA009CP_ContPgHS;	$30.20	1
015	11N3514CP	Bracket - Facia NVH Support - LHD - Electric Column	11N3514CP Bracket - Facia NVH Support - LHD - Electric Column Row ID: ID__11N3514CP_ContPgHS;	-	1	Enquire
016	13DA036RP	STEERING COLUMN UPPER MANUAL-R	13DA036RP STEERING COLUMN UPPER MANUAL-R Row ID: ID__13DA036RP_ContPgHS;	-	1	Enquire
016	13DA023RP	STEERING COLUMN - MANUAL - UPPER	13DA023RP STEERING COLUMN - MANUAL - UPPER Row ID: ID__13DA023RP_ContPgHS;	-	1	Enquire
017	11D0244RP	STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S - 540C - 720S	11D0244RP STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S - 540C - 720S Row ID: ID__11D0244RP_ContPgHS;	-	1	Enquire
021	15DA012RP	SHROUD STEERING COLUMN SENNA G	15DA012RP SHROUD STEERING COLUMN SENNA G Row ID: ID__15DA012RP_ContPgHS;	-	1	Enquire
021	12N0637RP	P1 GTR STEERING COLUMN SHROUD	12N0637RP P1 GTR STEERING COLUMN SHROUD Row ID: ID__12N0637RP_ContPgHS;	-	1	Enquire
022	11N2249CP	SCREW - M16X25 - SKT - CSK	11N2249CP SCREW - M16X25 - SKT - CSK Row ID: ID__11N2249CP_ContPgHS;	-	1	Enquire
023	00RA074	NUT-HEX HEAD FLANG24M5	00RA074 NUT-HEX HEAD FLANG24M5 Row ID: ID__00RA074_ContPgHS;	-	-	Enquire
024	00RA574	SCREW - M5X25 - TORX	00RA574 SCREW - M5X25 - TORX Row ID: ID__00RA574_ContPgHS;	-	3	Enquire
025	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	3	Enquire
026	15DA005RP	ASSY - QR STEERING WHEEL BOSS	15DA005RP ASSY - QR STEERING WHEEL BOSS Row ID: ID__15DA005RP_ContPgHS;	-	1	Enquire
027	11D0083RP	STEERING COLUMN - UPPER - ELECTRIC - LHD	11D0083RP STEERING COLUMN - UPPER - ELECTRIC - LHD Row ID: ID__11D0083RP_ContPgHS;	-	1	Enquire
