17 - Suspension - 17.8 - Road Springs Rear

McLaren Ultimate Series McLaren Senna GTR

Find Your Part

McLaren Ultimate Series McLaren Senna GTR - 17 - SUSPENSION - 17.8 - ROAD SPRINGS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

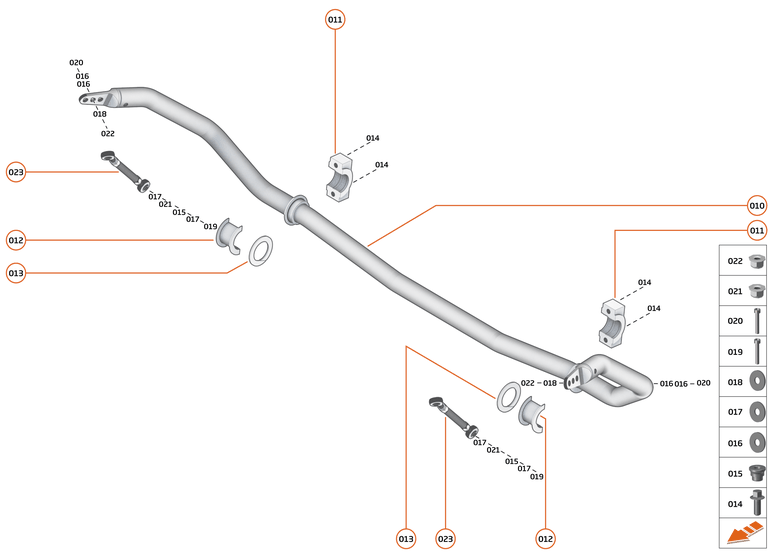

17 - SUSPENSION - 17.8 - ROAD SPRINGS REAR of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 15BA086RP
REAR ANTI ROLL BAR
Row ID: ID__15BA086RP_ContPgHS; 		- 1 Enquire
011 15BA111RP
CLAMP RARB 0.875IN DIA
Row ID: ID__15BA111RP_ContPgHS; 		- 2 Enquire
012 15BA112RP
SLEEVE CLAMP ARB 0.875IN DIA
Row ID: ID__15BA112RP_ContPgHS; 		- 2 Enquire
013 15BA114RP
WASHER LATERAL RARB
Row ID: ID__15BA114RP_ContPgHS; 		- 2 Enquire
014 00RA606
BOLT - M8X1.25 - HEX
Row ID: ID__00RA606_ContPgHS; 		- 4 Enquire
015 15BA121RP
TOPHAT DROPLINK ARB LWR
Row ID: ID__15BA121RP_ContPgHS; 		- - Enquire
016 15BA122RP
TOPHAT DROPLINK ARB
Row ID: ID__15BA122RP_ContPgHS; 		- - Enquire
017 00RC028
WASHER - M6 FORM C
Row ID: ID__00RC028_ContPgHS; 		- - Enquire
018 00RC048
WASHER - FORM C - 21X1.6 - M8
Row ID: ID__00RC048_ContPgHS; 		- - Enquire
019 ZZTA056QP
M6X40 UNBRAKO SHCS
Row ID: ID__ZZTA056QP_ContPgHS; 		- - Enquire
020 ZZTA077QP
M8X35 UNBRAKO SHCS
Row ID: ID__ZZTA077QP_ContPgHS; 		- - Enquire
021 ZZUA016QP
M6X1.0 6PT KNUT
Row ID: ID__ZZUA016QP_ContPgHS; 		- - Enquire
022 ZZUA017QP
M8X1.25 6PT KNUT
Row ID: ID__ZZUA017QP_ContPgHS; 		- 1 Enquire
023 15BA116RP
ASSY DROPLINK ARB RR
Row ID: ID__15BA116RP_ContPgHS; 		- - Enquire
