18 - BRAKES - 18.10 - BRAKE PIPES of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 18 - BRAKES - 18.10 - BRAKE PIPES

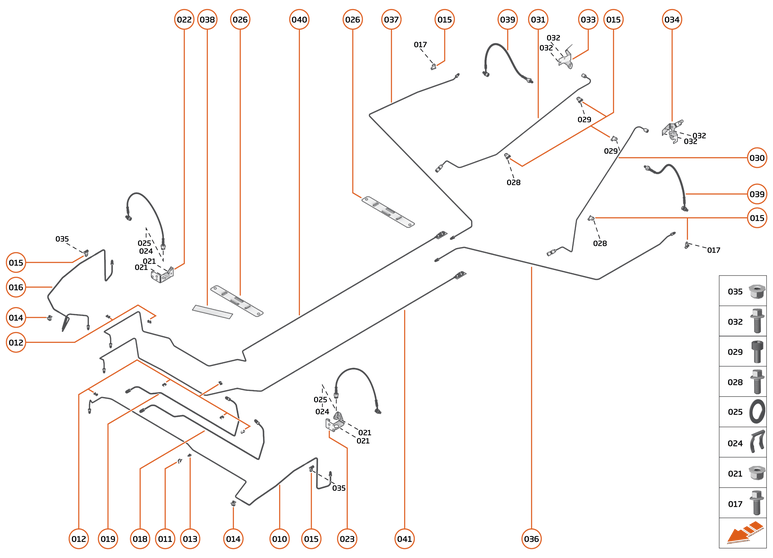

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15CA051RP	PIPE-BRAKE-ABS MOD-HOSE-FR-LH	15CA051RP PIPE-BRAKE-ABS MOD-HOSE-FR-LH Row ID: ID__15CA051RP_ContPgHS;	-	1	Enquire
010	15CA079CP	BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH	15CA079CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - LH Row ID: ID__15CA079CP_ContPgHS;	-	1	Enquire
011	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS;	-	1	Enquire
012	00RB134	DOUBLE PIPE CLIP IAC27	00RB134 DOUBLE PIPE CLIP IAC27 Row ID: ID__00RB134_ContPgHS;	-	-	Enquire
013	00RB168	SWIVEL CLIP - 4.3-5.2 - FEMALE	00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Row ID: ID__00RB168_ContPgHS;	-	1	Enquire
014	00RB180	CLIP - FIRTREE - 23.8X4	00RB180 CLIP - FIRTREE - 23.8X4 Row ID: ID__00RB180_ContPgHS;	-	-	Enquire
015	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6) Row ID: ID__00RB063_ContPgHS;	-	-	Enquire
016	15CA053RP	PIPE-BRAKE-ABS MOD-HOSE-FR-RH	15CA053RP PIPE-BRAKE-ABS MOD-HOSE-FR-RH Row ID: ID__15CA053RP_ContPgHS;	-	1	Enquire
016	15CA077CP	BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH	15CA077CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH Row ID: ID__15CA077CP_ContPgHS;	-	1	Enquire
016	14C0167CP	BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH	14C0167CP BRAKE PIPE - ABS MODULATOR TO BRAKE HOSE - FRONT - RH Row ID: ID__14C0167CP_ContPgHS;	-	1	Enquire
017	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	-	Enquire
018	12C0253CP	BRAKE HOSE - FRONT	12C0253CP BRAKE HOSE - FRONT Row ID: ID__12C0253CP_ContPgHS;	-	1	Enquire
019	15CA167CP	BRAKE HOSE - FRONT	15CA167CP BRAKE HOSE - FRONT Row ID: ID__15CA167CP_ContPgHS;	-	1	Enquire
020	00RB043	CLIP-DOUBLE-DIA 6 24	00RB043 CLIP-DOUBLE-DIA 6 24 Row ID: ID__00RB043_ContPgHS;	-	-	Enquire
021	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	-	Enquire
022	14C0118CP	BRACKET - BRAKE PIPE - FRONT - RH	14C0118CP BRACKET - BRAKE PIPE - FRONT - RH Row ID: ID__14C0118CP_ContPgHS;	-	1	Enquire
022	15CA148CP	BRACKET - BRAKE HOSE TO BODY - FRONT - RH	15CA148CP BRACKET - BRAKE HOSE TO BODY - FRONT - RH Row ID: ID__15CA148CP_ContPgHS;	-	1	Enquire
023	15CA146CP	BRACKET - BRAKE HOSE TO BODY - FRONT - LH	15CA146CP BRACKET - BRAKE HOSE TO BODY - FRONT - LH Row ID: ID__15CA146CP_ContPgHS;	-	1	Enquire
024	12C0294CP	CLIP - SPRING - HOSE BRACKET	12C0294CP CLIP - SPRING - HOSE BRACKET Row ID: ID__12C0294CP_ContPgHS;	-	2	Enquire
025	12C0296CP	WASHER - SPRING CLIP	12C0296CP WASHER - SPRING CLIP Row ID: ID__12C0296CP_ContPgHS;	-	2	Enquire
026	11C0237CP	CLAMP - CHASSIS TUNNEL	11C0237CP CLAMP - CHASSIS TUNNEL Row ID: ID__11C0237CP_ContPgHS;	-	2	Enquire
028	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	-	Enquire
029	00RA580	SCREW - M6X1X16	00RA580 SCREW - M6X1X16 Row ID: ID__00RA580_ContPgHS;	-	-	Enquire
030	14C0065CP	BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH	14C0065CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - LH Row ID: ID__14C0065CP_ContPgHS;	-	1	Enquire
031	14C0067CP	BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH	14C0067CP BRAKE PIPE - FRAME TO BRAKE HOSE - REAR - RH Row ID: ID__14C0067CP_ContPgHS;	-	1	Enquire
032	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	-	Enquire
033	14CA077CP	BRACKET - BRAKE PIPE - REAR - RH	14CA077CP BRACKET - BRAKE PIPE - REAR - RH Row ID: ID__14CA077CP_ContPgHS;	-	1	Enquire
034	14CA078CP	BRACKET - BRAKE PIPE - REAR - LH	14CA078CP BRACKET - BRAKE PIPE - REAR - LH Row ID: ID__14CA078CP_ContPgHS;	-	1	Enquire
035	ZZUA003QP	M6 K NUT WITH WASHER	ZZUA003QP M6 K NUT WITH WASHER Row ID: ID__ZZUA003QP_ContPgHS;	-	-	Enquire
036	15CA137RP	PIPE BRAKE ABS MOD HOSE RR LH	15CA137RP PIPE BRAKE ABS MOD HOSE RR LH Row ID: ID__15CA137RP_ContPgHS;	-	1	Enquire
036	15CA067RP	PIPE-BRAKE-ABS MOD-HOSE-RR-LH	15CA067RP PIPE-BRAKE-ABS MOD-HOSE-RR-LH Row ID: ID__15CA067RP_ContPgHS;	-	1	Enquire
037	15CA138RP	PIPE BRAKE ABS MOD HOSE RR RH	15CA138RP PIPE BRAKE ABS MOD HOSE RR RH Row ID: ID__15CA138RP_ContPgHS;	-	1	Enquire
037	15CA069RP	PIPE BRAKE ABS MOD HOSE RR-RH	15CA069RP PIPE BRAKE ABS MOD HOSE RR-RH Row ID: ID__15CA069RP_ContPgHS;	-	1	Enquire
038	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
039	15CA063RP	HOSE BRAKE CCM RR	15CA063RP HOSE BRAKE CCM RR Row ID: ID__15CA063RP_ContPgHS;	-	-	Enquire
040	15CA055RP	PIPE-BRAKE-TMC-ABS MOD-PRIM-LH	15CA055RP PIPE-BRAKE-TMC-ABS MOD-PRIM-LH Row ID: ID__15CA055RP_ContPgHS;	-	1	Enquire
041	15CA057RP	PIPE-BRAKE-TMC-ABS MOD-SECND-L	15CA057RP PIPE-BRAKE-TMC-ABS MOD-SECND-L Row ID: ID__15CA057RP_ContPgHS;	-	1	Enquire
