18 - BRAKES - 18.6 - BRAKE DISC COOLING REAR of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 18 - BRAKES - 18.6 - BRAKE DISC COOLING REAR

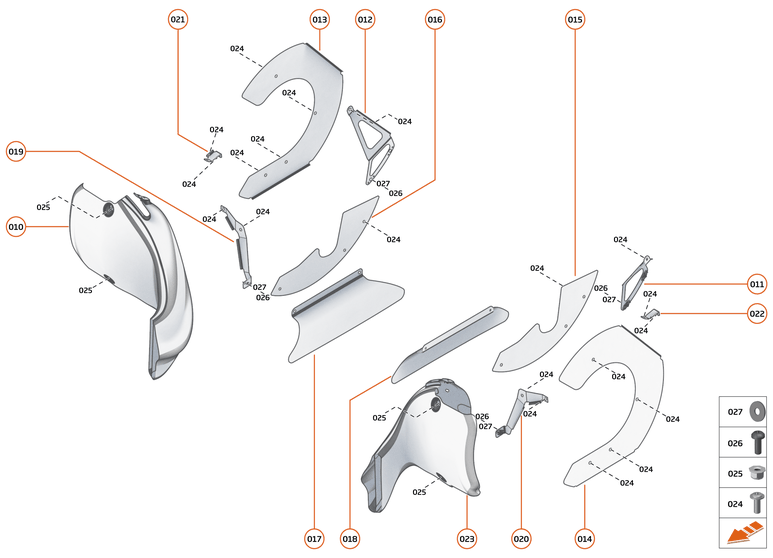

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15CA098RP	ASSY INLET DUCT RBD RH	15CA098RP ASSY INLET DUCT RBD RH Row ID: ID__15CA098RP_ContPgHS;	-	1	Enquire
011	15CA087RP	ASSY SUPPORT LEG TWIN RBD LH	15CA087RP ASSY SUPPORT LEG TWIN RBD LH Row ID: ID__15CA087RP_ContPgHS;	-	1	Enquire
012	15CA096RP	ASSY SUPPORT LEG TWIN RBD RH	15CA096RP ASSY SUPPORT LEG TWIN RBD RH Row ID: ID__15CA096RP_ContPgHS;	-	1	Enquire
013	15CA151RP	PLATE BACKING BRAKE DUCT RR RH	15CA151RP PLATE BACKING BRAKE DUCT RR RH Row ID: ID__15CA151RP_ContPgHS;	-	1	Enquire
014	15BA131RP	PLATE BACKING BRAKE DUCT RR LH	15BA131RP PLATE BACKING BRAKE DUCT RR LH Row ID: ID__15BA131RP_ContPgHS;	-	1	Enquire
014	15CA154RP	PLATE BACKING BRAKE DUCT RR LH	15CA154RP PLATE BACKING BRAKE DUCT RR LH Row ID: ID__15CA154RP_ContPgHS;	-	1	Enquire
015	15CA120RP	DEFLECTOR PLATE RBD LH	15CA120RP DEFLECTOR PLATE RBD LH Row ID: ID__15CA120RP_ContPgHS;	-	1	Enquire
016	15CA121RP	DEFLECTOR PLATE RBD RH	15CA121RP DEFLECTOR PLATE RBD RH Row ID: ID__15CA121RP_ContPgHS;	-	1	Enquire
017	15CA123RP	TURNING VANE RBD RH	15CA123RP TURNING VANE RBD RH Row ID: ID__15CA123RP_ContPgHS;	-	1	Enquire
018	15CA122RP	TURNING VANE RBD LH	15CA122RP TURNING VANE RBD LH Row ID: ID__15CA122RP_ContPgHS;	-	1	Enquire
019	15CA092RP	ASSY SUPPORT LEG SINGLE RBD RH	15CA092RP ASSY SUPPORT LEG SINGLE RBD RH Row ID: ID__15CA092RP_ContPgHS;	-	1	Enquire
020	15CA088RP	ASSY SUPPORT LEG SINGLE RBD LH	15CA088RP ASSY SUPPORT LEG SINGLE RBD LH Row ID: ID__15CA088RP_ContPgHS;	-	1	Enquire
021	15CA127RP	CALIPER BRACKET RBD RH	15CA127RP CALIPER BRACKET RBD RH Row ID: ID__15CA127RP_ContPgHS;	-	1	Enquire
022	15CA126RP	CALIPER BRACKET RBD LH	15CA126RP CALIPER BRACKET RBD LH Row ID: ID__15CA126RP_ContPgHS;	-	1	Enquire
023	15CA097RP	ASSY INLET DUCT RBD LH	15CA097RP ASSY INLET DUCT RBD LH Row ID: ID__15CA097RP_ContPgHS;	-	1	Enquire
024	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	12	Enquire
025	15CA136RP	K NUT M5 X 0.8	15CA136RP K NUT M5 X 0.8 Row ID: ID__15CA136RP_ContPgHS;	-	-	Enquire
026	00RA521	SCREW - BUTTON HEAD - HEX - M5X16-10.9-86	00RA521 SCREW - BUTTON HEAD - HEX - M5X16-10.9-86 Row ID: ID__00RA521_ContPgHS;	-	-	Enquire
027	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	2	Enquire
