18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM

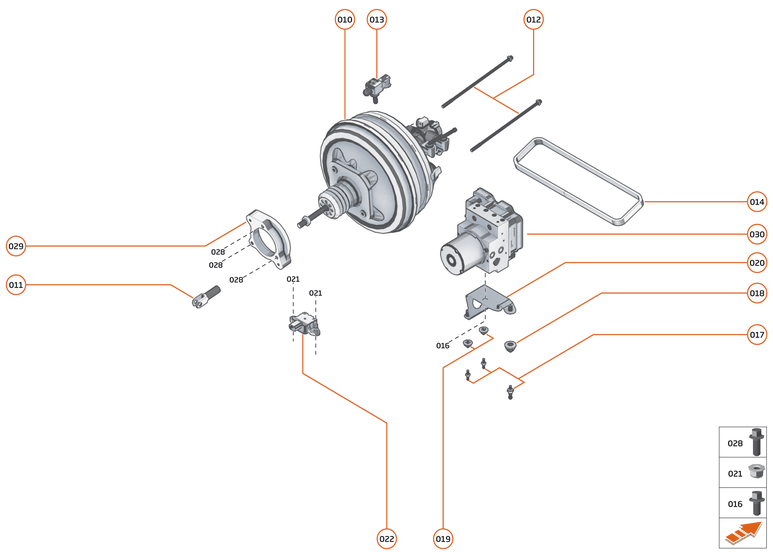

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15CA112CP	BRAKE BOOSTER - INC MASTER CYLINDER	15CA112CP BRAKE BOOSTER - INC MASTER CYLINDER Row ID: ID__15CA112CP_ContPgHS;	-	1	Enquire
011	12C0306CP	EXTENSION ROD - BRAKE BOOSTER	12C0306CP EXTENSION ROD - BRAKE BOOSTER Row ID: ID__12C0306CP_ContPgHS;	-	1	Enquire
012	12C0308CP	BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET	12C0308CP BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET Row ID: ID__12C0308CP_ContPgHS;	-	2	Enquire
013	13M0801CP	VACUUM SENSOR WITH CHECK VALVE	13M0801CP VACUUM SENSOR WITH CHECK VALVE Row ID: ID__13M0801CP_ContPgHS;	-	1	Enquire
014	11AA035CP	FOAM GASKET - FRONT DUCT - END	11AA035CP FOAM GASKET - FRONT DUCT - END Row ID: ID__11AA035CP_ContPgHS;	-	1	Enquire
015	00RA360	STUD BALL - M6X19	00RA360 STUD BALL - M6X19 Row ID: ID__00RA360_ContPgHS;	-	1	Enquire
016	00RA573	BOLT - M10X1 - HEX	00RA573 BOLT - M10X1 - HEX Row ID: ID__00RA573_ContPgHS;	-	1	Enquire
017	00RA585	STUD BALL - M6X9	00RA585 STUD BALL - M6X9 Row ID: ID__00RA585_ContPgHS;	-	2	Enquire
018	00RB184	CLIP - SNAPLOC - 18X10	00RB184 CLIP - SNAPLOC - 18X10 Row ID: ID__00RB184_ContPgHS;	-	1	Enquire
019	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID__00RB187_ContPgHS;	-	2	Enquire
020	15CA049RP	BRKT-ABS-MODULATOR	15CA049RP BRKT-ABS-MODULATOR Row ID: ID__15CA049RP_ContPgHS;	-	1	Enquire
021	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
022	15MA186CP	SENSOR - YAW RATE	15MA186CP SENSOR - YAW RATE Row ID: ID__15MA186CP_ContPgHS;	-	1	Enquire
022	12M0594CP	SENSOR - YAW RATE	12M0594CP SENSOR - YAW RATE Row ID: ID__12M0594CP_ContPgHS;	-	1	Enquire
028	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS;	-	3	Enquire
029	12C0290CP	BRACKET - BRAKE BOOSTER MOUNTING	12C0290CP BRACKET - BRAKE BOOSTER MOUNTING Row ID: ID__12C0290CP_ContPgHS;	-	1	Enquire
030	13C0205CP	ABS MODULATOR 46 PIN EUCON - PRE-FILLED	13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED Row ID: ID__13C0205CP_ContPgHS;	-	-	Enquire
