14 - WIPERS AND WASHER SYSTEM - 14.1 - WASHER SYSTEM of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 14 - WIPERS AND WASHER SYSTEM - 14.1 - WASHER SYSTEM

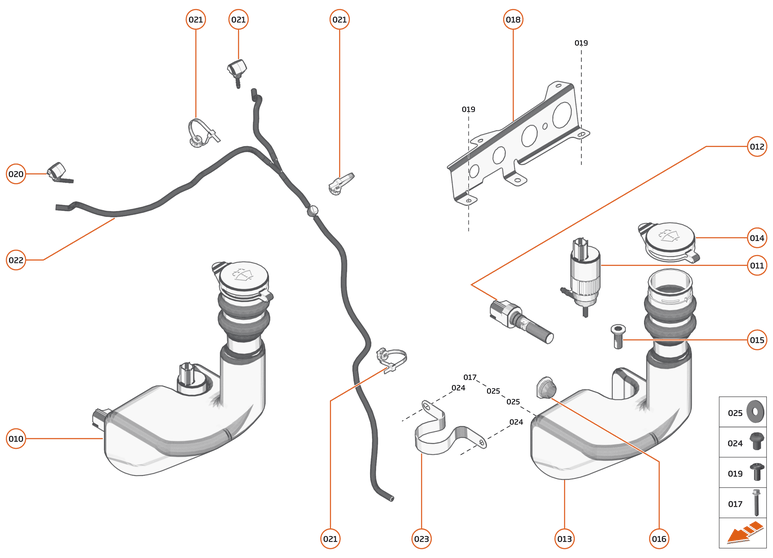

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AA056CP	ASSY WASHER BOTTLE - COMPLETE - BOTTLE	15AA056CP ASSY WASHER BOTTLE - COMPLETE - BOTTLE Row ID: ID__15AA056CP_ContPgHS;	-	1	Enquire
011	11A0247CP	Pump - Windscreen Wash	11A0247CP Pump - Windscreen Wash Row ID: ID__11A0247CP_ContPgHS;	-	1	Enquire
012	11M0012CP	Sensor - Washer Bottle - Fluid Level	11M0012CP Sensor - Washer Bottle - Fluid Level Row ID: ID__11M0012CP_ContPgHS;	-	1	Enquire
013	15AC162CP	WASHER - BOTTLE	15AC162CP WASHER - BOTTLE Row ID: ID__15AC162CP_ContPgHS;	-	1	Enquire
014	11A0252CP	Cap - Washer Bottle	11A0252CP Cap - Washer Bottle Row ID: ID__11A0252CP_ContPgHS;	-	1	Enquire
015	11A0249CP	WASHER BOTTLE-GROMMET-PUMP	11A0249CP WASHER BOTTLE-GROMMET-PUMP Row ID: ID__11A0249CP_ContPgHS;	$16.22	1
016	11A0251CP	Grommet - Washer Bottle - Fluid Level Sensor	11A0251CP Grommet - Washer Bottle - Fluid Level Sensor Row ID: ID__11A0251CP_ContPgHS;	-	1	Enquire
017	00RA201	BOLT - M5X0.8X30 - HEX	00RA201 BOLT - M5X0.8X30 - HEX Row ID: ID__00RA201_ContPgHS;	-	1	Enquire
018	15AB059CP	HOSE - SUPPORT - SYSTEM	15AB059CP HOSE - SUPPORT - SYSTEM Row ID: ID__15AB059CP_ContPgHS;	-	1	Enquire
019	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	2	Enquire
020	15AD122CP	WINDSCREEN WASHER JET LH	15AD122CP WINDSCREEN WASHER JET LH Row ID: ID__15AD122CP_ContPgHS;	-	1	Enquire
021	15AD123CP	WINDSCREEN WASHER JET RH	15AD123CP WINDSCREEN WASHER JET RH Row ID: ID__15AD123CP_ContPgHS;	-	1	Enquire
021	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	3	Enquire
022	15AC223CP	HOSE - WASHER	15AC223CP HOSE - WASHER Row ID: ID__15AC223CP_ContPgHS;	-	1	Enquire
022	15AD291CP	ASSY WASHER HOSE	15AD291CP ASSY WASHER HOSE Row ID: ID__15AD291CP_ContPgHS;	-	1	Enquire
023	15AB534CP	BRAKCET - WASHER BOTTLE	15AB534CP BRAKCET - WASHER BOTTLE Row ID: ID__15AB534CP_ContPgHS;	-	1	Enquire
024	00RA142	SCREW - M6X8 - BUTTON	00RA142 SCREW - M6X8 - BUTTON Row ID: ID__00RA142_ContPgHS;	-	2	Enquire
025	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	2	Enquire
