10 - CLOSURES ANCILLARIES - 10.1 - DOOR LATCH of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 10 - CLOSURES ANCILLARIES - 10.1 - DOOR LATCH

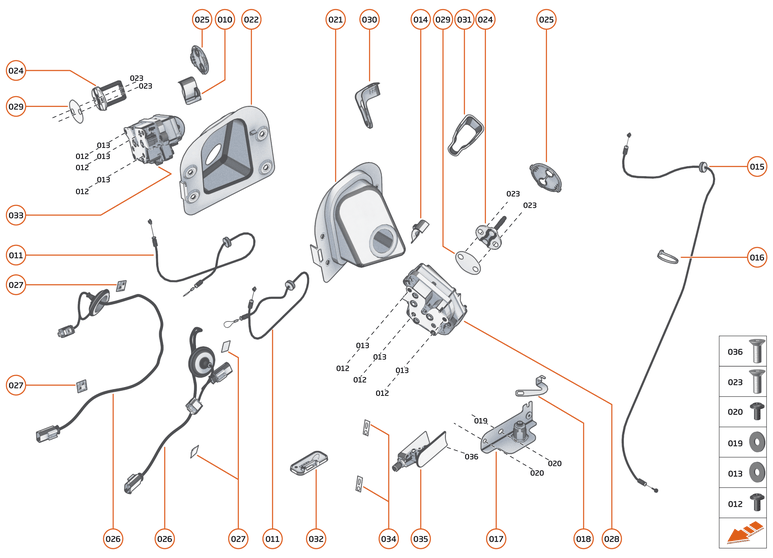

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AC143CP	CAP - DOOR RELEASE CABLE - RH	15AC143CP CAP - DOOR RELEASE CABLE - RH Row ID: ID__15AC143CP_ContPgHS;	-	1	Enquire
011	15AC144CP	CABLE RELEASE - INTERNAL - DOOR LATCH	15AC144CP CABLE RELEASE - INTERNAL - DOOR LATCH Row ID: ID__15AC144CP_ContPgHS;	-	1	Enquire
012	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	3	Enquire
013	00RC062	WASHER - M6 - SERRATED	00RC062 WASHER - M6 - SERRATED Row ID: ID__00RC062_ContPgHS;	-	3	Enquire
014	15AC155CP	CAP - DOOR RELEASE CABLE - LH	15AC155CP CAP - DOOR RELEASE CABLE - LH Row ID: ID__15AC155CP_ContPgHS;	-	1	Enquire
015	15AC142CP	CABLE RELEASE - EXTERNAL - DOOR LATCH	15AC142CP CABLE RELEASE - EXTERNAL - DOOR LATCH Row ID: ID__15AC142CP_ContPgHS;	-	1	Enquire
016	00RL012	CABLE TIE - 300X4.6MM	00RL012 CABLE TIE - 300X4.6MM Row ID: ID__00RL012_ContPgHS;	-	2	Enquire
019	00RC016	WASHER - M6X12.5X1.8	00RC016 WASHER - M6X12.5X1.8 Row ID: ID__00RC016_ContPgHS;	-	1	Enquire
020	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	3	Enquire
021	15AD238CP	PNL LATCH COVER LH	15AD238CP PNL LATCH COVER LH Row ID: ID__15AD238CP_ContPgHS;	-	1	Enquire
021	14AB555CP	ASSY - LATCH COVER - LH	14AB555CP ASSY - LATCH COVER - LH Row ID: ID__14AB555CP_ContPgHS;	-	1	Enquire
022	15AD239CP	PNL LATCH COVER RH	15AD239CP PNL LATCH COVER RH Row ID: ID__15AD239CP_ContPgHS;	-	1	Enquire
023	00RA747	SCREW - CSK-TX - M8X1.25X20-10.9	00RA747 SCREW - CSK-TX - M8X1.25X20-10.9 Row ID: ID__00RA747_ContPgHS;	-	-	Enquire
023	00RA551	SCREW - COUNTERSUNK - HEX - M8X16	00RA551 SCREW - COUNTERSUNK - HEX - M8X16 Row ID: ID__00RA551_ContPgHS;	-	2	Enquire
024	14AC217CP	DOOR STRIKER	14AC217CP DOOR STRIKER Row ID: ID__14AC217CP_ContPgHS;	-	1	Enquire
024	14A1871CP	DOOR STRIKER	14A1871CP DOOR STRIKER Row ID: ID__14A1871CP_ContPgHS;	-	1	Enquire
025	15AD174CP	MLDG DOOR STRIKER	15AD174CP MLDG DOOR STRIKER Row ID: ID__15AD174CP_ContPgHS;	-	1	Enquire
025	14A3218CP	MOULDING - DOOR STRIKER	14A3218CP MOULDING - DOOR STRIKER Row ID: ID__14A3218CP_ContPgHS;	-	1	Enquire
026	15MA596CP	P15 LATCH FLY LEAD	15MA596CP P15 LATCH FLY LEAD Row ID: ID__15MA596CP_ContPgHS;	-	-	Enquire
027	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C Row ID: ID__00RL009_ContPgHS;	-	2	Enquire
028	15AC863CP	DOOR LATCH - SOFT CLOSE - RH	15AC863CP DOOR LATCH - SOFT CLOSE - RH Row ID: ID__15AC863CP_ContPgHS;	-	1	Enquire
029	13AA994CP	DOOR STRIKER - SHIM - 1MM	13AA994CP DOOR STRIKER - SHIM - 1MM Row ID: ID__13AA994CP_ContPgHS;	-	2	Enquire
030	14AA548CP	DOOR LATCH ESCUTCHEON - LH	14AA548CP DOOR LATCH ESCUTCHEON - LH Row ID: ID__14AA548CP_ContPgHS;	-	1	Enquire
031	14AA546CP	DOOR LATCH ESCUTCHEON - RH	14AA546CP DOOR LATCH ESCUTCHEON - RH Row ID: ID__14AA546CP_ContPgHS;	-	1	Enquire
032	14AC550CP	DOOR RELEASE - MANUAL KEY HOLDER	14AC550CP DOOR RELEASE - MANUAL KEY HOLDER Row ID: ID__14AC550CP_ContPgHS;	-	1	Enquire
033	15AA294RP	LATCH DOOR POWER CLOSE -RH	15AA294RP LATCH DOOR POWER CLOSE -RH Row ID: ID__15AA294RP_ContPgHS;	-	1	Enquire
034	00RL014	TIE WRAP BLOCK - 25*13 - TC105A	00RL014 TIE WRAP BLOCK - 2513 - TC105A Row ID: ID__00RL014_ContPgHS;*	-	-	Enquire
035	15AA291RP	ASSY EXT RELEASE HANDLE	15AA291RP ASSY EXT RELEASE HANDLE Row ID: ID__15AA291RP_ContPgHS;	-	-	Enquire
036	00RA635	COUNTERSUNK - TORX HEAD SCREW M5X16	00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Row ID: ID__00RA635_ContPgHS;	-	-	Enquire
