10 - Closures Ancillaries - 10.3 - Side Mirrors

McLaren Ultimate Series McLaren Senna GTR

Find Your Part

McLaren Ultimate Series McLaren Senna GTR - 10 - CLOSURES ANCILLARIES - 10.3 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

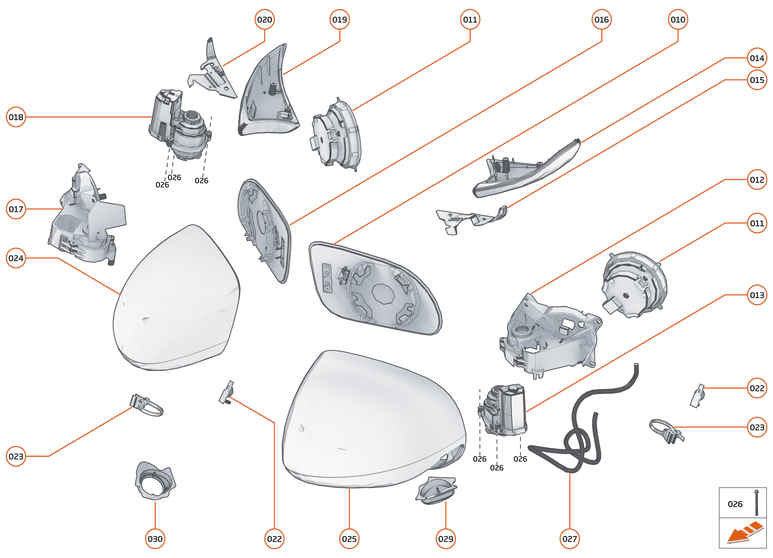

10 - CLOSURES ANCILLARIES - 10.3 - SIDE MIRRORS of McLaren McLaren Ultimate Series McLaren Senna GTR Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH
Row ID: ID__11A8442CP_ContPgHS; 		- - Enquire
010 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH
Row ID: ID__11A8434CP_ContPgHS; 		- 1 Enquire
011 11A8446CP
ACTUATOR - DOOR MIRROR GLASS
Row ID: ID__11A8446CP_ContPgHS; 		- 1 Enquire
012 11A8454CP
FRAME - DOOR MIRROR GLASS - LH
Row ID: ID__11A8454CP_ContPgHS; 		- 1 Enquire
013 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH
Row ID: ID__11A8456CP_ContPgHS; 		- 1 Enquire
014 14A4331CP
SCALP - DOOR MIRROR - LOWER - LH
Row ID: ID__14A4331CP_ContPgHS; 		- 1 Enquire
014 14A4341CP
SCALP - DOOR MIRROR - LOWER - LH - CAMERA
Row ID: ID__14A4341CP_ContPgHS; 		- 1 Enquire
015 14AA715CP
SCALP - REINFORCEMENT - LH
Row ID: ID__14AA715CP_ContPgHS; 		- 1 Enquire
016 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH
Row ID: ID__11A8430CP_ContPgHS; 		- - Enquire
016 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH
Row ID: ID__11A8426CP_ContPgHS; 		- 1 Enquire
016 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH
Row ID: ID__11A8422CP_ContPgHS; 		- 1 Enquire
017 15AB956CP
FRAME - DOOR MIRROR GLASS - RH
Row ID: ID__15AB956CP_ContPgHS; 		- 1 Enquire
017 11A8453CP
FRAME - DOOR MIRROR GLASS - RH
Row ID: ID__11A8453CP_ContPgHS; 		- 1 Enquire
018 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH
Row ID: ID__11A8455CP_ContPgHS; 		- 1 Enquire
019 14A4329CP
SCALP - DOOR MIRROR - LOWER - RH
Row ID: ID__14A4329CP_ContPgHS; 		- 1 Enquire
020 14AA673CP
SCALP - REINFORCEMENT - RH
Row ID: ID__14AA673CP_ContPgHS; 		- 1 Enquire
022 00RB059
CLIP CONNECTOR - TRW
Row ID: ID__00RB059_ContPgHS; 		- 2 Enquire
023 00RL011
EDGE CLIP - 202X4.6MM
Row ID: ID__00RL011_ContPgHS; 		- 2 Enquire
024 14AB092CP
SCALP - DOOR MIRROR - CARBON - RH
Row ID: ID__14AB092CP_ContPgHS; 		- 1 Enquire
025 14AB091CP
SCALP - DOOR MIRROR - CARBON - LH
Row ID: ID__14AB091CP_ContPgHS; 		- 1 Enquire
026 00RA632
SCR-CSK-TX-M4X0.7X35-10.9-80
Row ID: ID__00RA632_ContPgHS; 		- - Enquire
027 15AC078CP
HARNESS - DOOR MIRROR - LH
Row ID: ID__15AC078CP_ContPgHS; 		- 1 Enquire
029 14A4484CP
CAMERA BEZEL LH - DOOR MIR
Row ID: ID__14A4484CP_ContPgHS; 		- - Enquire
030 14A4486CP
CAMERA BEZEL RH - DOOR MIR
Row ID: ID__14A4486CP_ContPgHS; 		- - Enquire
