10 - CLOSURES ANCILLARIES - 10.4 - CLOSURES SEALS of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 10 - CLOSURES ANCILLARIES - 10.4 - CLOSURES SEALS

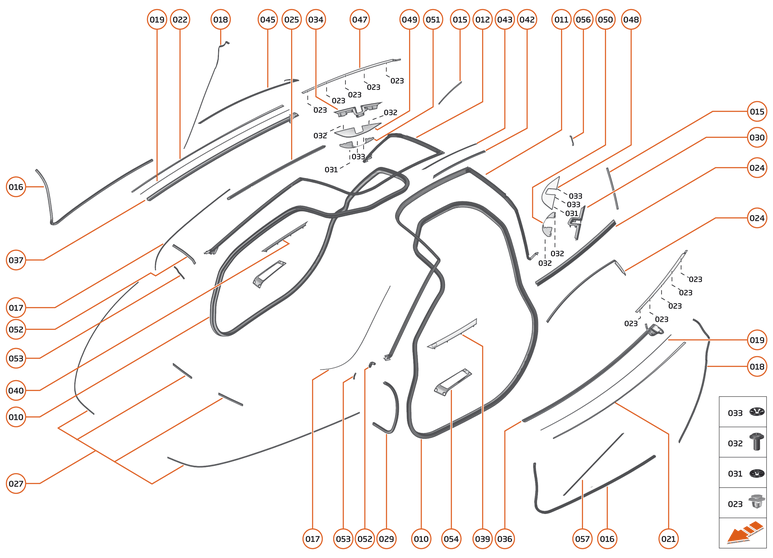

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AC659CP	SEAL - DOOR - PRIMARY	14AC659CP SEAL - DOOR - PRIMARY Row ID: ID__14AC659CP_ContPgHS;	-	1	Enquire
011	15AA379CP	SEAL - DOOR - SECONDARY - UPPER LH	15AA379CP SEAL - DOOR - SECONDARY - UPPER LH Row ID: ID__15AA379CP_ContPgHS;	-	1	Enquire
012	15AA381CP	SEAL - DOOR - SECONDARY - UPPER RH	15AA381CP SEAL - DOOR - SECONDARY - UPPER RH Row ID: ID__15AA381CP_ContPgHS;	-	1	Enquire
015	15AB215CP	SEAL - DOOR - B-PILLAR	15AB215CP SEAL - DOOR - B-PILLAR Row ID: ID__15AB215CP_ContPgHS;	-	2	Enquire
016	15AB218CP	SEAL - DOOR - A-POST TO - WHEEL ARCH LINER	15AB218CP SEAL - DOOR - A-POST TO - WHEEL ARCH LINER Row ID: ID__15AB218CP_ContPgHS;	-	2	Enquire
017	14AB162CP	SEAL - A-PILLAR - WINDSCREEN	14AB162CP SEAL - A-PILLAR - WINDSCREEN Row ID: ID__14AB162CP_ContPgHS;	-	1	Enquire
018	15AB508CP	SEAL - DOP TO - REAR FENDER	15AB508CP SEAL - DOP TO - REAR FENDER Row ID: ID__15AB508CP_ContPgHS;	-	2	Enquire
019	13A7254GP	FOAM SEAL - CANTRAIL CARRIER - GT	13A7254GP FOAM SEAL - CANTRAIL CARRIER - GT Row ID: ID__13A7254GP_ContPgHS;	-	1	Enquire
021	15AA410CP	FINISHER - DOOR WAIST - LH - GB (GLOSS BLACK)	15AA410CP FINISHER - DOOR WAIST - LH - GB (GLOSS BLACK) Row ID: ID__15AA410CP_ContPgHS;	-	1	Enquire
022	15AA414CP	FINISHER - DOOR WAIST - RH - GB (GLOSS BLACK)	15AA414CP FINISHER - DOOR WAIST - RH - GB (GLOSS BLACK) Row ID: ID__15AA414CP_ContPgHS;	-	1	Enquire
023	00RB229	CLIP-PNL-8X0.8-1.6X18-NYL-BLK	00RB229 CLIP-PNL-8X0.8-1.6X18-NYL-BLK Row ID: ID__00RB229_ContPgHS;	-	-	Enquire
023	00RB185	CLIP - CANTRAIL CAPPING PANEL	00RB185 CLIP - CANTRAIL CAPPING PANEL Row ID: ID__00RB185_ContPgHS;	-	-	Enquire
024	15AA418CP	SEAL - WAIST - DOOR - INNER LH	15AA418CP SEAL - WAIST - DOOR - INNER LH Row ID: ID__15AA418CP_ContPgHS;	-	1	Enquire
025	15AA420CP	SEAL - WAIST - DOOR - INNER RH	15AA420CP SEAL - WAIST - DOOR - INNER RH Row ID: ID__15AA420CP_ContPgHS;	-	1	Enquire
027	15AA451CP	SEAL - LOW TEMPERATURE RADIATOR - OUTLET	15AA451CP SEAL - LOW TEMPERATURE RADIATOR - OUTLET Row ID: ID__15AA451CP_ContPgHS;	-	2	Enquire
028	15AB074CP	SEAL - CLAM INNER TO - OUTER	15AB074CP SEAL - CLAM INNER TO - OUTER Row ID: ID__15AB074CP_ContPgHS;	-	2	Enquire
029	11A9876RP	Seal - Wheelhouse Closing - LH	11A9876RP Seal - Wheelhouse Closing - LH Row ID: ID__11A9876RP_ContPgHS;	-	1	Enquire
030	14AA501CP	SEAL - UPPER HINGE - CAPPING - LH	14AA501CP SEAL - UPPER HINGE - CAPPING - LH Row ID: ID__14AA501CP_ContPgHS;	-	1	Enquire
031	00RA427	Starlock - Diameter 6mm Shaft - 8024	00RA427 Starlock - Diameter 6mm Shaft - 8024 Row ID: ID__00RA427_ContPgHS;	-	2	Enquire
032	00RA601	SCREW - M6X1X12	00RA601 SCREW - M6X1X12 Row ID: ID__00RA601_ContPgHS;	-	2	Enquire
033	00RB012	CLIP - 2MM - TRIM PANEL	00RB012 CLIP - 2MM - TRIM PANEL Row ID: ID__00RB012_ContPgHS;	-	1	Enquire
034	14AA503CP	SEAL - UPPER HINGE - CAPPING - RH	14AA503CP SEAL - UPPER HINGE - CAPPING - RH Row ID: ID__14AA503CP_ContPgHS;	-	1	Enquire
036	15AA411CP	SEAL - WAIST - DOOR - OUTER LH	15AA411CP SEAL - WAIST - DOOR - OUTER LH Row ID: ID__15AA411CP_ContPgHS;	-	1	Enquire
037	15AA415CP	SEAL - WAIST - DOOR - OUTER RH	15AA415CP SEAL - WAIST - DOOR - OUTER RH Row ID: ID__15AA415CP_ContPgHS;	-	1	Enquire
039	15AB608CP	SEAL CARRIER - LH	15AB608CP SEAL CARRIER - LH Row ID: ID__15AB608CP_ContPgHS;	-	1	Enquire
040	15AB610CP	SEAL CARRIER - RH	15AB610CP SEAL CARRIER - RH Row ID: ID__15AB610CP_ContPgHS;	-	1	Enquire
041	13A6726CP	FOAM - CANTRAIL SEAL CARRIER	13A6726CP FOAM - CANTRAIL SEAL CARRIER Row ID: ID__13A6726CP_ContPgHS;	-	1	Enquire
042	14AB157CP	SEAL - DOOR TO ROOF - INNER - LH	14AB157CP SEAL - DOOR TO ROOF - INNER - LH Row ID: ID__14AB157CP_ContPgHS;	-	1	Enquire
043	14AB158CP	SEAL - DOOR TO ROOF - INNER - RH	14AB158CP SEAL - DOOR TO ROOF - INNER - RH Row ID: ID__14AB158CP_ContPgHS;	-	1	Enquire
044	14A4225CP	SEAL - DOOR GLASS - UPPER - LH	14A4225CP SEAL - DOOR GLASS - UPPER - LH Row ID: ID__14A4225CP_ContPgHS;	-	1	Enquire
045	14A4227CP	SEAL - DOOR GLASS - UPPER - RH	14A4227CP SEAL - DOOR GLASS - UPPER - RH Row ID: ID__14A4227CP_ContPgHS;	-	1	Enquire
046	15AC889CP	FINISHER REAR WAIST LH	15AC889CP FINISHER REAR WAIST LH Row ID: ID__15AC889CP_ContPgHS;	-	1	Enquire
046	15AA422CP	FINISHER - WAIST - REAR - LH - GLOSS BLACK	15AA422CP FINISHER - WAIST - REAR - LH - GLOSS BLACK Row ID: ID__15AA422CP_ContPgHS;	-	1	Enquire
047	15AC890CP	FINISHER REAR WAIST RH	15AC890CP FINISHER REAR WAIST RH Row ID: ID__15AC890CP_ContPgHS;	-	1	Enquire
047	15AA426CP	FINISHER - WAIST - REAR - RH - GLOSS BLACK	15AA426CP FINISHER - WAIST - REAR - RH - GLOSS BLACK Row ID: ID__15AA426CP_ContPgHS;	-	1	Enquire
048	14AC496CP	COVER - UPPER DOOR HINGE - LH	14AC496CP COVER - UPPER DOOR HINGE - LH Row ID: ID__14AC496CP_ContPgHS;	-	1	Enquire
049	14AC497CP	COVER - UPPER DOOR HINGE - RH	14AC497CP COVER - UPPER DOOR HINGE - RH Row ID: ID__14AC497CP_ContPgHS;	-	1	Enquire
050	14AC655CP	STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH	14AC655CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH Row ID: ID__14AC655CP_ContPgHS;	-	1	Enquire
051	14AC657CP	STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH	14AC657CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH Row ID: ID__14AC657CP_ContPgHS;	-	1	Enquire
052	15AC861CP	SEAL EXTENSION DOOR A POST TO	15AC861CP SEAL EXTENSION DOOR A POST TO Row ID: ID__15AC861CP_ContPgHS;	-	2	Enquire
053	15AC968CP	SPONGE INSERT OD 10X100MM	15AC968CP SPONGE INSERT OD 10X100MM Row ID: ID__15AC968CP_ContPgHS;	-	2	Enquire
054	15AD221CP	DOOR ACCESS PANEL SEAL LH	15AD221CP DOOR ACCESS PANEL SEAL LH Row ID: ID__15AD221CP_ContPgHS;	-	1	Enquire
055	15AD222CP	DOOR ACCESS PANEL SEAL RH	15AD222CP DOOR ACCESS PANEL SEAL RH Row ID: ID__15AD222CP_ContPgHS;	-	1	Enquire
056	15AD196CP	FOAM QTR PNL	15AD196CP FOAM QTR PNL Row ID: ID__15AD196CP_ContPgHS;	-	1	Enquire
057	15AD250CP	SEAL WAIST FINISHER TO QTR PANEL	15AD250CP SEAL WAIST FINISHER TO QTR PANEL Row ID: ID__15AD250CP_ContPgHS;	-	-	Enquire
