McLaren Ultimate Series McLaren Senna GTR - 11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS

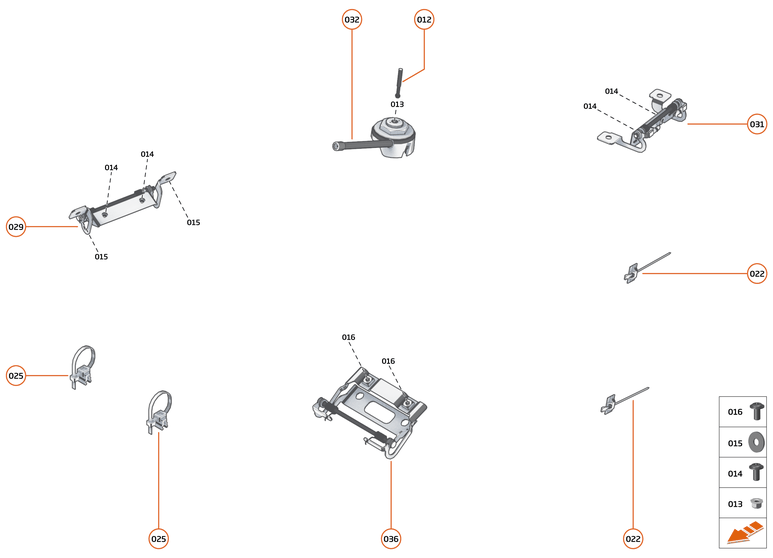

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
012	15AC198CP	STRIKER - OIL FILLER FLAP	15AC198CP STRIKER - OIL FILLER FLAP Row ID: ID__15AC198CP_ContPgHS;	-	1	Enquire
013	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	1	Enquire
014	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	-	Enquire
014	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	-	Enquire
015	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	2	Enquire
016	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	2	Enquire
022	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C Row ID: ID__00RL009_ContPgHS;	-	2	Enquire
025	00RL011	EDGE CLIP - 202X4.6MM	00RL011 EDGE CLIP - 202X4.6MM Row ID: ID__00RL011_ContPgHS;	-	2	Enquire
029	15AC898CP	HINGE - WATER FILLER FLAP	15AC898CP HINGE - WATER FILLER FLAP Row ID: ID__15AC898CP_ContPgHS;	-	1	Enquire
031	15AC897CP	HINGE - OIL FILLER FLAP	15AC897CP HINGE - OIL FILLER FLAP Row ID: ID__15AC897CP_ContPgHS;	-	1	Enquire
031	15AB451CP	HINGE - OIL FILLER FLAP	15AB451CP HINGE - OIL FILLER FLAP Row ID: ID__15AB451CP_ContPgHS;	-	1	Enquire
032	15AC708CP	LATCH - OIL FILLER FLAP	15AC708CP LATCH - OIL FILLER FLAP Row ID: ID__15AC708CP_ContPgHS;	-	1	Enquire
032	15AC389CP	LATCH - OIL FILLER - FLAP	15AC389CP LATCH - OIL FILLER - FLAP Row ID: ID__15AC389CP_ContPgHS;	-	1	Enquire
036	15AD108CP	HINGE - SERVICE COVER	15AD108CP HINGE - SERVICE COVER Row ID: ID__15AD108CP_ContPgHS;	-	1	Enquire
036	15AC670CP	HINGE - SERVICE COVER	15AC670CP HINGE - SERVICE COVER Row ID: ID__15AC670CP_ContPgHS;	-	1	Enquire
