McLaren Ultimate Series McLaren Senna - 32 - HVAC - 32.2 - HVAC FLUIDS CIRCUIT

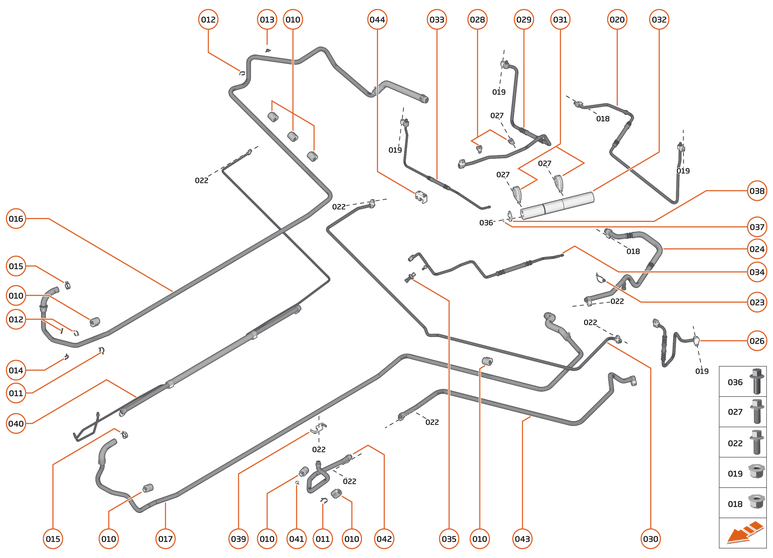

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA367	PIPE PROTECTOR - 19MM ID	00RA367 PIPE PROTECTOR - 19MM ID Row ID: ID_EEBT0201_00RA367_ContPgHS;	-	8	Enquire
011	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID_EEBT0202_00RB007_ContPgHS;	-	2	Enquire
012	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID_EEBT0203_00RB008_ContPgHS;	-	3	Enquire
013	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM Row ID: ID_EEBT0204_00RB019_ContPgHS;	-	1	Enquire
014	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID_EEBT0205_00RB032_ContPgHS;	-	1	Enquire
015	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID_EEBT0206_00RB202_ContPgHS;	-	2	Enquire
016	14A4228CP	HOSE - HEATER TO PUMP - HVAC	14A4228CP HOSE - HEATER TO PUMP - HVAC Row ID: ID_EEBT0207_14A4228CP_ContPgHS;	-	1	Enquire
017	14A1799CP	HOSE - HEATER TO ENGINE - HVAC	14A1799CP HOSE - HEATER TO ENGINE - HVAC Row ID: ID_EEBT0208_14A1799CP_ContPgHS;	-	1	Enquire
018	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_EEBT0209_00RA011_ContPgHS;	-	2	Enquire
019	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID_EEBT0210_00RA075_ContPgHS;	-	4	Enquire
020	15A0146CP	HOSE - COMPRESSOR TO CONDENSOR - 134A	15A0146CP HOSE - COMPRESSOR TO CONDENSOR - 134A Row ID: ID_EEBT0212_15A0146CP_ContPgHS;	-	1	Enquire
020	15A0145CP	HOSE - COMPRESSOR TO CONDENSOR	15A0145CP HOSE - COMPRESSOR TO CONDENSOR Row ID: ID_EEBT0211_15A0145CP_ContPgHS;	-	1	Enquire
022	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID_EEBT0213_00RA120_ContPgHS;	-	7	Enquire
023	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_EEBT0214_00RL001_ContPgHS;	-	1	Enquire
024	14AB753CP	HOSE - HVAC COMPRESSOR - REAR - R134A	14AB753CP HOSE - HVAC COMPRESSOR - REAR - R134A Row ID: ID_EEBT0216_14AB753CP_ContPgHS;	-	1	Enquire
024	14AB752CP	HOSE - COMPRESSOR - REAR - R1234YF	14AB752CP HOSE - COMPRESSOR - REAR - R1234YF Row ID: ID_EEBT0215_14AB752CP_ContPgHS;	-	1	Enquire
026	15A0147CP	HOSE - CONDENSOR LATERAL - LH	15A0147CP HOSE - CONDENSOR LATERAL - LH Row ID: ID_EEBT0217_15A0147CP_ContPgHS;	-	1	Enquire
027	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EEBT0218_00RA313_ContPgHS;	-	3	Enquire
028	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6 Row ID: ID_EEBT0219_00RB027_ContPgHS;	-	2	Enquire
029	15A0148CP	HOSE - CONDENSOR LATERAL - RH	15A0148CP HOSE - CONDENSOR LATERAL - RH Row ID: ID_EEBT0220_15A0148CP_ContPgHS;	-	1	Enquire
030	15AB472CP	HOSE - CONDENSOR LATERAL - CENTRE	15AB472CP HOSE - CONDENSOR LATERAL - CENTRE Row ID: ID_EEBT0221_15AB472CP_ContPgHS;	-	1	Enquire
031	00RB029	P CLIP - DIA 45-M6	00RB029 P CLIP - DIA 45-M6 Row ID: ID_EEBT0222_00RB029_ContPgHS;	-	2	Enquire
032	12A2757CP	RECEIVER DRIER - HVAC	12A2757CP RECEIVER DRIER - HVAC Row ID: ID_EEBT0223_12A2757CP_ContPgHS;	-	1	Enquire
033	15A0149CP	HOSE - CONDENSER TO RECIEVER DRIER	15A0149CP HOSE - CONDENSER TO RECIEVER DRIER Row ID: ID_EEBT0224_15A0149CP_ContPgHS;	-	1	Enquire
034	13A4104CP	HOSE - RECEIVER DRIER - HVAC - REAR	13A4104CP HOSE - RECEIVER DRIER - HVAC - REAR Row ID: ID_EEBT0225_13A4104CP_ContPgHS;	-	1	Enquire
035	11A6627CP	SENSOR - PRESSURE - HVAC	11A6627CP SENSOR - PRESSURE - HVAC Row ID: ID_EEBT0226_11A6627CP_ContPgHS;	-	1	Enquire
036	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_EEBT0227_00RA002_ContPgHS;	-	1	Enquire
037	00RC038	WASHER - WAVE M8	00RC038 WASHER - WAVE M8 Row ID: ID_EEBT0228_00RC038_ContPgHS;	-	1	Enquire
038	11A4433CP	CLAMP PLATE - RECEIVER DRIER - HVAC	11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC Row ID: ID_EEBT0229_11A4433CP_ContPgHS;	-	1	Enquire
039	11A4434CP	CLAMP PLATE - HVAC EVAPORATOR CONNECTION	11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION Row ID: ID_EEBT0230_11A4434CP_ContPgHS;	-	1	Enquire
040	14A3051CP	INTERNAL HEAT EXCHANGER UNIT	14A3051CP INTERNAL HEAT EXCHANGER UNIT Row ID: ID_EEBT0231_14A3051CP_ContPgHS;	-	1	Enquire
041	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID_EEBT0232_00RB045_ContPgHS;	-	1	Enquire
042	13A3307CP	PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER	13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER Row ID: ID_EEBT0233_13A3307CP_ContPgHS;	-	1	Enquire
043	14A1800CP	PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR	14A1800CP PIPE - INTERNAL HEAT EXCHANGER - COMPRESSOR Row ID: ID_EEBT0234_14A1800CP_ContPgHS;	-	1	Enquire
044	14A3034CP	CLIP - HEATER PIPE	14A3034CP CLIP - HEATER PIPE Row ID: ID_EEBT0235_14A3034CP_ContPgHS;	-	1	Enquire
