31 - COOLING SYSTEM - 31.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 31 - COOLING SYSTEM - 31.2 - HIGH TEMP MAIN RADIATORS & FANS

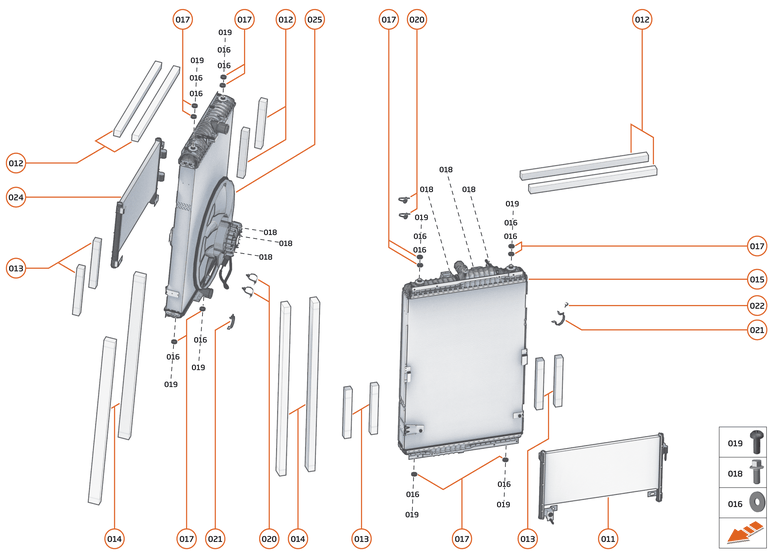

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	11A2859CP	CONDENSER - HVAC - LH	11A2859CP CONDENSER - HVAC - LH Row ID: ID_EEBS0202_11A2859CP_ContPgHS;	-	1	Enquire
012	11L0250CP	SEAL - RADIATOR TO BODY - TOP	11L0250CP SEAL - RADIATOR TO BODY - TOP Row ID: ID_EEBS0203_11L0250CP_ContPgHS;	-	4	Enquire
013	11L0377CP	SEAL - RADIATOR TO CONDENSER	11L0377CP SEAL - RADIATOR TO CONDENSER Row ID: ID_EEBS0204_11L0377CP_ContPgHS;	-	8	Enquire
014	11L0378CP	SEAL - RADIATOR TO BODY - FRONT	11L0378CP SEAL - RADIATOR TO BODY - FRONT Row ID: ID_EEBS0205_11L0378CP_ContPgHS;	-	4	Enquire
015	11L0359CP	RADIATOR - ENGINE COOLANT - RH	11L0359CP RADIATOR - ENGINE COOLANT - RH Row ID: ID_EEBS0201_11L0359CP_ContPgHS;	-	1	Enquire
015	11L0392CP	RADIATOR - ENGINE COOLANT - LH	11L0392CP RADIATOR - ENGINE COOLANT - LH Row ID: ID_EEBS0206_11L0392CP_ContPgHS;	-	1	Enquire
016	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_EEBS0207_00RC043_ContPgHS;	-	12	Enquire
017	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID_EEBS0208_00RG011_ContPgHS;	-	12	Enquire
018	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID_EEBS0209_00RX001_ContPgHS;	-	6	Enquire
019	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID_EEBS0210_00RA353_ContPgHS;	-	8	Enquire
020	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_EEBS0211_00RL001_ContPgHS;	-	4	Enquire
021	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE Row ID: ID_EEBS0212_00RB057_ContPgHS;	-	2	Enquire
024	11A7098CP	CONDENSER - HVAC - RH	11A7098CP CONDENSER - HVAC - RH Row ID: ID_EEBS0215_11A7098CP_ContPgHS;	-	1	Enquire
025	11L0360CP	RADIATOR - ENGINE COOLANT - LH	11L0360CP RADIATOR - ENGINE COOLANT - LH Row ID: ID_EEBS0214_11L0360CP_ContPgHS;	-	1	Enquire
025	11L0376CP	RADIATOR - ENGINE COOLANT - RH	11L0376CP RADIATOR - ENGINE COOLANT - RH Row ID: ID_EEBS0216_11L0376CP_ContPgHS;	-	1	Enquire
