31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 31 - COOLING SYSTEM - 31.4 - LOW TEMPERATURE CIRCUIT & PIPES

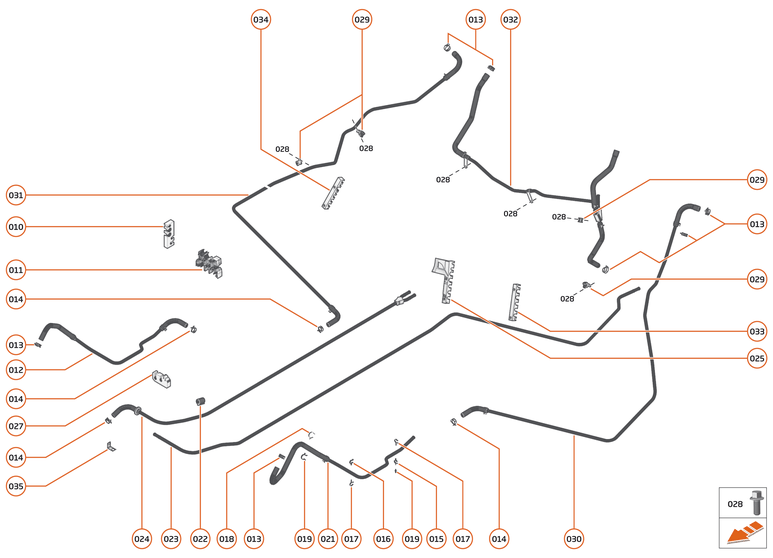

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13L0224CP	PIPE CLIP - 5 WAY	13L0224CP PIPE CLIP - 5 WAY Row ID: ID_EEBS0401_13L0224CP_ContPgHS;	-	1	Enquire
011	14L0125CP	CLIP - TUNNEL - 12 WAY	14L0125CP CLIP - TUNNEL - 12 WAY Row ID: ID_EEBS0402_14L0125CP_ContPgHS;	-	1	Enquire
012	15L0040CP	HOSE - TUNNEL TO LTR	15L0040CP HOSE - TUNNEL TO LTR Row ID: ID_EEBS0403_15L0040CP_ContPgHS;	-	1	Enquire
013	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID_EEBS0404_00RB202_ContPgHS;	-	7	Enquire
014	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12 Row ID: ID_EEBS0405_00RB201_ContPgHS;	-	4	Enquire
015	00RB025	Clip - 13-14mm - Male-Female	00RB025 Clip - 13-14mm - Male-Female Row ID: ID_EEBS0406_00RB025_ContPgHS;	-	1	Enquire
016	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID_EEBS0407_00RB032_ContPgHS;	-	1	Enquire
017	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID_EEBS0408_00RB034_ContPgHS;	-	2	Enquire
018	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID_EEBS0409_00RG018_ContPgHS;	-	1	Enquire
019	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID_EEBS0410_00RG019_ContPgHS;	-	1	Enquire
020	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID_EEBS0411_00RB007_ContPgHS;	-	1	Enquire
021	15LA045CP	HOSE - LTR TO TUNNEL	15LA045CP HOSE - LTR TO TUNNEL Row ID: ID_EEBS0412_15LA045CP_ContPgHS;	-	1	Enquire
022	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID_EEBS0413_00RA357_ContPgHS;	-	1	Enquire
023	14L0068CP	HOSE - LTR CIRCUIT - FEED - CENTRE	14L0068CP HOSE - LTR CIRCUIT - FEED - CENTRE Row ID: ID_EEBS0414_14L0068CP_ContPgHS;	-	1	Enquire
024	14L0069CP	HOSE - LTR CIRCUIT - RETURN - CENTRE	14L0069CP HOSE - LTR CIRCUIT - RETURN - CENTRE Row ID: ID_EEBS0415_14L0069CP_ContPgHS;	-	1	Enquire
025	15LA038CP	CLIP - CHASSIX TUNNES	15LA038CP CLIP - CHASSIX TUNNES Row ID: ID_EEBS0416_15LA038CP_ContPgHS;	-	1	Enquire
027	14LA022CP	CLIP - 4WAY - RH	14LA022CP CLIP - 4WAY - RH Row ID: ID_EEBS0418_14LA022CP_ContPgHS;	-	1	Enquire
028	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EEBS0419_00RA313_ContPgHS;	-	6	Enquire
029	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Row ID: ID_EEBS0420_00RB191_ContPgHS;	-	4	Enquire
030	15L0055CP	HOSE - TUNNEL TO WCAC - LH	15L0055CP HOSE - TUNNEL TO WCAC - LH Row ID: ID_EEBS0421_15L0055CP_ContPgHS;	-	1	Enquire
031	15LA063CP	HOSE - TUNNEL TO WCAC - RH	15LA063CP HOSE - TUNNEL TO WCAC - RH Superseded parts: 15L0057CP; Row ID: ID_EEBS0422_15LA063CP_ContPgHS;	-	1	Enquire
032	15L0059CP	HOSE - WCAC TO PUMP	15L0059CP HOSE - WCAC TO PUMP Row ID: ID_EEBS0423_15L0059CP_ContPgHS;	-	1	Enquire
033	13L0214CP	PIPE CLIP - REAR - LH	13L0214CP PIPE CLIP - REAR - LH Row ID: ID_EEBS0424_13L0214CP_ContPgHS;	-	1	Enquire
034	13L0211CP	PIPE CLIP - REAR - RIGHT	13L0211CP PIPE CLIP - REAR - RIGHT Row ID: ID_EEBS0425_13L0211CP_ContPgHS;	-	1	Enquire
035	15LA049CP	BRACKET - LTR OUTLET HOSE	15LA049CP BRACKET - LTR OUTLET HOSE Row ID: ID_EEBS0426_15LA049CP_ContPgHS;	-	1	Enquire
