McLaren Ultimate Series McLaren Senna - 26 - NVH - HEAT INSULATION - 26.2 - INSULATION - VEHICLE MOUNTED

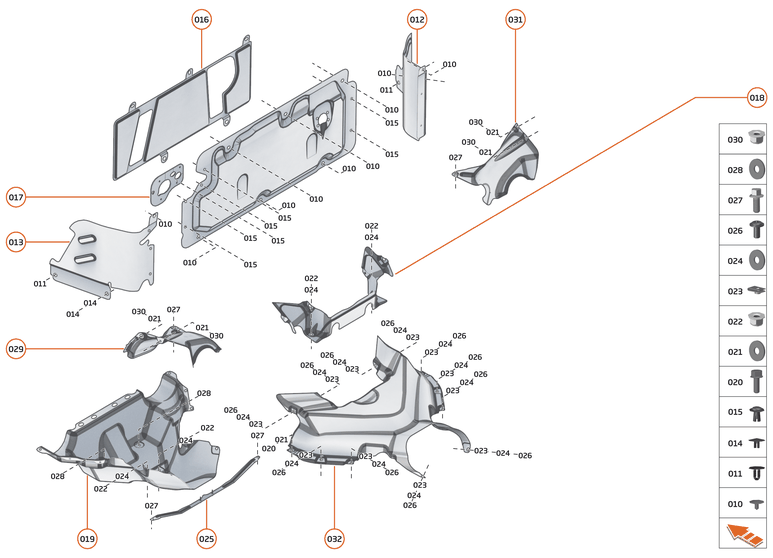

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RG003	FIRTREE 7.2X15X24	00RG003 FIRTREE 7.2X15X24 Row ID: ID_XXXXXXZZ_00RG003_ContPgHS;	-	9	Enquire
011	00RG054	CLIP - FIRTREE - 8X14	00RG054 CLIP - FIRTREE - 8X14 Row ID: ID_XXXXXXZZ_00RG054_ContPgHS;	-	2	Enquire
012	14E0066CP	HEATSHIELD - BULKHEAD - RH	14E0066CP HEATSHIELD - BULKHEAD - RH Row ID: ID_EEBJ0201_14E0066CP_ContPgHS;	-	1	Enquire
013	15EA014CP	HEATSHIELD - BULKHEAD - LH	15EA014CP HEATSHIELD - BULKHEAD - LH Row ID: ID_EEBJ0202_15EA014CP_ContPgHS;	-	1	Enquire
014	00RM005	ANIXTER RIVET - BLACK	00RM005 ANIXTER RIVET - BLACK Row ID: ID_XXXXXXZZ_00RM005_ContPgHS;	-	2	Enquire
015	00RA146	SCRIVET - DIA 8 X 14	00RA146 SCRIVET - DIA 8 X 14 Row ID: ID_XXXXXXZV_00RA146_ContPgHS;	-	7	Enquire
016	14E0074CP	NVH - BULKHEAD - CENTRE	14E0074CP NVH - BULKHEAD - CENTRE Row ID: ID_EEBJ0203_14E0074CP_ContPgHS;	-	1	Enquire
017	14H0083CP	GASKET - BULKHEAD	14H0083CP GASKET - BULKHEAD Row ID: ID_EEBJ0204_14H0083CP_ContPgHS;	-	1	Enquire
018	15EA007CP	HEATSHIELD - MUFFLER - FRONT	15EA007CP HEATSHIELD - MUFFLER - FRONT Row ID: ID_EEBJ0205_15EA007CP_ContPgHS;	-	1	Enquire
019	15EA021CP	HEATSHIELD - MUFFLER - LOWER	15EA021CP HEATSHIELD - MUFFLER - LOWER Row ID: ID_EEBJ0206_15EA021CP_ContPgHS;	-	1	Enquire
020	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID_EEBJ0207_00RX001_ContPgHS;	-	2	Enquire
021	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID_EEBJ0208_00RC077_ContPgHS;	-	6	Enquire
022	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_EEBJ0209_00RA582_ContPgHS;	-	4	Enquire
023	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID_EEBJ0210_00RA301_ContPgHS;	-	10	Enquire
024	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID_EEBJ0211_00RC017_ContPgHS;	-	14	Enquire
025	15EA018CP	BRACKET - MUFFLER - LOWER HEATSHIELD	15EA018CP BRACKET - MUFFLER - LOWER HEATSHIELD Row ID: ID_EEBJ0212_15EA018CP_ContPgHS;	-	1	Enquire
026	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_EEBJ0213_00RA064_ContPgHS;	-	10	Enquire
027	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EEBJ0214_00RA313_ContPgHS;	-	4	Enquire
028	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_EEBJ0215_00RC043_ContPgHS;	-	2	Enquire
029	15EA009CP	AIR GUIDE - FRONT - LH	15EA009CP AIR GUIDE - FRONT - LH Row ID: ID_EEBJ0216_15EA009CP_ContPgHS;	-	1	Enquire
030	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_EEBJ0217_00RA011_ContPgHS;	-	4	Enquire
031	15EA011CP	AIR GUIDE - FRONT - RH	15EA011CP AIR GUIDE - FRONT - RH Row ID: ID_EEBJ0218_15EA011CP_ContPgHS;	-	1	Enquire
032	15EA019CP	HEATSHIELD UPPER - MUFFLER	15EA019CP HEATSHIELD UPPER - MUFFLER Superseded parts: 15EA001CP; Row ID: ID_EEBJ0219_15EA019CP_ContPgHS;	-	1	Enquire
