McLaren Ultimate Series McLaren Senna - 27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

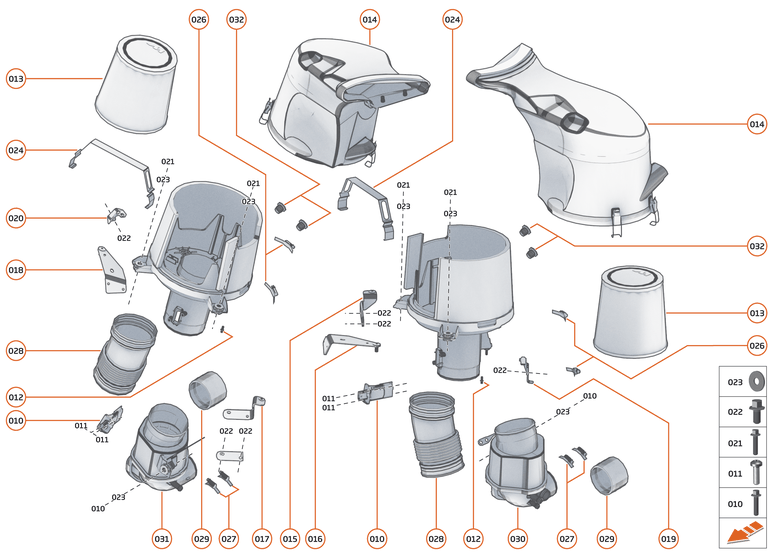

27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM of McLaren McLaren Ultimate Series McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0362CP
SENSOR - MASS AIR FLOW
Row ID: ID_EEBK0101_14F0362CP_ContPgHS; 		- 2 Enquire
011 00RA363
SCREW - TORX - 4X12
Row ID: ID_EEBK0102_00RA363_ContPgHS; 		- 4 Enquire
012 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE
Row ID: ID_EEBK0103_00RG019_ContPgHS; 		- 2 Enquire
013 14F0200CP
FILTER - AIR - ENGINE
Row ID: ID_EEBK0104_14F0200CP_ContPgHS; 		- 2 Enquire
014 15FA346CP
AIR FILTER HOUSING
Row ID: ID_EEBK0105_15FA346CP_ContPgHS; 		- 2 Enquire
015 15FA247CP
BRACKET - AIRBOX TO BULKHEAD - INBOARD LH
Row ID: ID_EEBK0106_15FA247CP_ContPgHS; 		- 1 Enquire
016 15FA257CP
BRACKET - AIRBOX TO BULKHEAD - OUTBOARD LH
Row ID: ID_EEBK0107_15FA257CP_ContPgHS; 		- 1 Enquire
017 15FA248CP
BRACKET - AIRBOX TO BULKHEAD - INBOARD RH
Row ID: ID_EEBK0108_15FA248CP_ContPgHS; 		- 1 Enquire
018 15FA259CP
BRACKET - AIRBOX TO BULKHEAD - OUTBOARD RH
Row ID: ID_EEBK0109_15FA259CP_ContPgHS; 		- 1 Enquire
019 15FA276CP
BRACKET - AIRBOX TO REAR FRAME - LH
Row ID: ID_EEBK0110_15FA276CP_ContPgHS; 		- 1 Enquire
020 15FA345CP
BRACKET - AIRBOX TO REAR FRAME - RH
Row ID: ID_EEBK0111_15FA345CP_ContPgHS; 		- 1 Enquire
021 00RA581
BOLT - HEX HEAD - FLANGE - M6X30
Row ID: ID_EEBK0112_00RA581_ContPgHS; 		- 4 Enquire
022 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID_EAAF0366_00RA313_ContPgHS; 		- 6 Enquire
023 00RC043
WASHER - M6XOD25
Row ID: ID_EEBK0114_00RC043_ContPgHS; 		- 6 Enquire
024 15FA040CP
RETAINER - AIRFILTER
Row ID: ID_EEBK0115_15FA040CP_ContPgHS; 		- 2 Enquire
025 00RX001
BOLT - M5X16 - HEX
Row ID: ID_EEBK0116_00RX001_ContPgHS; 		- 4 Enquire
026 00RB031
CLAMP - HOSE - 90-110
Row ID: ID_EEBK0117_00RB031_ContPgHS; 		- 4 Enquire
027 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO
Row ID: ID_EEBK0118_00RB030_ContPgHS; 		- 4 Enquire
028 15FA028CP
TUBE - CLEAR AIR DUCT
Row ID: ID_EEBK0119_15FA028CP_ContPgHS; 		- 2 Enquire
029 15FA188CP
COUPLING SLEEVE - CLEAN AIR DUCT
Row ID: ID_EEBK0120_15FA188CP_ContPgHS; 		- 2 Enquire
030 15FA192CP
RESONATOR - CLEAN AIR DUCT - LH
Row ID: ID_EEBK0121_15FA192CP_ContPgHS; 		- 1 Enquire
031 15FA193CP
RESONATOR - CLEAN AIR DUCT - RH
Row ID: ID_EEBK0122_15FA193CP_ContPgHS; 		- 1 Enquire
032 00RA542
CLIP - SNAPLOC - 16X8
Row ID: ID_EEBK0123_00RA542_ContPgHS; 		- 4 Enquire
033 15FA382CP
NVH - DIRTY AIR DUCT ASSY - LH
Superseded parts: 15FA151CP; Row ID: ID_EEBK0124_15FA382CP_ContPgHS; 		- 1 Enquire
034 15FA383CP
NVH - DIRTY AIR DUCT ASSY - RH
Superseded parts: 15FA152CP; Row ID: ID_EEBK0125_15FA383CP_ContPgHS; 		- 1 Enquire
035 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK
Row ID: ID_EEBK0126_00RA432_ContPgHS; 		- 4 Enquire
