7 - CLOSURES - 7.3 - DOOR HINGE of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 7 - CLOSURES - 7.3 - DOOR HINGE

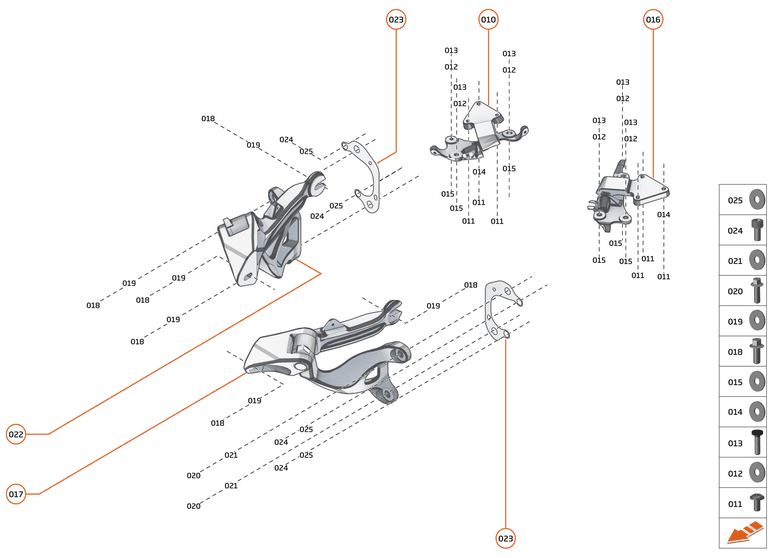

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AB922CP	HINGE - DOOR - UPPER COUPE - RH	14AB922CP HINGE - DOOR - UPPER COUPE - RH Row ID: ID_EAAG0201_14AB922CP_ContPgHS;	-	1	Enquire
011	00RA483	SCREW - BUTTON HEAD - TORX - M6X16	00RA483 SCREW - BUTTON HEAD - TORX - M6X16 Row ID: ID_XXXXXXZV_00RA483_ContPgHS;	-	6	Enquire
012	00RC064	WASHER - M6X18X1.6 - BLACK	00RC064 WASHER - M6X18X1.6 - BLACK Row ID: ID_XXXXXXZW_00RC064_ContPgHS;	-	6	Enquire
013	00RA600	SCREW - HEX HEAD - M6X1X20-8.8-78	00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Row ID: ID_XXXXXXZV_00RA600_ContPgHS;	-	6	Enquire
014	00RC028	WASHER - M6 FORM C	00RC028 WASHER - M6 FORM C Row ID: ID_XXXXXXZW_00RC028_ContPgHS;	-	2	Enquire
015	14AB924CP	WASHER - M6X18X3	14AB924CP WASHER - M6X18X3 Row ID: ID_XXXXXXZW_14AB924CP_ContPgHS;	-	6	Enquire
016	14AB919CP	HINGE - DOOR - UPPER COUPE - LH	14AB919CP HINGE - DOOR - UPPER COUPE - LH Row ID: ID_EAAG0203_14AB919CP_ContPgHS;	-	1	Enquire
017	15AA079CP	HINGE - DOOR - LOWER LH	15AA079CP HINGE - DOOR - LOWER LH Row ID: ID_EAAG0204_15AA079CP_ContPgHS;	-	1	Enquire
018	00RA616	BOLT - M10X1.5 - HEX	00RA616 BOLT - M10X1.5 - HEX Row ID: ID_XXXXXXZV_00RA616_ContPgHS;	-	4	Enquire
019	00RC034	WASHER - PLAIN - M12X28X2.7	00RC034 WASHER - PLAIN - M12X28X2.7 Row ID: ID_XXXXXXZW_00RC034_ContPgHS;	-	4	Enquire
020	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID_EAAF0368_00RA486_ContPgHS;	-	4	Enquire
021	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID_XXXXXXZW_00RC048_ContPgHS;	-	4	Enquire
022	15AA080CP	HINGE - DOOR - LOWER RH	15AA080CP HINGE - DOOR - LOWER RH Row ID: ID_EAAG0206_15AA080CP_ContPgHS;	-	1	Enquire
023	15AB184CP	DATUM PLATE - DOOR HINGE	15AB184CP DATUM PLATE - DOOR HINGE Row ID: ID_EAAG0207_15AB184CP_ContPgHS;	-	2	Enquire
024	00RA124	SCREW - M5X10 - ISO4762	00RA124 SCREW - M5X10 - ISO4762 Row ID: ID_XXXXXXZV_00RA124_ContPgHS;	-	4	Enquire
025	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID_XXXXXXZW_00RC013_ContPgHS;	-	4	Enquire
