McLaren Ultimate Series McLaren Senna - 6 - PANELS - 6.6 - REAR PANELS - RH

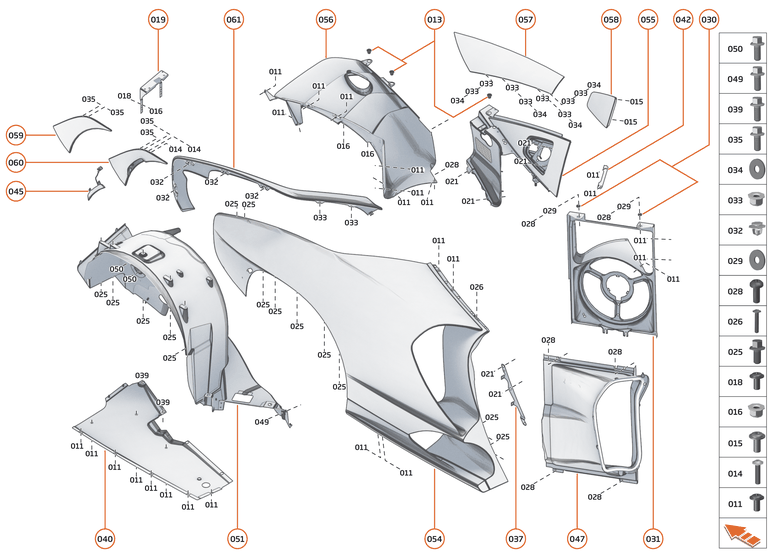

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID_XXXXXXZV_00RA432_ContPgHS;	-	26	Enquire
013	00RA542	CLIP - SNAPLOC - 16X8	00RA542 CLIP - SNAPLOC - 16X8 Row ID: ID_XXXXXXZV_00RA542_ContPgHS;	-	3	Enquire
014	00RA489	SCREW - M4X10 - FLANGED - BUTTON HEAD	00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD Row ID: ID_XXXXXXZV_00RA489_ContPgHS;	-	2	Enquire
015	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	2	Enquire
016	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_XXXXXXZV_00RA011_ContPgHS;	-	3	Enquire
018	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_XXXXXXZV_00RA409_ContPgHS;	-	1	Enquire
019	15AA572CP	COVER - LONGI - RH	15AA572CP COVER - LONGI - RH Row ID: ID_EAAF0303_15AA572CP_ContPgHS;	-	1	Enquire
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	6	Enquire
025	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_EAAF0359_00RA064_ContPgHS;	-	14	Enquire
026	00RA233	SCREW - M6X40 - BUTTON - FLANGE	00RA233 SCREW - M6X40 - BUTTON - FLANGE Row ID: ID_EAAF0307_00RA233_ContPgHS;	-	1	Enquire
028	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID_EAAF0360_00RA353_ContPgHS;	-	6	Enquire
029	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_EAAF0361_00RC043_ContPgHS;	-	2	Enquire
030	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID_EAAF0362_00RG011_ContPgHS;	-	2	Enquire
031	15AD093CP	COWL - HIGH TEMPERATURE RADIATOR - RH	15AD093CP COWL - HIGH TEMPERATURE RADIATOR - RH Superseded parts: 15AC761CP; Row ID: ID_EAAF0309_15AD093CP_ContPgHS;	-	1	Enquire
032	00RB185	CLIP - CANTRAIL CAPPING PANEL	00RB185 CLIP - CANTRAIL CAPPING PANEL Row ID: ID_EAAF0363_00RB185_ContPgHS;	-	4	Enquire
033	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_EAAF0364_00RA582_ContPgHS;	-	6	Enquire
034	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID_EAAF0310_00RC103_ContPgHS;	-	8	Enquire
035	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_XXXXXXZV_00RA087_ContPgHS;	-	4	Enquire
037	15AA855CP	BRACKET - FENDER - REAR - RH	15AA855CP BRACKET - FENDER - REAR - RH Row ID: ID_EAAF0312_15AA855CP_ContPgHS;	-	1	Enquire
039	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	2	Enquire
040	15AB453CP	ACCESS PANEL - FENDER - REAR - RH	15AB453CP ACCESS PANEL - FENDER - REAR - RH Row ID: ID_EAAF0314_15AB453CP_ContPgHS;	-	1	Enquire
042	15AB746CP	BRACKET - QUARTER PANEL - REAR - RH	15AB746CP BRACKET - QUARTER PANEL - REAR - RH Row ID: ID_EAAF0316_15AB746CP_ContPgHS;	-	1	Enquire
045	12A3206CP	SIDE MARKER - REAR - RED - RH	12A3206CP SIDE MARKER - REAR - RED - RH Row ID: ID_EAAF0319_12A3206CP_ContPgHS;	-	1	Enquire
047	15AA023CP	DUCT - FENDER INNER - RH	15AA023CP DUCT - FENDER INNER - RH Row ID: ID_EAAF0321_15AA023CP_ContPgHS;	-	1	Enquire
049	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16 Row ID: ID_XXXXXXZV_00RA515_ContPgHS;	-	1	Enquire
050	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID_XXXXXXZV_00RA486_ContPgHS;	-	2	Enquire
051	15AC969CP	WHEEL ARCH LINER - RH	15AC969CP WHEEL ARCH LINER - RH Superseded parts: 15AC620CP; Row ID: ID_EAAF0325_15AC969CP_ContPgHS;	-	1	Enquire
054	15AD256CP	FENDER - REAR - GLOSS CARBON - RH	15AD256CP FENDER - REAR - GLOSS CARBON - RH Row ID: ID_EAAF0328_15AD256CP_ContPgHS;	-	1	Enquire
055	15AC770CP	ASSY RR QTR PNL - RH	15AC770CP ASSY RR QTR PNL - RH Row ID: ID_EAAF0329_15AC770CP_ContPgHS;	-	1	Enquire
056	15AC957CP	LOUVRES - REAR DECK - RH - GLOSS CARBON	15AC957CP LOUVRES - REAR DECK - RH - GLOSS CARBON Row ID: ID_EAAF0330_15AC957CP_ContPgHS;	-	1	Enquire
057	15AC946CP	ASSY C PILLAR RH	15AC946CP ASSY C PILLAR RH Row ID: ID_EAAF0331_15AC946CP_ContPgHS;	-	1	Enquire
059	15AB516CP	EXTENTION - REAR BUMPER - RH - GLOSS CARBON	15AB516CP EXTENTION - REAR BUMPER - RH - GLOSS CARBON Row ID: ID_EAAF0333_15AB516CP_ContPgHS;	-	1	Enquire
060	15AB875CP	EXTENTION - REAR BUMPER - FEDERAL - RH - GLOSS CARBON	15AB875CP EXTENTION - REAR BUMPER - FEDERAL - RH - GLOSS CARBON Row ID: ID_EAAF0334_15AB875CP_ContPgHS;	-	1	Enquire
061	15AC777CP	PANEL - HIGH TEMPERATURE RADIATOR - RH - GLOSS CARBON	15AC777CP PANEL - HIGH TEMPERATURE RADIATOR - RH - GLOSS CARBON Row ID: ID_EAAF0335_15AC777CP_ContPgHS;	-	1	Enquire
