6 - PANELS - 6.3 - FRONT PANELS - CENTER of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 6 - PANELS - 6.3 - FRONT PANELS - CENTER

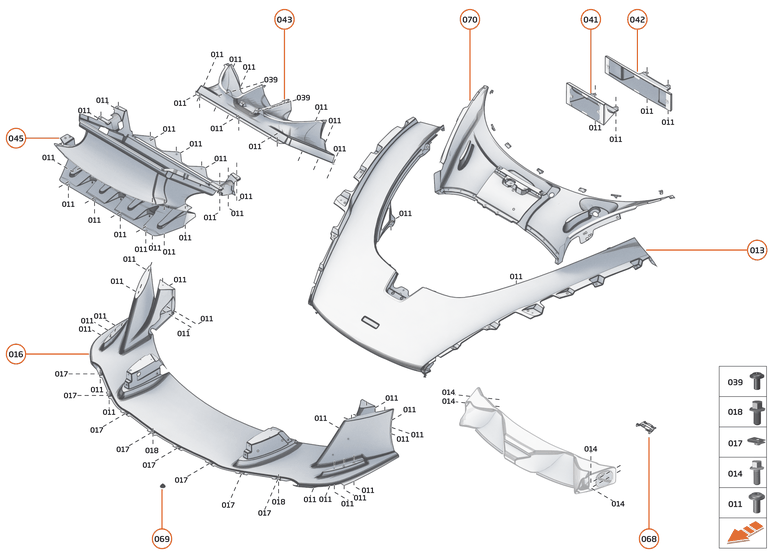

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	50	Enquire
013	15AD262CP	CLAM - OUTER - FRONT - FEDERAL	15AD262CP CLAM - OUTER - FRONT - FEDERAL Row ID: ID__15AD262CP_ContPgHS;	-	1	Enquire
013	15AD260CP	CLAM - OUTER - FRONT	15AD260CP CLAM - OUTER - FRONT Row ID: ID__15AD260CP_ContPgHS;	-	1	Enquire
013	15AA171MP	ASSY - FR CLAM OTR FDRL VCF - NO RECESS	15AA171MP ASSY - FR CLAM OTR FDRL VCF - NO RECESS Row ID: ID__15AA171MP_ContPgHS;	-	1	Enquire
013	15AA170MP	ASSY - FR CLAM OTR FEDERAL VCF	15AA170MP ASSY - FR CLAM OTR FEDERAL VCF Row ID: ID__15AA170MP_ContPgHS;	-	1	Enquire
013	15AA093MP	ASSY - FR CLAM OTR VCF - ELECTROFORM	15AA093MP ASSY - FR CLAM OTR VCF - ELECTROFORM Row ID: ID__15AA093MP_ContPgHS;	-	1	Enquire
013	15AA003MP	CLAM - OUTER - FRONT - MSO	15AA003MP CLAM - OUTER - FRONT - MSO Row ID: ID__15AA003MP_ContPgHS;	-	1	Enquire
013	15AC528CP	CLAM - OUTER - FRONT	15AC528CP CLAM - OUTER - FRONT Row ID: ID_EAAF0103_15AC528CP_ContPgHS;	-	1	Enquire
014	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID_XXXXXXZV_00RA557_ContPgHS;	-	4	Enquire
016	15AC568CP	ASSY FRONT SPLITTER	15AC568CP ASSY FRONT SPLITTER Row ID: ID_EAAF0104_15AC568CP_ContPgHS;	-	1	Enquire
017	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID_XXXXXXZY_00RA301_ContPgHS;	-	8	Enquire
018	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16 Row ID: ID_EAAF0367_00RA515_ContPgHS;	-	2	Enquire
039	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_XXXXXXZV_00RA409_ContPgHS;	-	2	Enquire
041	15AC765CP	LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD	15AC765CP LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD Superseded parts: 15AA353CP; Row ID: ID_EAAF0128_15AC765CP_ContPgHS;	-	1	Enquire
042	15AC763CP	LICENCE PLATE - MOUNTING PLINTH - EU	15AC763CP LICENCE PLATE - MOUNTING PLINTH - EU Superseded parts: 15AB601CP; Row ID: ID_EAAF0129_15AC763CP_ContPgHS;	-	1	Enquire
043	15AC705CP	DUCT - LOW TEMPERATURE RADIATOR - OUTLET	15AC705CP DUCT - LOW TEMPERATURE RADIATOR - OUTLET Row ID: ID_EAAF0130_15AC705CP_ContPgHS;	-	1	Enquire
045	15AC949CP	DUCT - LOW TEMPERATURE RADIATOR - INTAKE	15AC949CP DUCT - LOW TEMPERATURE RADIATOR - INTAKE Superseded parts: 15AC709CP; Row ID: ID_EAAF0131_15AC949CP_ContPgHS;	-	1	Enquire
068	13A5805CP	ASSY HINGE SERVICE COVER	13A5805CP ASSY HINGE SERVICE COVER Row ID: ID_EBAJ0523_13A5805CP_ContPgHS;	-	1	Enquire
069	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID__00RB187_ContPgHS;	-	6	Enquire
070	15AD169CP	WIPER COVER - RHD	15AD169CP WIPER COVER - RHD Row ID: ID__15AD169CP_ContPgHS;	-	1	Enquire
070	15AD166CP	WIPER COVER - LHD	15AD166CP WIPER COVER - LHD Row ID: ID__15AD166CP_ContPgHS;	-	1	Enquire
