6 - PANELS - 6.5 - REAR PANELS - LH of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 6 - PANELS - 6.5 - REAR PANELS - LH

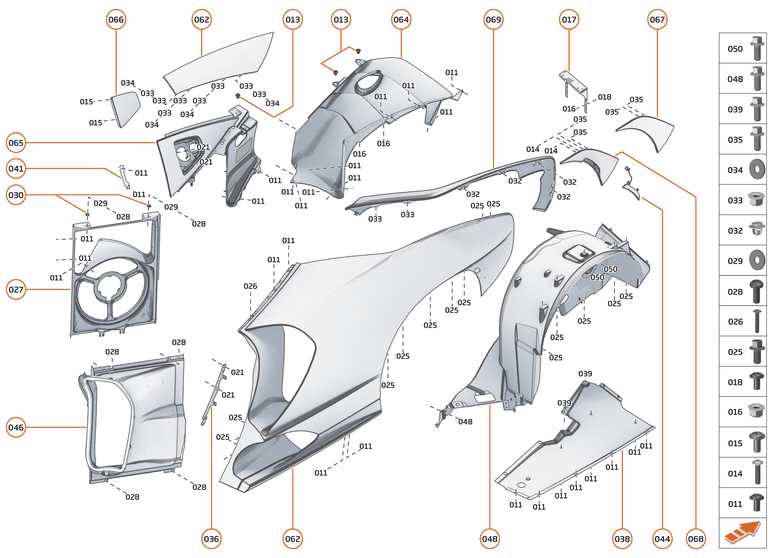

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID_XXXXXXZV_00RA432_ContPgHS;	-	26	Enquire
013	00RA542	CLIP - SNAPLOC - 16X8	00RA542 CLIP - SNAPLOC - 16X8 Row ID: ID_XXXXXXZV_00RA542_ContPgHS;	-	3	Enquire
014	00RA489	SCREW - M4X10 - FLANGED - BUTTON HEAD	00RA489 SCREW - M4X10 - FLANGED - BUTTON HEAD Row ID: ID_XXXXXXZV_00RA489_ContPgHS;	-	2	Enquire
015	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	10	Enquire
016	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID_XXXXXXZV_00RA011_ContPgHS;	-	3	Enquire
017	15AA571CP	COVER - LONGI - LH	15AA571CP COVER - LONGI - LH Row ID: ID_EAAF0302_15AA571CP_ContPgHS;	-	1	Enquire
018	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_XXXXXXZV_00RA409_ContPgHS;	-	1	Enquire
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	6	Enquire
025	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_XXXXXXZV_00RA064_ContPgHS;	-	14	Enquire
026	00RA233	SCREW - M6X40 - BUTTON - FLANGE	00RA233 SCREW - M6X40 - BUTTON - FLANGE Row ID: ID_EAAF0307_00RA233_ContPgHS;	-	1	Enquire
027	15AD092CP	COWL - HIGH TEMPERATURE RADIATOR - LH	15AD092CP COWL - HIGH TEMPERATURE RADIATOR - LH Superseded parts: 15AC759CP; Row ID: ID_EAAF0308_15AD092CP_ContPgHS;	-	1	Enquire
028	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID_EAAF0360_00RA353_ContPgHS;	-	6	Enquire
029	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_EAAF0361_00RC043_ContPgHS;	-	2	Enquire
030	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID_EAAF0362_00RG011_ContPgHS;	-	2	Enquire
032	00RB185	CLIP - CANTRAIL CAPPING PANEL	00RB185 CLIP - CANTRAIL CAPPING PANEL Row ID: ID_XXXXXXZZ_00RB185_ContPgHS;	-	4	Enquire
033	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID_EAAF0364_00RA582_ContPgHS;	-	6	Enquire
034	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID_EAAF0310_00RC103_ContPgHS;	-	8	Enquire
035	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_EAAF0365_00RA087_ContPgHS;	-	4	Enquire
036	15AA593CP	BRACKET - FENDER - REAR - LH	15AA593CP BRACKET - FENDER - REAR - LH Row ID: ID_EAAF0311_15AA593CP_ContPgHS;	-	1	Enquire
038	15AB452CP	ACCESS PANEL - FENDER - REAR - LH	15AB452CP ACCESS PANEL - FENDER - REAR - LH Row ID: ID_EAAF0313_15AB452CP_ContPgHS;	-	1	Enquire
039	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	2	Enquire
041	15AB745CP	BRACKET - QUARTER PANEL - REAR - LH	15AB745CP BRACKET - QUARTER PANEL - REAR - LH Row ID: ID_EAAF0315_15AB745CP_ContPgHS;	-	1	Enquire
043	15AB874CP	EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON	15AB874CP EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON Row ID: ID_EAAF0317_15AB874CP_ContPgHS;	-	1	Enquire
044	12A3202CP	SIDE MARKER - REAR - RED - LH	12A3202CP SIDE MARKER - REAR - RED - LH Row ID: ID_EAAF0318_12A3202CP_ContPgHS;	-	1	Enquire
046	15AA022CP	DUCT - FENDER INNER - LH	15AA022CP DUCT - FENDER INNER - LH Row ID: ID_EAAF0320_15AA022CP_ContPgHS;	-	1	Enquire
048	15AD183CP	WHEEL ARCH LINER - LH	15AD183CP WHEEL ARCH LINER - LH Row ID: ID_EAAF0322_15AD183CP_ContPgHS;	-	1	Enquire
049	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16 Row ID: ID_EAAF0367_00RA515_ContPgHS;	-	1	Enquire
050	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID_EAAF0368_00RA486_ContPgHS;	-	2	Enquire
062	15AD253CP	FENDER - REAR - GLOSS CARBON - LH	15AD253CP FENDER - REAR - GLOSS CARBON - LH Row ID: ID_EAAF0336_15AD253CP_ContPgHS;	-	1	Enquire
064	15AC955CP	LOUVRES - REAR DECK - LH - SATIN CARBON	15AC955CP LOUVRES - REAR DECK - LH - SATIN CARBON Row ID: ID_EAAF0338_15AC955CP_ContPgHS;	-	1	Enquire
065	15AC767CP	ASSY C Â PILLAR LH	15AC767CP ASSY C Â PILLAR LH Row ID: ID_EAAF0339_15AC767CP_ContPgHS;	-	1	Enquire
066	15AC947CP	FILLER BOWL FLAP MACH - LH	15AC947CP FILLER BOWL FLAP MACH - LH Row ID: ID_EAAF0340_15AC947CP_ContPgHS;	-	1	Enquire
067	15AB512CP	EXTENTION - REAR BUMPER - LH - GLOSS CARBON	15AB512CP EXTENTION - REAR BUMPER - LH - GLOSS CARBON Row ID: ID_EAAF0341_15AB512CP_ContPgHS;	-	1	Enquire
068	15AB874CP	EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON	15AB874CP EXTENTION - REAR BUMPER - FEDERAL - LH - GLOSS CARBON Row ID: ID_EAAF0342_15AB874CP_ContPgHS;	-	1	Enquire
069	15AC774CP	PANEL - HIGH TEMPERATURE RADIATOR - LH - GLOSS CARBON	15AC774CP PANEL - HIGH TEMPERATURE RADIATOR - LH - GLOSS CARBON Row ID: ID_EAAF0343_15AC774CP_ContPgHS;	-	1	Enquire
