3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Ultimate Series McLaren Senna

View All

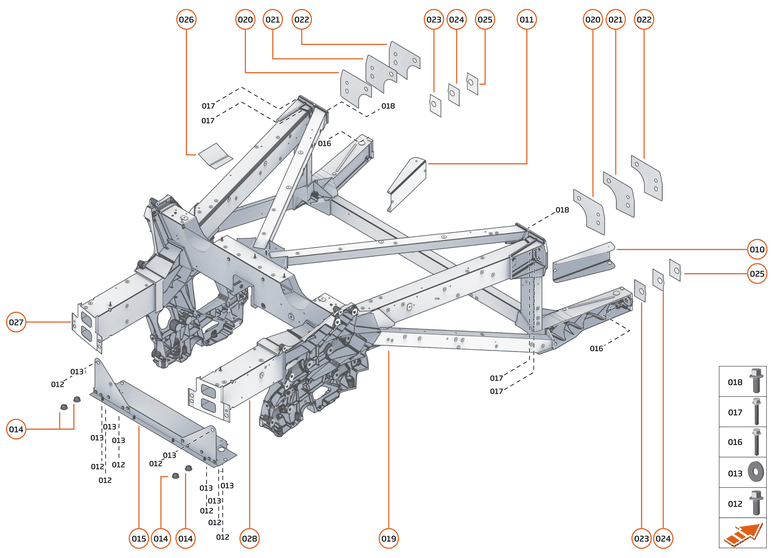

McLaren Ultimate Series McLaren Senna - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11A3816CP	COVER FRAME BULKHE24 MNTG LWR-	11A3816CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID_EAAC0101_11A3816CP_ContPgHS;	$95.65	1
011	11A3817CP	COVER FRAME BULKHE24 MNTG LWR-	11A3817CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID_EAAC0102_11A3817CP_ContPgHS;	$95.65	1
012	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID_XXXXXXZV_00RA457_ContPgHS;	-	8	Enquire
013	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID_XXXXXXZW_00RC065_ContPgHS;	-	8	Enquire
014	11A4284CP	PLUG - DOME - 25 DIAMETER	11A4284CP PLUG - DOME - 25 DIAMETER Row ID: ID_EAAC0103_11A4284CP_ContPgHS;	-	4	Enquire
015	15AC169CP	CROSS BEAM - TRANSMISSION FLOOR	15AC169CP CROSS BEAM - TRANSMISSION FLOOR Row ID: ID_EAAC0104_15AC169CP_ContPgHS;	-	1	Enquire
016	00RA164	BOLT-HEX HEAD-FLANGE-M16X80-10	00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Row ID: ID_XXXXXXZV_00RA164_ContPgHS;	-	2	Enquire
017	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Row ID: ID_XXXXXXZV_00RA400_ContPgHS;	-	4	Enquire
018	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40 Row ID: ID_XXXXXXZV_00RA559_ContPgHS;	-	2	Enquire
019	15AC601CP	FRAME ASSY - REAR	15AC601CP FRAME ASSY - REAR Row ID: ID_EAAC0105_15AC601CP_ContPgHS;	-	1	Enquire
020	11A1240CP	SHIM REAR FRAME TO24UB-UPR-2MM	11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM Row ID: ID_EAAC0106_11A1240CP_ContPgHS;	$19.29	2
021	11A1241CP	Shim - 1mm - Rear - Upper	11A1241CP Shim - 1mm - Rear - Upper Row ID: ID_EAAC0107_11A1241CP_ContPgHS;	-	2	Enquire
022	11A1242CP	SHIM REAR FRAME TO TUB-UPR-0.5	11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 Row ID: ID_EAAC0108_11A1242CP_ContPgHS;	$14.20	2
023	11A1732CP	SHIM REAR FRAME TO TUB-LWR-2MM	11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM Row ID: ID_EAAC0109_11A1732CP_ContPgHS;	$14.20	2
024	11A1733CP	SHIM REAR FRAME TO TUB-LWR-1MM	11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM Row ID: ID_EAAC0110_11A1733CP_ContPgHS;	$9.89	2
025	11A1734CP	Shim - 0.5mm - Rear - Lower	11A1734CP Shim - 0.5mm - Rear - Lower Row ID: ID_EAAC0111_11A1734CP_ContPgHS;	-	2	Enquire
026	11A4758CP	BLACK DECAL BODYSIDE REAR LOWE	11A4758CP BLACK DECAL BODYSIDE REAR LOWE Row ID: ID_EAAC0112_11A4758CP_ContPgHS;	$15.09	2
027	15AB654CP	REAR CRASH CAN-LH	15AB654CP REAR CRASH CAN-LH Row ID: ID__15AB654CP_ContPgHS;	-	-	Enquire
028	15AB656CP	REAR CRASH CAN-RH	15AB656CP REAR CRASH CAN-RH Row ID: ID__15AB656CP_ContPgHS;	-	-	Enquire
