28 - COOLING - HIGH TEMP - 28.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 28 - COOLING - HIGH TEMP - 28.2 - HIGH TEMP MAIN RADIATORS & FANS

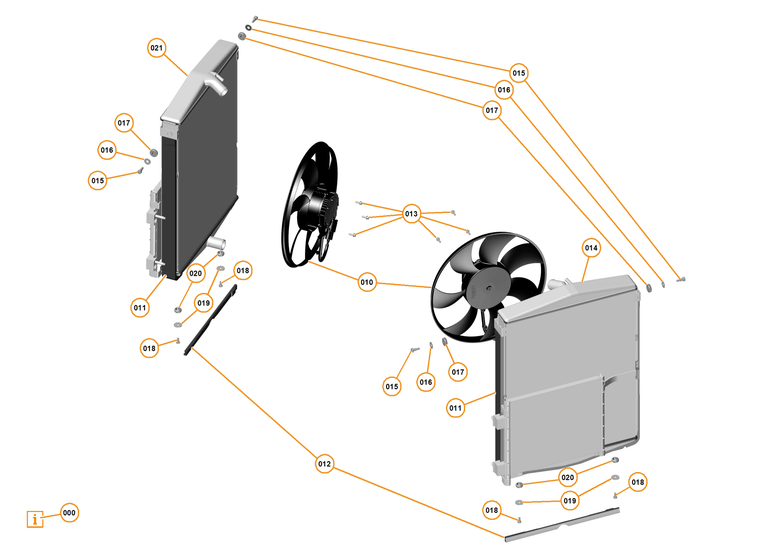

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RB035	Cable Tie - Female - Dia 8-20	Enquire	To Order
	00RL013	CABLE TIE - 360X4.8MM	Enquire	To Order
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0137CP	Fan Assy - Engine Coolant Radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0231CP	FOAM - SIDES - CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0230CP	FOAM - LOWER FRONT - CONDENSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA063	Screw - M5x16 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0009CP	RADIATOR - ENGINE COOLANT - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA188	SHOULDER BOLT - M6X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG035	REEVITE - 15.9X3.2X8X82X5.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG011	GROMMET - DIA 19 - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12L0036CP	RADIATOR - ENGINE COOLANT - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20 Row ID: ID_BDLA0215_00RB035_ContPgHS;	-	1	Enquire
000	00RL013	CABLE TIE - 360X4.8MM	00RL013 CABLE TIE - 360X4.8MM Row ID: ID_BDLA0214_00RL013_ContPgHS;	-	4	Enquire
000	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID_BDLA0213_00RL001_ContPgHS;	-	4	Enquire
010	12L0137CP	Fan Assy - Engine Coolant Radiator	12L0137CP Fan Assy - Engine Coolant Radiator Row ID: ID_BDLA0201_12L0137CP_ContPgHS;	-	2	Enquire
011	12L0231CP	FOAM - SIDES - CONDENSER	12L0231CP FOAM - SIDES - CONDENSER Row ID: ID_BDLA0202_12L0231CP_ContPgHS;	-	2	Enquire
012	12L0230CP	FOAM - LOWER FRONT - CONDENSER	12L0230CP FOAM - LOWER FRONT - CONDENSER Row ID: ID_BDLA0203_12L0230CP_ContPgHS;	-	2	Enquire
013	00RA063	Screw - M5x16 - Hex	00RA063 Screw - M5x16 - Hex Row ID: ID_BDLA0204_00RA063_ContPgHS;	-	6	Enquire
014	12L0009CP	RADIATOR - ENGINE COOLANT - LH	12L0009CP RADIATOR - ENGINE COOLANT - LH Row ID: ID_BDLA0205_12L0009CP_ContPgHS;	-	1	Enquire
015	00RA188	SHOULDER BOLT - M6X10	00RA188 SHOULDER BOLT - M6X10 Row ID: ID_BDLA0206_00RA188_ContPgHS;	-	4	Enquire
016	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID_BDLA0207_00RC048_ContPgHS;	-	4	Enquire
017	00RG035	REEVITE - 15.9X3.2X8X82X5.4	00RG035 REEVITE - 15.9X3.2X8X82X5.4 Row ID: ID_BDLA0208_00RG035_ContPgHS;	-	4	Enquire
018	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID_BDLA0209_00RA353_ContPgHS;	-	4	Enquire
019	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID_BDLA0210_00RC043_ContPgHS;	-	4	Enquire
020	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID_BDLA0211_00RG011_ContPgHS;	-	4	Enquire
021	12L0036CP	RADIATOR - ENGINE COOLANT - RH	12L0036CP RADIATOR - ENGINE COOLANT - RH Row ID: ID_BDLA0212_12L0036CP_ContPgHS;	-	1	Enquire
