Find Your Part

23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 23 - BRAKES - SYSTEMS - 23.2 - BRAKE BOOST SYSTEM

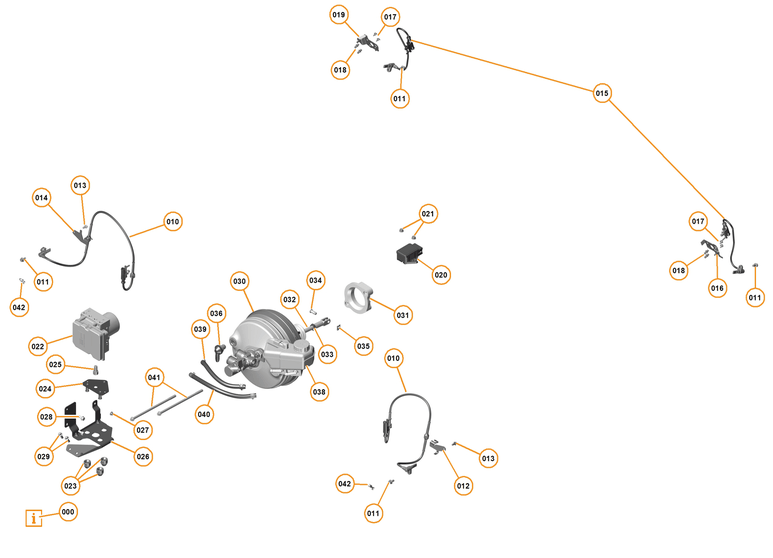

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12C0346CP	Heatshield - Wheel Speed Sensor - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0735CP	SENSOR - WHEEL SPEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0565CP	Bracket - Wheel Speed Sensor - Front - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0567CP	Bracket - Wheel Speed Sensor - Front - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0432CP	SENSOR - WHEEL SPEED - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0569CP	Bracket - Wheel Speed Sensor - Rear - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB042	SWIVEL PIPE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0571CP	Bracket - Wheel Speed Sensor - Rear - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12M0594CP	SENSOR - YAW RATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0607CP	ABS Modulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0045CP	Mount - Anti-Vibration - Rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0037CP	Plate Assy - ABS Modulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0225CP	BOLT-CAP HEAD-SOCK24-M10X18	$71.07	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0203CP	Bracket - ABS Modulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA054	Nut - M5 - Lock Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0302CP	Brake Booster Assy - inc master cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0290CP	BRACKET - BRAKE BOOSTER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0306CP	EXTENSION ROD - BRAKE BOOSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA495	Half Nut - M12x1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0279CP	Pin - Piston Rod to Brake Pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0286CP	SPRING CLIP - CLEVIS PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0323CP	Connector - Vacuum Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0286CP	Brake Fluid Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0297CP	Hose - Primary - Brake Fluid Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0298CP	Hose - Secondary - Brake Fluid Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12C0308CP	BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB035	Cable Tie - Female - Dia 8-20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	12C0346CP	Heatshield - Wheel Speed Sensor - Rear	12C0346CP Heatshield - Wheel Speed Sensor - Rear Row ID: ID_BDCC0235_12C0346CP_ContPgHS;	-	2	Enquire
010	12M0735CP	SENSOR - WHEEL SPEED	12M0735CP SENSOR - WHEEL SPEED Row ID: ID_BDCC0201_12M0735CP_ContPgHS;	-	2	Enquire
011	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX Row ID: ID_BDCC0202_00RA065_ContPgHS;	-	4	Enquire
012	12B0565CP	Bracket - Wheel Speed Sensor - Front - LH	12B0565CP Bracket - Wheel Speed Sensor - Front - LH Row ID: ID_BDCC0203_12B0565CP_ContPgHS;	-	1	Enquire
013	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_BDCC0204_00RA064_ContPgHS;	-	4	Enquire
014	12B0567CP	Bracket - Wheel Speed Sensor - Front - RH	12B0567CP Bracket - Wheel Speed Sensor - Front - RH Row ID: ID_BDCC0205_12B0567CP_ContPgHS;	-	1	Enquire
015	11M0432CP	SENSOR - WHEEL SPEED - REAR	11M0432CP SENSOR - WHEEL SPEED - REAR Row ID: ID_BDCC0206_11M0432CP_ContPgHS;	-	2	Enquire
016	12B0569CP	Bracket - Wheel Speed Sensor - Rear - LH	12B0569CP Bracket - Wheel Speed Sensor - Rear - LH Row ID: ID_BDCC0207_12B0569CP_ContPgHS;	-	1	Enquire
017	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP Row ID: ID_BDCC0208_00RB042_ContPgHS;	-	4	Enquire
018	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID_BDCC0209_00RG019_ContPgHS;	-	4	Enquire
019	12B0571CP	Bracket - Wheel Speed Sensor - Rear - RH	12B0571CP Bracket - Wheel Speed Sensor - Rear - RH Row ID: ID_BDCC0210_12B0571CP_ContPgHS;	-	1	Enquire
020	12M0594CP	SENSOR - YAW RATE	12M0594CP SENSOR - YAW RATE Row ID: ID_BDCC0211_12M0594CP_ContPgHS;	-	1	Enquire
021	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_BDCC0212_00RA055_ContPgHS;	-	2	Enquire
022	11C0607CP	ABS Modulator	11C0607CP ABS Modulator Row ID: ID_BDCC0213_11C0607CP_ContPgHS;	-	1	Enquire
023	11C0045CP	Mount - Anti-Vibration - Rubber	11C0045CP Mount - Anti-Vibration - Rubber Row ID: ID_BDCC0214_11C0045CP_ContPgHS;	-	3	Enquire
024	12C0037CP	Plate Assy - ABS Modulator	12C0037CP Plate Assy - ABS Modulator Row ID: ID_BDCC0215_12C0037CP_ContPgHS;	-	1	Enquire
025	11F0225CP	BOLT-CAP HEAD-SOCK24-M10X18	11F0225CP BOLT-CAP HEAD-SOCK24-M10X18 Row ID: ID_BDCC0216_11F0225CP_ContPgHS;	$71.07	1
026	12C0203CP	Bracket - ABS Modulator	12C0203CP Bracket - ABS Modulator Row ID: ID_BDCC0217_12C0203CP_ContPgHS;	-	1	Enquire
027	00RA054	Nut - M5 - Lock Hex	00RA054 Nut - M5 - Lock Hex Row ID: ID_BDCC0218_00RA054_ContPgHS;	-	1	Enquire
028	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_BDCC0219_00RA061_ContPgHS;	-	2	Enquire
029	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_BDCC0220_00RA083_ContPgHS;	-	4	Enquire
030	12C0302CP	Brake Booster Assy - inc master cylinder	12C0302CP Brake Booster Assy - inc master cylinder Row ID: ID_BDCC0221_12C0302CP_ContPgHS;	-	1	Enquire
031	12C0290CP	BRACKET - BRAKE BOOSTER MOUNTING	12C0290CP BRACKET - BRAKE BOOSTER MOUNTING Row ID: ID_BDCC0222_12C0290CP_ContPgHS;	-	1	Enquire
032	12C0306CP	EXTENSION ROD - BRAKE BOOSTER	12C0306CP EXTENSION ROD - BRAKE BOOSTER Superseded parts: 12C0214CP; Row ID: ID_BDCC0223_12C0306CP_ContPgHS;	-	1	Enquire
033	00RA495	Half Nut - M12x1.5	00RA495 Half Nut - M12x1.5 Row ID: ID_BDCC0224_00RA495_ContPgHS;	-	1	Enquire
034	11C0279CP	Pin - Piston Rod to Brake Pedal	11C0279CP Pin - Piston Rod to Brake Pedal Row ID: ID_BDCC0225_11C0279CP_ContPgHS;	-	1	Enquire
035	11C0286CP	SPRING CLIP - CLEVIS PIN	11C0286CP SPRING CLIP - CLEVIS PIN Row ID: ID_BDCC0226_11C0286CP_ContPgHS;	-	1	Enquire
036	12C0323CP	Connector - Vacuum Hose	12C0323CP Connector - Vacuum Hose Row ID: ID_BDCC0227_12C0323CP_ContPgHS;	-	1	Enquire
038	12C0286CP	Brake Fluid Reservoir	12C0286CP Brake Fluid Reservoir Row ID: ID_BDCC0229_12C0286CP_ContPgHS;	-	1	Enquire
039	12C0297CP	Hose - Primary - Brake Fluid Reservoir	12C0297CP Hose - Primary - Brake Fluid Reservoir Row ID: ID_BDCC0231_12C0297CP_ContPgHS;	-	1	Enquire
040	12C0298CP	Hose - Secondary - Brake Fluid Reservoir	12C0298CP Hose - Secondary - Brake Fluid Reservoir Row ID: ID_BDCC0232_12C0298CP_ContPgHS;	-	1	Enquire
041	12C0308CP	BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET	12C0308CP BOLT - M8X1.25X197 - BRAKE BOOSTER TO BRACKET Row ID: ID_BDCC0233_12C0308CP_ContPgHS;	-	2	Enquire
042	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20 Row ID: ID_BDCC0234_00RB035_ContPgHS;	-	1	Enquire
