26 - FUEL TANK - 26.2 - FUEL TANK RETENTION of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 26 - FUEL TANK - 26.2 - FUEL TANK RETENTION

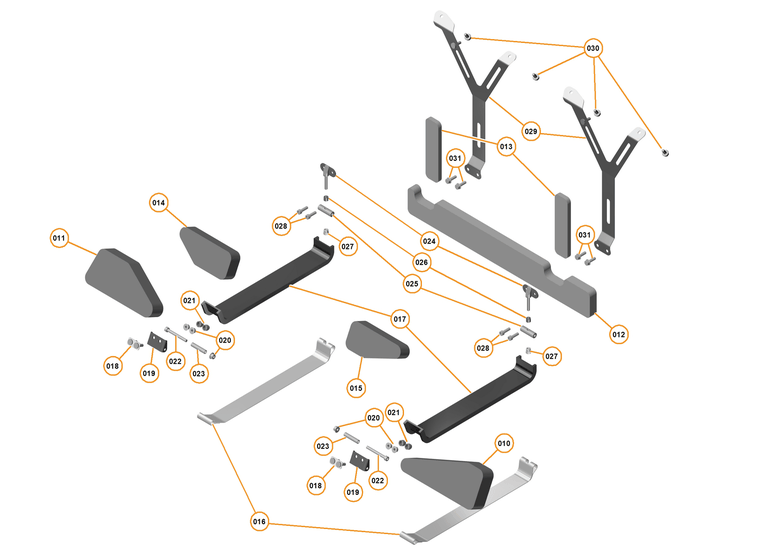

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12K0049CP	Foam Pad - Fuel Tank - Front - Lower - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0050CP	Foam Pad - Fuel Tank - Front - Lower - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0052CP	Foam Pad - Fuel Tank - Cross Member	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0053CP	Foam Pad - Fuel Tank - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0054CP	Foam Pad - Fuel Tank - Front - Upper - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0055CP	Foam Pad - Fuel Tank - Front - Upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0077CP	Mounting Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0138CP	Mounting Strap - Moulded - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0105CP	STUD PLATE - M6X18 - FUEL TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13K0022CP	Bracket - Fuel Tank - Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG010	NUT PROTECTOR - M6 -REEVITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA257	BOLT-HEX SOCKET HD24AP-M6X55-8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0111CP	Bush - Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0139CP	Bracket - Fuel Tank Mounting - Tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0110CP	Turnbuckle - Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0102CP	Spacer - Turnbuckle 8mm Long - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0109CP	Nut - Strap - Fuel Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA252	Screw - M6x20 - Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12K0061CP	Retaining Strap - Fuel Cell - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12K0049CP	Foam Pad - Fuel Tank - Front - Lower - LH	12K0049CP Foam Pad - Fuel Tank - Front - Lower - LH Row ID: ID_BDKA0201_12K0049CP_ContPgHS;	-	1	Enquire
011	12K0050CP	Foam Pad - Fuel Tank - Front - Lower - RH	12K0050CP Foam Pad - Fuel Tank - Front - Lower - RH Row ID: ID_BDKA0202_12K0050CP_ContPgHS;	-	1	Enquire
012	12K0052CP	Foam Pad - Fuel Tank - Cross Member	12K0052CP Foam Pad - Fuel Tank - Cross Member Row ID: ID_BDKA0203_12K0052CP_ContPgHS;	-	1	Enquire
013	12K0053CP	Foam Pad - Fuel Tank - Rear	12K0053CP Foam Pad - Fuel Tank - Rear Row ID: ID_BDKA0204_12K0053CP_ContPgHS;	-	1	Enquire
014	12K0054CP	Foam Pad - Fuel Tank - Front - Upper - RH	12K0054CP Foam Pad - Fuel Tank - Front - Upper - RH Row ID: ID_BDKA0205_12K0054CP_ContPgHS;	-	1	Enquire
015	12K0055CP	Foam Pad - Fuel Tank - Front - Upper - LH	12K0055CP Foam Pad - Fuel Tank - Front - Upper - LH Row ID: ID_BDKA0206_12K0055CP_ContPgHS;	-	1	Enquire
016	11K0077CP	Mounting Strap - Fuel Tank	11K0077CP Mounting Strap - Fuel Tank Row ID: ID_BDKA0207_11K0077CP_ContPgHS;	-	2	Enquire
017	11K0138CP	Mounting Strap - Moulded - Fuel Tank	11K0138CP Mounting Strap - Moulded - Fuel Tank Row ID: ID_BDKA0208_11K0138CP_ContPgHS;	-	2	Enquire
018	11K0105CP	STUD PLATE - M6X18 - FUEL TANK	11K0105CP STUD PLATE - M6X18 - FUEL TANK Row ID: ID_BDKA0209_11K0105CP_ContPgHS;	-	2	Enquire
019	13K0022CP	Bracket - Fuel Tank - Lower	13K0022CP Bracket - Fuel Tank - Lower Superseded parts: 11K0112CP; Row ID: ID_BDKA0210_13K0022CP_ContPgHS;	-	2	Enquire
020	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID_BDKA0211_00RA055_ContPgHS;	-	6	Enquire
021	00RG010	NUT PROTECTOR - M6 -REEVITE	00RG010 NUT PROTECTOR - M6 -REEVITE Row ID: ID_BDKA0212_00RG010_ContPgHS;	-	4	Enquire
022	00RA257	BOLT-HEX SOCKET HD24AP-M6X55-8	00RA257 BOLT-HEX SOCKET HD24AP-M6X55-8 Row ID: ID_BDKA0213_00RA257_ContPgHS;	-	2	Enquire
023	11K0111CP	Bush - Strap - Fuel Tank	11K0111CP Bush - Strap - Fuel Tank Row ID: ID_BDKA0214_11K0111CP_ContPgHS;	-	2	Enquire
024	11K0139CP	Bracket - Fuel Tank Mounting - Tensioner	11K0139CP Bracket - Fuel Tank Mounting - Tensioner Row ID: ID_BDKA0215_11K0139CP_ContPgHS;	-	2	Enquire
025	11K0110CP	Turnbuckle - Strap - Fuel Tank	11K0110CP Turnbuckle - Strap - Fuel Tank Row ID: ID_BDKA0216_11K0110CP_ContPgHS;	-	2	Enquire
026	11K0102CP	Spacer - Turnbuckle 8mm Long - Fuel Tank	11K0102CP Spacer - Turnbuckle 8mm Long - Fuel Tank Row ID: ID_BDKA0217_11K0102CP_ContPgHS;	-	2	Enquire
027	11K0109CP	Nut - Strap - Fuel Tank	11K0109CP Nut - Strap - Fuel Tank Row ID: ID_BDKA0218_11K0109CP_ContPgHS;	-	2	Enquire
028	00RA252	Screw - M6x20 - Hex Socket	00RA252 Screw - M6x20 - Hex Socket Row ID: ID_BDKA0219_00RA252_ContPgHS;	-	4	Enquire
029	12K0061CP	Retaining Strap - Fuel Cell - Rear	12K0061CP Retaining Strap - Fuel Cell - Rear Row ID: ID_BDKA0220_12K0061CP_ContPgHS;	-	2	Enquire
030	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX Row ID: ID_BDKA0221_00RA065_ContPgHS;	-	4	Enquire
031	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_BDKA0222_00RA083_ContPgHS;	-	4	Enquire
