17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 17 - SUSPENSION - REAR - 17.2 - UPRIGHTS REAR

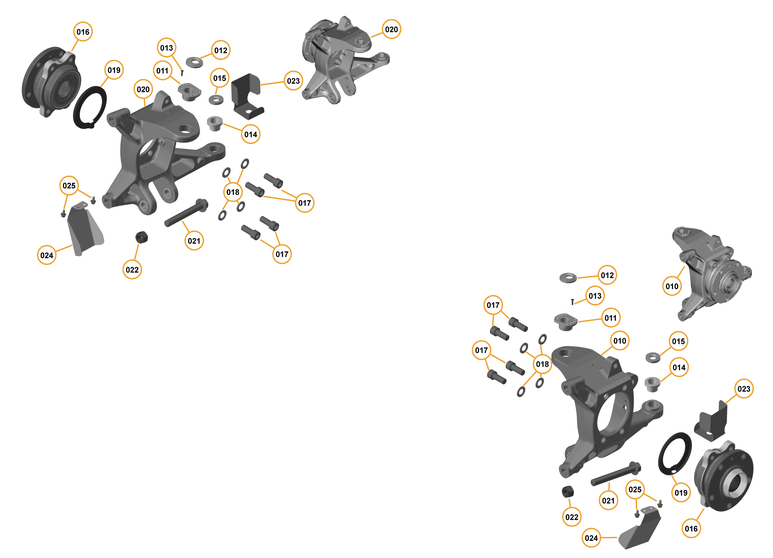

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12B0069CP	Upright - Suspension - Rear - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0739CP	WASHER - CAMBER ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0993CP	SCREW - M3X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0397CP	Tophat - Trackrod - Outer Ball Joint - +2.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0205CP	Washer - TrackRod Obj	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0322CP	WHEEL HUB ASSY - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0595CP	Bolt - M12x30 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0596CP	Washer - M12x23x2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0630CP	PROTECTOR CAP - HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0070CP	Upright - Suspension - Rear - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA230	BOLT-HEX HD-FLANGE-M14X110X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA231	Nut - M14x2.0 - Locked Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11D0122CP	Heatshield - Trackrod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0574CP	Heatshield - Lower - Outer Bush	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA087	SCREW - M5X10 - HEX	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12B0069CP	Upright - Suspension - Rear - LH	12B0069CP Upright - Suspension - Rear - LH Row ID: ID_BDBB0201_12B0069CP_ContPgHS;	-	1	Enquire
011	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT Row ID: ID_BDBB0202_11B0541CP_ContPgHS;	-	2	Enquire
012	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT Row ID: ID_BDBB0203_11B0739CP_ContPgHS;	-	2	Enquire
013	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX Row ID: ID_BDBB0204_11B0993CP_ContPgHS;	-	2	Enquire
014	11B0397CP	Tophat - Trackrod - Outer Ball Joint - +2.5mm	11B0397CP Tophat - Trackrod - Outer Ball Joint - +2.5mm Row ID: ID_BDBB0205_11B0397CP_ContPgHS;	-	2	Enquire
015	11B0205CP	Washer - TrackRod Obj	11B0205CP Washer - TrackRod Obj Row ID: ID_BDBB0206_11B0205CP_ContPgHS;	-	2	Enquire
016	11B0322CP	WHEEL HUB ASSY - BEARING	11B0322CP WHEEL HUB ASSY - BEARING Row ID: ID_BDBB0207_11B0322CP_ContPgHS;	-	2	Enquire
017	11B0595CP	Bolt - M12x30 - Hex	11B0595CP Bolt - M12x30 - Hex Row ID: ID_BDBB0208_11B0595CP_ContPgHS;	-	8	Enquire
018	11B0596CP	Washer - M12x23x2	11B0596CP Washer - M12x23x2 Row ID: ID_BDBB0209_11B0596CP_ContPgHS;	-	8	Enquire
019	11B0630CP	PROTECTOR CAP - HUB	11B0630CP PROTECTOR CAP - HUB Row ID: ID_BDBB0210_11B0630CP_ContPgHS;	-	2	Enquire
020	12B0070CP	Upright - Suspension - Rear - RH	12B0070CP Upright - Suspension - Rear - RH Row ID: ID_BDBB0211_12B0070CP_ContPgHS;	-	1	Enquire
021	00RA230	BOLT-HEX HD-FLANGE-M14X110X2.0	00RA230 BOLT-HEX HD-FLANGE-M14X110X2.0 Row ID: ID_BDBB0212_00RA230_ContPgHS;	-	2	Enquire
022	00RA231	Nut - M14x2.0 - Locked Hex	00RA231 Nut - M14x2.0 - Locked Hex Row ID: ID_BDBB0213_00RA231_ContPgHS;	-	2	Enquire
023	11D0122CP	Heatshield - Trackrod	11D0122CP Heatshield - Trackrod Row ID: ID_BDBB0214_11D0122CP_ContPgHS;	-	2	Enquire
024	12B0574CP	Heatshield - Lower - Outer Bush	12B0574CP Heatshield - Lower - Outer Bush Row ID: ID_BDBB0215_12B0574CP_ContPgHS;	-	2	Enquire
025	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID_BDBB0216_00RA087_ContPgHS;	-	4	Enquire
