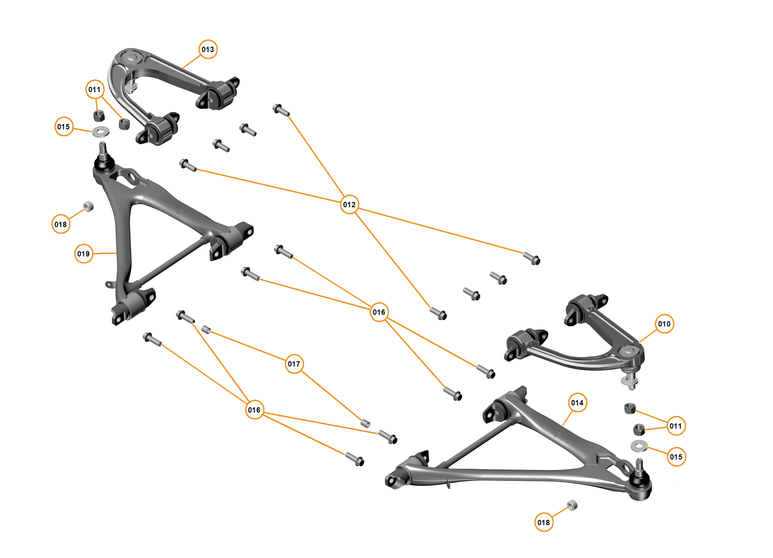

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12B0880CP	Wishbone - Front - Upper - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA229	NUT - M14X1.5 - LOCKED HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA457	SCREW - M10X30-10.9 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0881CP	Wishbone - Front - Upper - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0503CP	Wishbone - Front - Lower - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11B0320CP	WASHER - DIA 35X3.9X14.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX031	BOLT - M10X35 - HEX HEAD - FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0507CP	DOWEL - RING - SUSPENSION BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0494CP	SPACER - DIA 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12B0504CP	Wishbone - Front - Lower - RH	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12B0880CP	Wishbone - Front - Upper - LH	12B0880CP Wishbone - Front - Upper - LH Row ID: ID_BDBA0301_12B0880CP_ContPgHS;	-	1	Enquire
011	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX Row ID: ID_BDBA0302_00RA229_ContPgHS;	-	4	Enquire
012	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID_BDBA0303_00RA457_ContPgHS;	-	8	Enquire
013	12B0881CP	Wishbone - Front - Upper - RH	12B0881CP Wishbone - Front - Upper - RH Row ID: ID_BDBA0304_12B0881CP_ContPgHS;	-	1	Enquire
014	12B0503CP	Wishbone - Front - Lower - LH	12B0503CP Wishbone - Front - Lower - LH Row ID: ID_BDBA0305_12B0503CP_ContPgHS;	-	1	Enquire
015	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5 Row ID: ID_BDBA0306_11B0320CP_ContPgHS;	-	2	Enquire
016	00RX031	BOLT - M10X35 - HEX HEAD - FLANGE	00RX031 BOLT - M10X35 - HEX HEAD - FLANGE Superseded parts: 12B0520CP; Row ID: ID_BDBA0307_00RX031_ContPgHS;	-	8	Enquire
017	12B0507CP	DOWEL - RING - SUSPENSION BUSH	12B0507CP DOWEL - RING - SUSPENSION BUSH Row ID: ID_BDBA0308_12B0507CP_ContPgHS;	-	2	Enquire
018	12B0494CP	SPACER - DIA 20	12B0494CP SPACER - DIA 20 Row ID: ID_BDBA0309_12B0494CP_ContPgHS;	-	2	Enquire
019	12B0504CP	Wishbone - Front - Lower - RH	12B0504CP Wishbone - Front - Lower - RH Row ID: ID_BDBA0310_12B0504CP_ContPgHS;	-	1	Enquire
