32 - COOLING SYSTEM - 32.4 - LOW TEMPERATURE CIRCUIT & PIPES of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 32 - COOLING SYSTEM - 32.4 - LOW TEMPERATURE CIRCUIT & PIPES

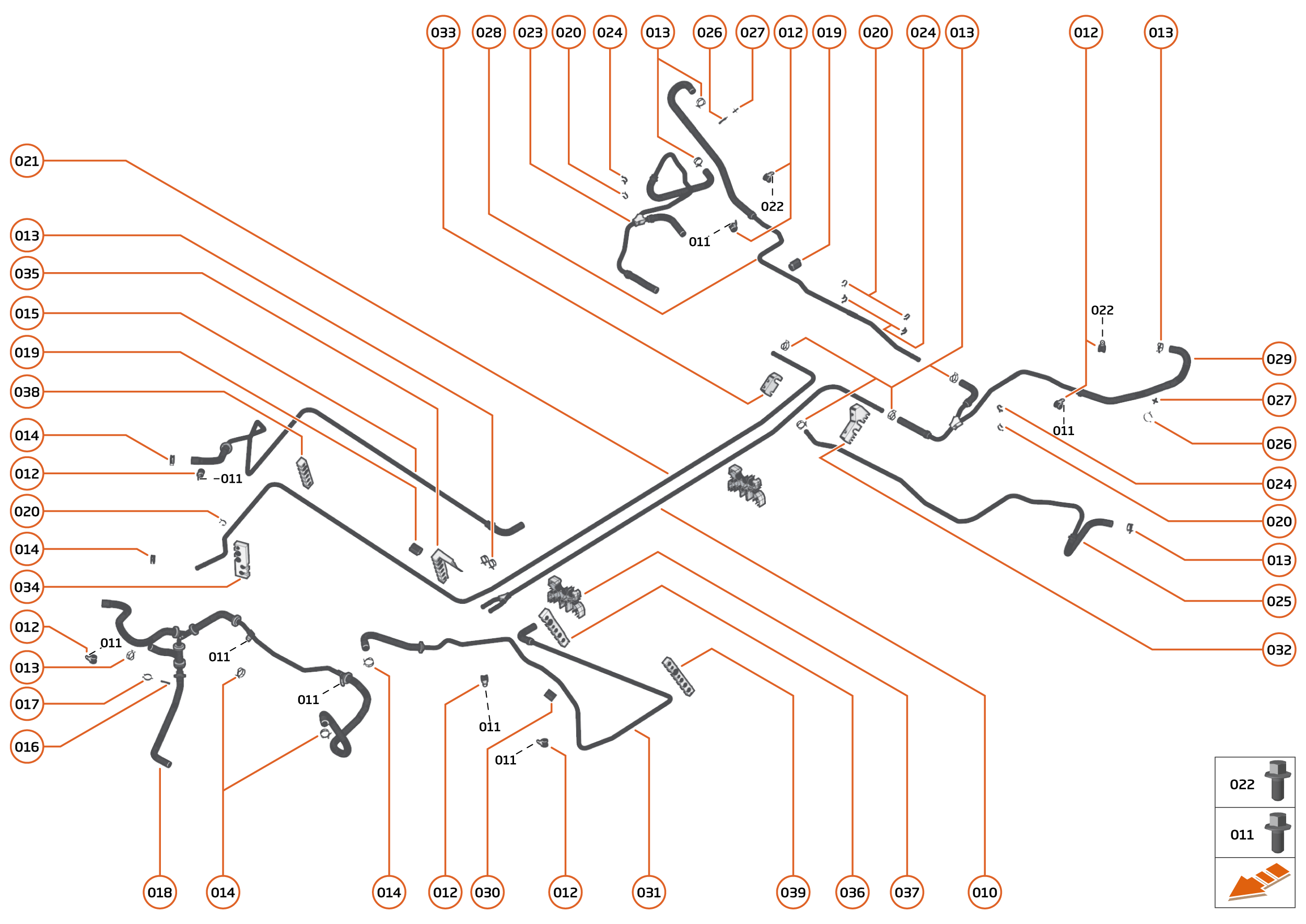

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11L0204CP	HOSE RETURN-LTR CIRCUIT-CTR	11L0204CP HOSE RETURN-LTR CIRCUIT-CTR Row ID: ID__11L0204CP_ContPgHS;	$406.20	1
011	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
012	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15 Row ID: ID__00RB191_ContPgHS;	-	2	Enquire
013	00RB201	CLAMP - SPRING BAND - 21X12	00RB201 CLAMP - SPRING BAND - 21X12 Row ID: ID__00RB201_ContPgHS;	-	1	Enquire
014	00RB202	CLAMP - SPRING BAND - 23X12	00RB202 CLAMP - SPRING BAND - 23X12 Row ID: ID__00RB202_ContPgHS;	-	2	Enquire
015	14LA035CP	HOSE - WATER CHARGE AIR COOLER - INLET - LH	14LA035CP HOSE - WATER CHARGE AIR COOLER - INLET - LH Row ID: ID__14LA035CP_ContPgHS;	-	1	Enquire
016	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
017	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID__00RB008_ContPgHS;	-	1	Enquire
018	14L0083CP	HOSE - WATER CHARGE AIR COOLER - OUTLET	14L0083CP HOSE - WATER CHARGE AIR COOLER - OUTLET Row ID: ID__14L0083CP_ContPgHS;	-	1	Enquire
019	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID__00RA357_ContPgHS;	-	1	Enquire
020	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID__00RB044_ContPgHS;	-	1	Enquire
021	22LA019GP	HOSE FEED-LTR CIRCUIT-CTR	22LA019GP HOSE FEED-LTR CIRCUIT-CTR Row ID: ID__22LA019GP_ContPgHS;	-	1	Enquire
022	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID__00RX003_ContPgHS;	-	2	Enquire
023	22LA040GP	LTR-INLET-HOSE-LH	22LA040GP LTR-INLET-HOSE-LH Row ID: ID__22LA040GP_ContPgHS;	-	1	Enquire
024	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
025	22LA043GP	HOSE-FEED-LTR-FR-RH	22LA043GP HOSE-FEED-LTR-FR-RH Row ID: ID__22LA043GP_ContPgHS;	-	1	Enquire
026	00RG018	SWIVEL CLIP - 22-24MM -MALE	00RG018 SWIVEL CLIP - 22-24MM -MALE Row ID: ID__00RG018_ContPgHS;	-	1	Enquire
027	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID__00RG019_ContPgHS;	-	1	Enquire
028	22LA042GP	LTR-OLET-HOSE-LH	22LA042GP LTR-OLET-HOSE-LH Row ID: ID__22LA042GP_ContPgHS;	-	1	Enquire
029	22LA041GP	LTR-OLET-HOSE-RH	22LA041GP LTR-OLET-HOSE-RH Row ID: ID__22LA041GP_ContPgHS;	-	1	Enquire
030	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	1	Enquire
031	22LA027GP	WCAC INLT HOSE RH	22LA027GP WCAC INLT HOSE RH Row ID: ID__22LA027GP_ContPgHS;	-	1	Enquire
032	11L0306CP	CLIP-7 WAY RH 24	11L0306CP CLIP-7 WAY RH 24 Row ID: ID__11L0306CP_ContPgHS;	$16.22	1
033	11L0309CP	CLIP - 2 WAY - LH	11L0309CP CLIP - 2 WAY - LH Row ID: ID__11L0309CP_ContPgHS;	-	1	Enquire
034	13L0224CP	PIPE CLIP - 5 WAY	13L0224CP PIPE CLIP - 5 WAY Row ID: ID__13L0224CP_ContPgHS;	-	1	Enquire
035	14L0150CP	CLIP - CHASSIS TUNNEL	14L0150CP CLIP - CHASSIS TUNNEL Row ID: ID__14L0150CP_ContPgHS;	-	1	Enquire
036	14L0151CP	PIPE CLIP - 8 WAY	14L0151CP PIPE CLIP - 8 WAY Row ID: ID__14L0151CP_ContPgHS;	-	1	Enquire
037	14L0125CP	CLIP - TUNNEL - 12 WAY	14L0125CP CLIP - TUNNEL - 12 WAY Row ID: ID__14L0125CP_ContPgHS;	-	2	Enquire
038	13L0214CP	PIPE CLIP - REAR - LH	13L0214CP PIPE CLIP - REAR - LH Row ID: ID__13L0214CP_ContPgHS;	-	1	Enquire
039	13L0211CP	PIPE CLIP - REAR - RIGHT	13L0211CP PIPE CLIP - REAR - RIGHT Row ID: ID__13L0211CP_ContPgHS;	-	1	Enquire
