29 - EMISSIONS SYSTEM - 29.1 - SECONDARY AIR INJECTION SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 29 - EMISSIONS SYSTEM - 29.1 - SECONDARY AIR INJECTION SYSTEM

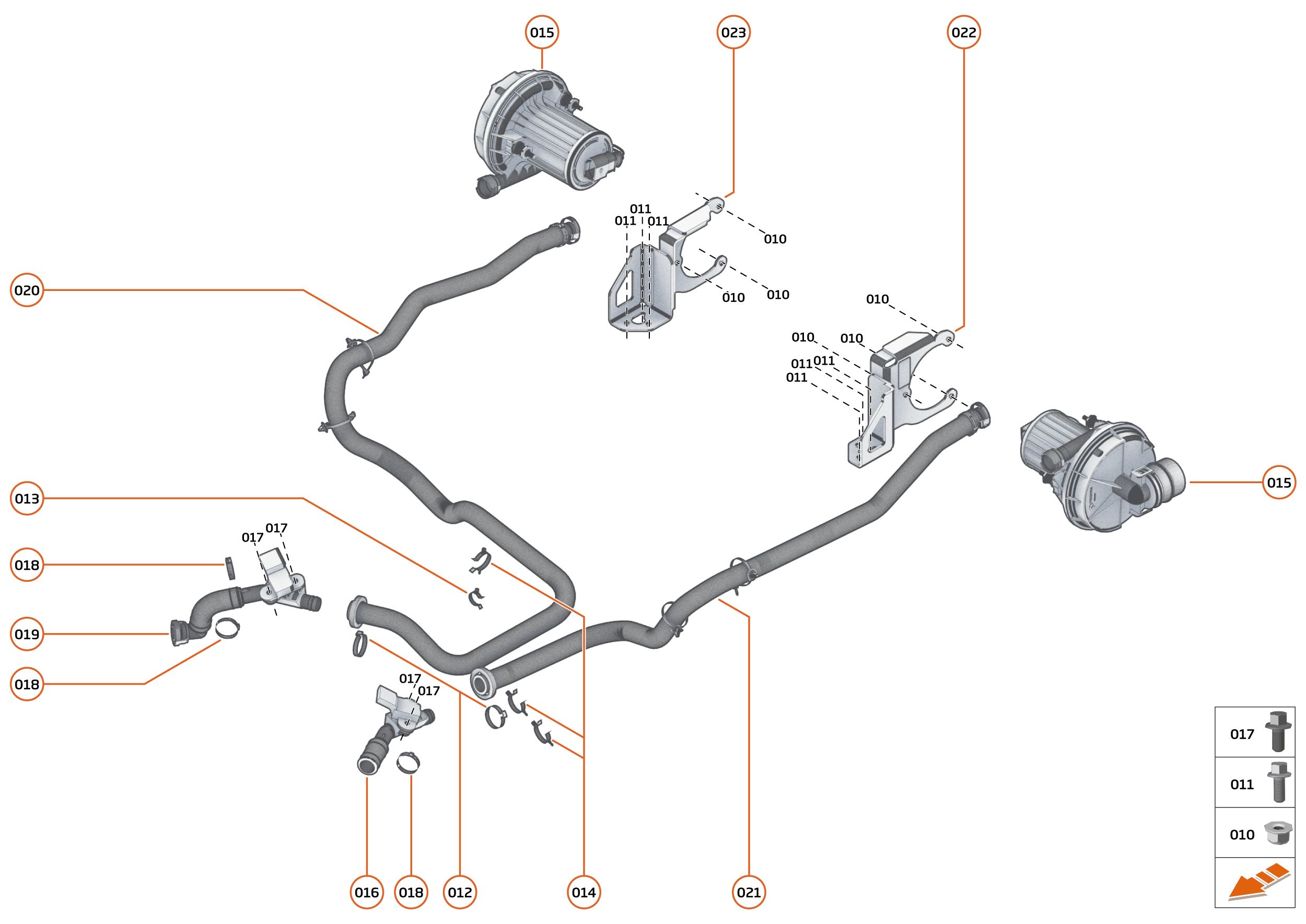

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	6	Enquire
011	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
012	00RB137	HOSE CLAMP - 28.6 - 706R - OETIKER	00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Row ID: ID__00RB137_ContPgHS;	-	2	Enquire
013	00RB141	SWIVEL CLIP - FEMALE CSC9	00RB141 SWIVEL CLIP - FEMALE CSC9 Row ID: ID__00RB141_ContPgHS;	-	2	Enquire
014	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Row ID: ID__00RG028_ContPgHS;	-	3	Enquire
015	12F0750CP	PUMP - SECONDARY AIR	12F0750CP PUMP - SECONDARY AIR Row ID: ID__12F0750CP_ContPgHS;	-	2	Enquire
016	13F0335CP	HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH	13F0335CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH Row ID: ID__13F0335CP_ContPgHS;	-	1	Enquire
017	11F1785CP	BOLT - HEX - M5X10	11F1785CP BOLT - HEX - M5X10 Row ID: ID__11F1785CP_ContPgHS;	-	2	Enquire
018	11F1862CP	OETIKER CLIP - 26.9 - 30.1MM	11F1862CP OETIKER CLIP - 26.9 - 30.1MM Row ID: ID__11F1862CP_ContPgHS;	-	1	Enquire
019	13F0336CP	HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH	13F0336CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH Row ID: ID__13F0336CP_ContPgHS;	-	1	Enquire
020	22FA031GP	HOSE SECONDARY AIR RH	22FA031GP HOSE SECONDARY AIR RH Row ID: ID__22FA031GP_ContPgHS;	-	1	Enquire
021	22FA032GP	HOSE SECONDARY AIR LH	22FA032GP HOSE SECONDARY AIR LH Row ID: ID__22FA032GP_ContPgHS;	-	1	Enquire
022	22FA033GP	BRKT LH-SECONDARY AIR PUMP	22FA033GP BRKT LH-SECONDARY AIR PUMP Row ID: ID__22FA033GP_ContPgHS;	-	1	Enquire
023	22FA034GP	BRKT RH-SECONDARY AIR PUMP	22FA034GP BRKT RH-SECONDARY AIR PUMP Row ID: ID__22FA034GP_ContPgHS;	-	1	Enquire
