32 - COOLING SYSTEM - 32.2 - HIGH TEMP MAIN RADIATORS & FANS of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 32 - COOLING SYSTEM - 32.2 - HIGH TEMP MAIN RADIATORS & FANS

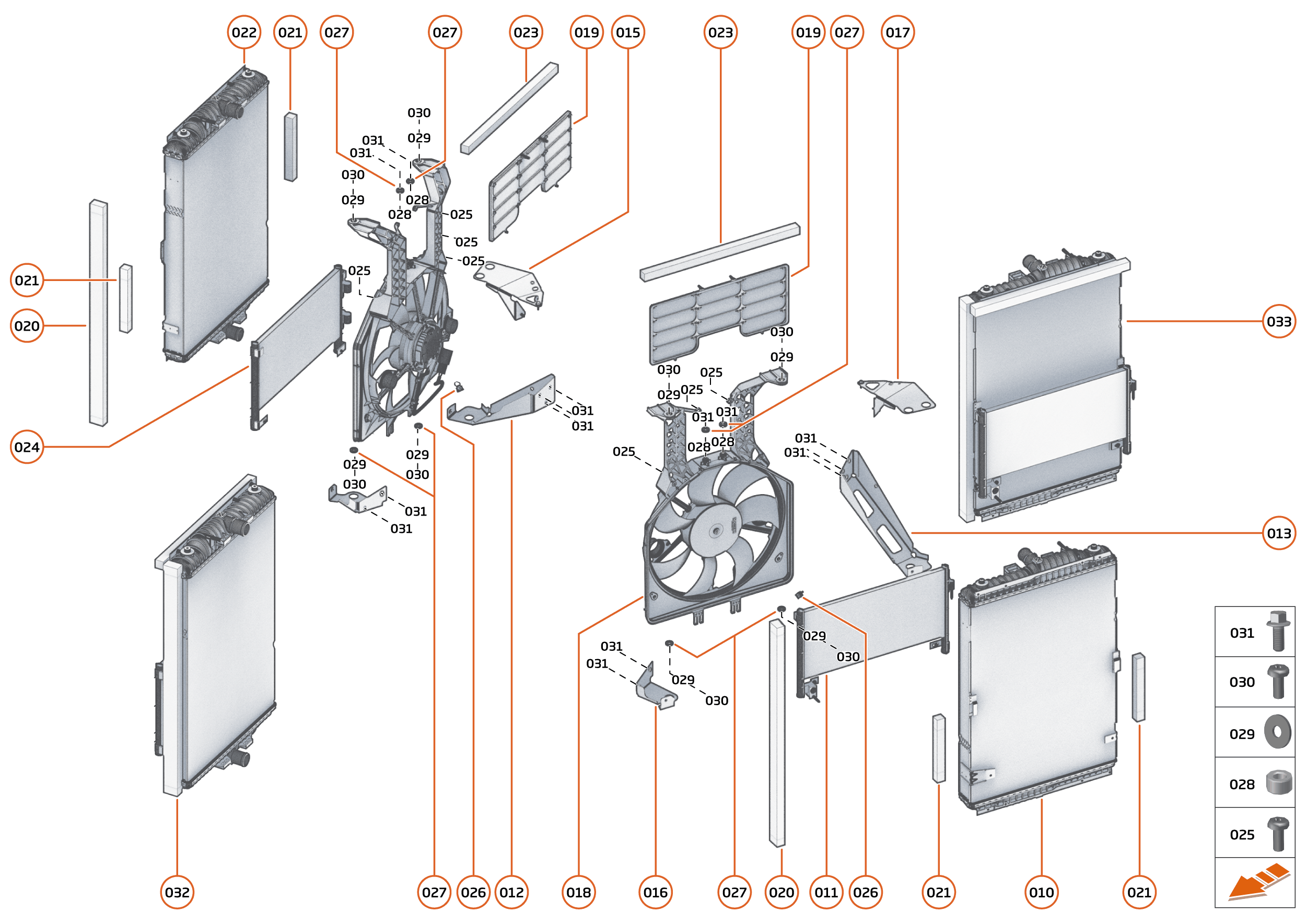

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11L0392CP	RADIATOR - ENGINE COOLANT - LH	11L0392CP RADIATOR - ENGINE COOLANT - LH Row ID: ID__11L0392CP_ContPgHS;	-	1	Enquire
011	11A2859CP	CONDENSER - HVAC - LH	11A2859CP CONDENSER - HVAC - LH Row ID: ID__11A2859CP_ContPgHS;	-	1	Enquire
012	22LA013GP	BRKT-MNTG-RAD-LWR-AFT-RH	22LA013GP BRKT-MNTG-RAD-LWR-AFT-RH Row ID: ID__22LA013GP_ContPgHS;	-	1	Enquire
013	22LA012GP	BRKT-MNTG-RAD-LWR-AFT-LH	22LA012GP BRKT-MNTG-RAD-LWR-AFT-LH Row ID: ID__22LA012GP_ContPgHS;	-	1	Enquire
014	22LA011GP	BRKT-MNTG-RAD-LWR-FORE-RH	22LA011GP BRKT-MNTG-RAD-LWR-FORE-RH Row ID: ID__22LA011GP_ContPgHS;	-	1	Enquire
015	22LA010GP	BRKT-MNTG-RAD-UPR-RH	22LA010GP BRKT-MNTG-RAD-UPR-RH Row ID: ID__22LA010GP_ContPgHS;	-	1	Enquire
016	22LA009GP	BRKT-MNTG-RAD-LWR-FORE-LH	22LA009GP BRKT-MNTG-RAD-LWR-FORE-LH Row ID: ID__22LA009GP_ContPgHS;	-	1	Enquire
017	22LA008GP	BRKT-MNTG-RAD-UPR-LH	22LA008GP BRKT-MNTG-RAD-UPR-LH Row ID: ID__22LA008GP_ContPgHS;	-	1	Enquire
018	13L0208CP	FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR	13L0208CP FAN ASSEMBLY - HIGH TEMPERATURE RADIATOR Row ID: ID__13L0208CP_ContPgHS;	-	1	Enquire
019	13L0207CP	FLAP HOUSING - RADIATOR	13L0207CP FLAP HOUSING - RADIATOR Row ID: ID__13L0207CP_ContPgHS;	-	1	Enquire
020	11L0378CP	SEAL - RADIATOR TO BODY - FRONT	11L0378CP SEAL - RADIATOR TO BODY - FRONT Row ID: ID__11L0378CP_ContPgHS;	-	1	Enquire
021	11L0377CP	SEAL - RADIATOR TO CONDENSER	11L0377CP SEAL - RADIATOR TO CONDENSER Row ID: ID__11L0377CP_ContPgHS;	-	2	Enquire
022	11L0376CP	RADIATOR - ENGINE COOLANT - RH	11L0376CP RADIATOR - ENGINE COOLANT - RH Row ID: ID__11L0376CP_ContPgHS;	-	1	Enquire
023	11L0250CP	SEAL - RADIATOR TO BODY - TOP	11L0250CP SEAL - RADIATOR TO BODY - TOP Row ID: ID__11L0250CP_ContPgHS;	-	1	Enquire
024	11A7098CP	CONDENSER - HVAC - RH	11A7098CP CONDENSER - HVAC - RH Row ID: ID__11A7098CP_ContPgHS;	-	1	Enquire
025	00RA138	SCREW-TORX HEAD-DIA4X14-TF	00RA138 SCREW-TORX HEAD-DIA4X14-TF Row ID: ID__00RA138_ContPgHS;	-	4	Enquire
026	00RG024	CABLE TIE - 90 DEG - EDGE PANEL	00RG024 CABLE TIE - 90 DEG - EDGE PANEL Row ID: ID__00RG024_ContPgHS;	-	1	Enquire
027	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID__00RG011_ContPgHS;	-	1	Enquire
028	00RC074	SPACER - 6.5 X 12.7 X 6.4	00RC074 SPACER - 6.5 X 12.7 X 6.4 Row ID: ID__00RC074_ContPgHS;	-	2	Enquire
029	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	1	Enquire
030	00RA353	SCREW - 6X14 - THREADFORMING - TORX - FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX - FLANGE Row ID: ID__00RA353_ContPgHS;	-	2	Enquire
031	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
032	11L0360CP	RADIATOR - ENGINE COOLANT - LH	11L0360CP RADIATOR - ENGINE COOLANT - LH Row ID: ID__11L0360CP_ContPgHS;	-	1	Enquire
033	11L0359CP	RADIATOR - ENGINE COOLANT - RH	11L0359CP RADIATOR - ENGINE COOLANT - RH Row ID: ID__11L0359CP_ContPgHS;	-	1	Enquire
