31 - FUEL SYSTEM - 31.2 - FUEL TANK RETENTION of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 31 - FUEL SYSTEM - 31.2 - FUEL TANK RETENTION

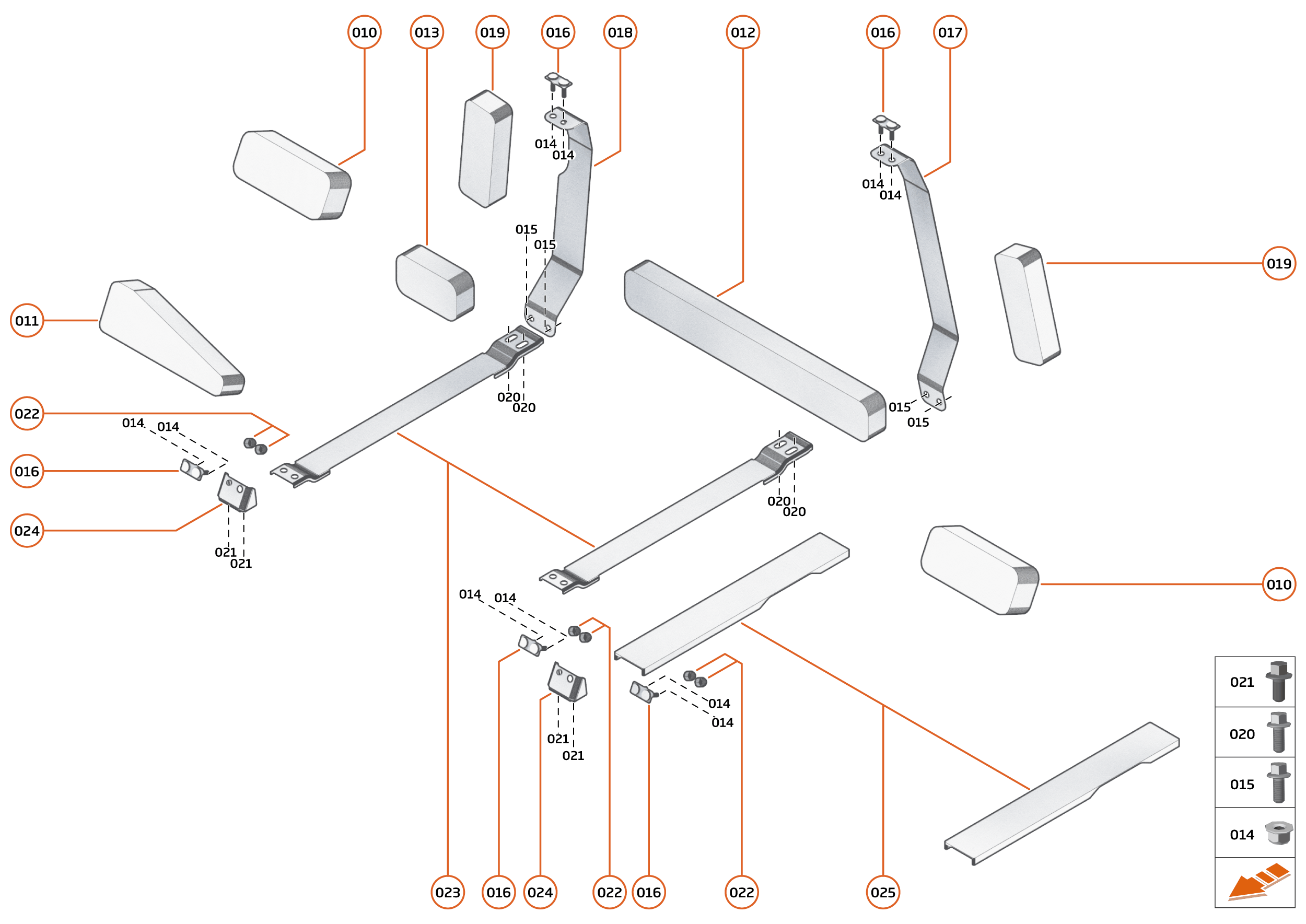

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13K0074CP	PAD - FUEL TANK - BULKHEAD - LOWER	13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Row ID: ID__13K0074CP_ContPgHS;	-	2	Enquire
011	14K0143CP	PAD - FUEL TANK - BULKHEAD - LOWER - RH	14K0143CP PAD - FUEL TANK - BULKHEAD - LOWER - RH Row ID: ID__14K0143CP_ContPgHS;	-	1	Enquire
012	14KA031CP	PAD - FUEL TANK - CROSS MEMBER	14KA031CP PAD - FUEL TANK - CROSS MEMBER Row ID: ID__14KA031CP_ContPgHS;	-	1	Enquire
013	14KA032CP	PAD - FUEL TANK - CROSS MEMBER - RH	14KA032CP PAD - FUEL TANK - CROSS MEMBER - RH Row ID: ID__14KA032CP_ContPgHS;	-	1	Enquire
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
015	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	3	Enquire
016	11K0105CP	STUD PLATE - M6X18 - FUEL TANK	11K0105CP STUD PLATE - M6X18 - FUEL TANK Row ID: ID__11K0105CP_ContPgHS;	-	2	Enquire
017	14KA005CP	RETAINING STRAP - FUEL TANK - LH	14KA005CP RETAINING STRAP - FUEL TANK - LH Row ID: ID__14KA005CP_ContPgHS;	-	1	Enquire
018	14KA006CP	RETAINING STRAP - FUEL TANK - RH	14KA006CP RETAINING STRAP - FUEL TANK - RH Row ID: ID__14KA006CP_ContPgHS;	-	1	Enquire
019	14KA033CP	PAD - FUEL TANK - REAR - CENTRE	14KA033CP PAD - FUEL TANK - REAR - CENTRE Row ID: ID__14KA033CP_ContPgHS;	-	2	Enquire
020	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	1	Enquire
021	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
022	00RG010	NUT PROTECTOR - M6 -REEVITE	00RG010 NUT PROTECTOR - M6 -REEVITE Row ID: ID__00RG010_ContPgHS;	-	4	Enquire
023	14K0068CP	MOUNTING STRAP - FUEL TANK	14K0068CP MOUNTING STRAP - FUEL TANK Row ID: ID__14K0068CP_ContPgHS;	-	2	Enquire
024	14KA024CP	BRACKET - FUEL TANK - LOWER - FRONT	14KA024CP BRACKET - FUEL TANK - LOWER - FRONT Row ID: ID__14KA024CP_ContPgHS;	-	2	Enquire
025	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK Row ID: ID__14KA046CP_ContPgHS;	-	1	Enquire
