27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 27 - AIR INDUCTION SYSTEMS - AIS - 27.1 - AIS - LOW PRESSURE SYSTEM

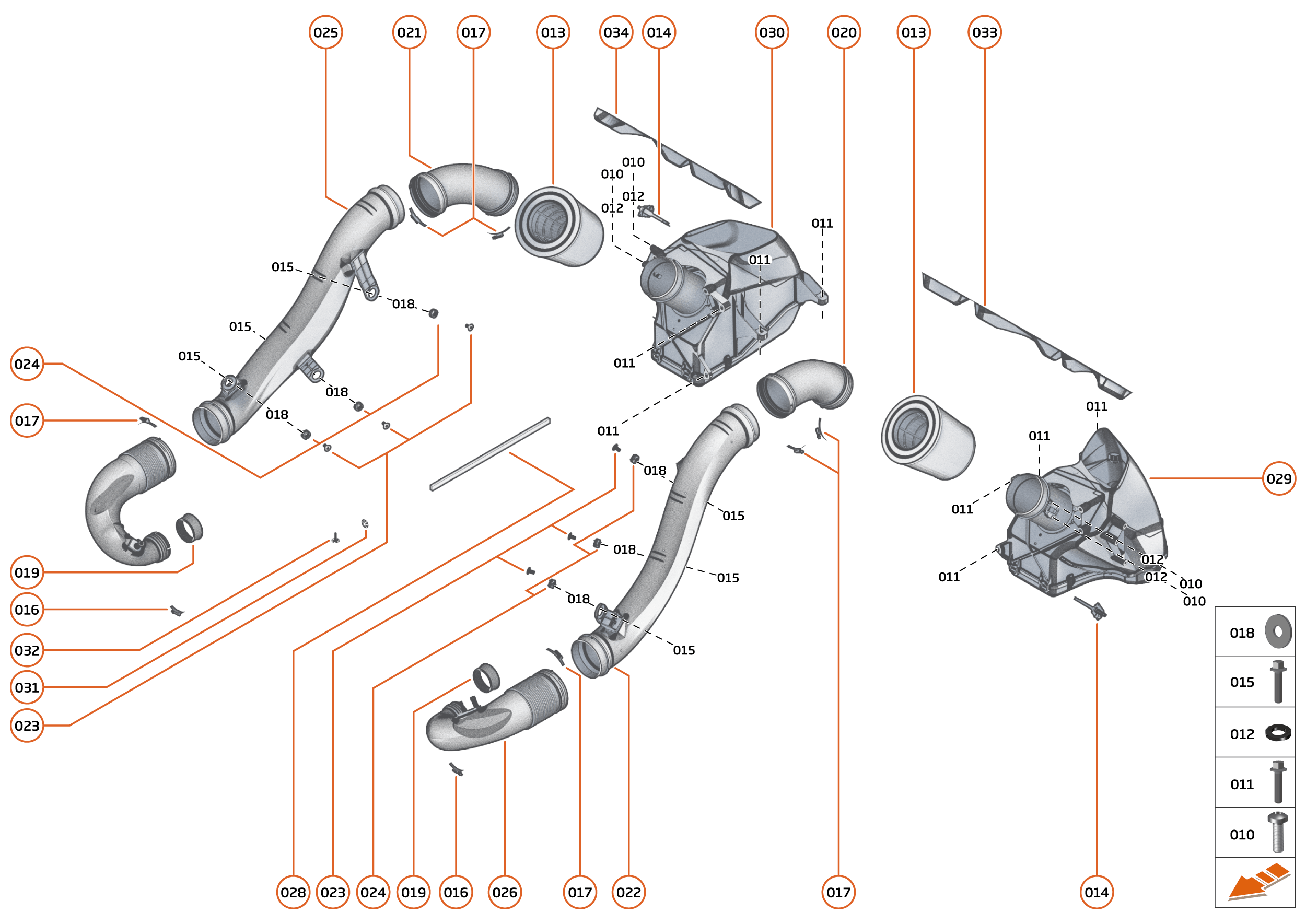

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA464	SCREW - M4X12 - BUTTON HEAD - SOCKET	00RA464 SCREW - M4X12 - BUTTON HEAD - SOCKET Row ID: ID__00RA464_ContPgHS;	-	4	Enquire
011	00RA606	BOLT - M8X1.25 - HEX	00RA606 BOLT - M8X1.25 - HEX Row ID: ID__00RA606_ContPgHS;	-	8	Enquire
012	00RC027	WASHER - M4 FORM C - LARGE	00RC027 WASHER - M4 FORM C - LARGE Row ID: ID__00RC027_ContPgHS;	-	2	Enquire
013	14F0200CP	FILTER - AIR - ENGINE	14F0200CP FILTER - AIR - ENGINE Row ID: ID__14F0200CP_ContPgHS;	-	1	Enquire
014	14F0362CP	SENSOR - MASS AIR FLOW	14F0362CP SENSOR - MASS AIR FLOW Row ID: ID__14F0362CP_ContPgHS;	-	2	Enquire
015	00RA073	SCREW - M6X30 - HEX	00RA073 SCREW - M6X30 - HEX Row ID: ID__00RA073_ContPgHS;	-	1	Enquire
016	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Row ID: ID__00RB030_ContPgHS;	-	2	Enquire
017	00RB031	CLAMP - HOSE - 90-110	00RB031 CLAMP - HOSE - 90-110 Row ID: ID__00RB031_ContPgHS;	-	6	Enquire
018	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	1	Enquire
019	11F0471CP	SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE	11F0471CP SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE Row ID: ID__11F0471CP_ContPgHS;	-	2	Enquire
020	14F0203CP	HOSE - CLEAN AIRBOX TO DUCT - LH	14F0203CP HOSE - CLEAN AIRBOX TO DUCT - LH Row ID: ID__14F0203CP_ContPgHS;	-	1	Enquire
021	14F0204CP	HOSE - CLEAN AIRBOX TO DUCT - RH	14F0204CP HOSE - CLEAN AIRBOX TO DUCT - RH Row ID: ID__14F0204CP_ContPgHS;	-	1	Enquire
022	14FA117CP	DUCT - CLEAN AIR - LH	14FA117CP DUCT - CLEAN AIR - LH Row ID: ID__14FA117CP_ContPgHS;	-	1	Enquire
023	11F0889CP	SPACER - TOPHAT - AIRBOX	11F0889CP SPACER - TOPHAT - AIRBOX Row ID: ID__11F0889CP_ContPgHS;	-	1	Enquire
024	14F0586CP	GROMMET - CLEAN AIR BOX	14F0586CP GROMMET - CLEAN AIR BOX Row ID: ID__14F0586CP_ContPgHS;	-	1	Enquire
025	14FA119CP	DUCT - CLEAN AIR - RH	14FA119CP DUCT - CLEAN AIR - RH Row ID: ID__14FA119CP_ContPgHS;	-	1	Enquire
026	22FA024GP	HOSE CLEAN AIR LH-DUCT TO TC	22FA024GP HOSE CLEAN AIR LH-DUCT TO TC Row ID: ID__22FA024GP_ContPgHS;	-	1	Enquire
027	22FA025GP	HOSE CLEAN AIR RH-DUCT TO TC	22FA025GP HOSE CLEAN AIR RH-DUCT TO TC Row ID: ID__22FA025GP_ContPgHS;	-	1	Enquire
028	14F0670CP	SEAL - DIRTY AIR DUCT TO AIRBOX	14F0670CP SEAL - DIRTY AIR DUCT TO AIRBOX Row ID: ID__14F0670CP_ContPgHS;	-	1	Enquire
029	14F0198CP	AIRBOX - LH	14F0198CP AIRBOX - LH Row ID: ID__14F0198CP_ContPgHS;	-	1	Enquire
030	14FA250CP	AIRBOX - RH	14FA250CP AIRBOX - RH Row ID: ID__14FA250CP_ContPgHS;	-	1	Enquire
030	14F0201CP	AIRBOX - RH	14F0201CP AIRBOX - RH Row ID: ID__14F0201CP_ContPgHS;	-	1	Enquire
031	00RC039	WASHER - M6 - STAR LOCK	00RC039 WASHER - M6 - STAR LOCK Row ID: ID__00RC039_ContPgHS;	-	5	Enquire
032	00RL027	STUD - M6X20 - BIG HEAD ROUND	00RL027 STUD - M6X20 - BIG HEAD ROUND Row ID: ID__00RL027_ContPgHS;	-	5	Enquire
033	14FA175CP	NVH - AIRBOX - LH	14FA175CP NVH - AIRBOX - LH Row ID: ID__14FA175CP_ContPgHS;	-	1	Enquire
034	14FA176CP	NVH - AIRBOX - RH	14FA176CP NVH - AIRBOX - RH Row ID: ID__14FA176CP_ContPgHS;	-	1	Enquire
