24 - LUBRICATION SYSTEM OFF - ENGINE - 24.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 24 - LUBRICATION SYSTEM OFF - ENGINE - 24.3 - ENGINE OIL FILL SYSTEM

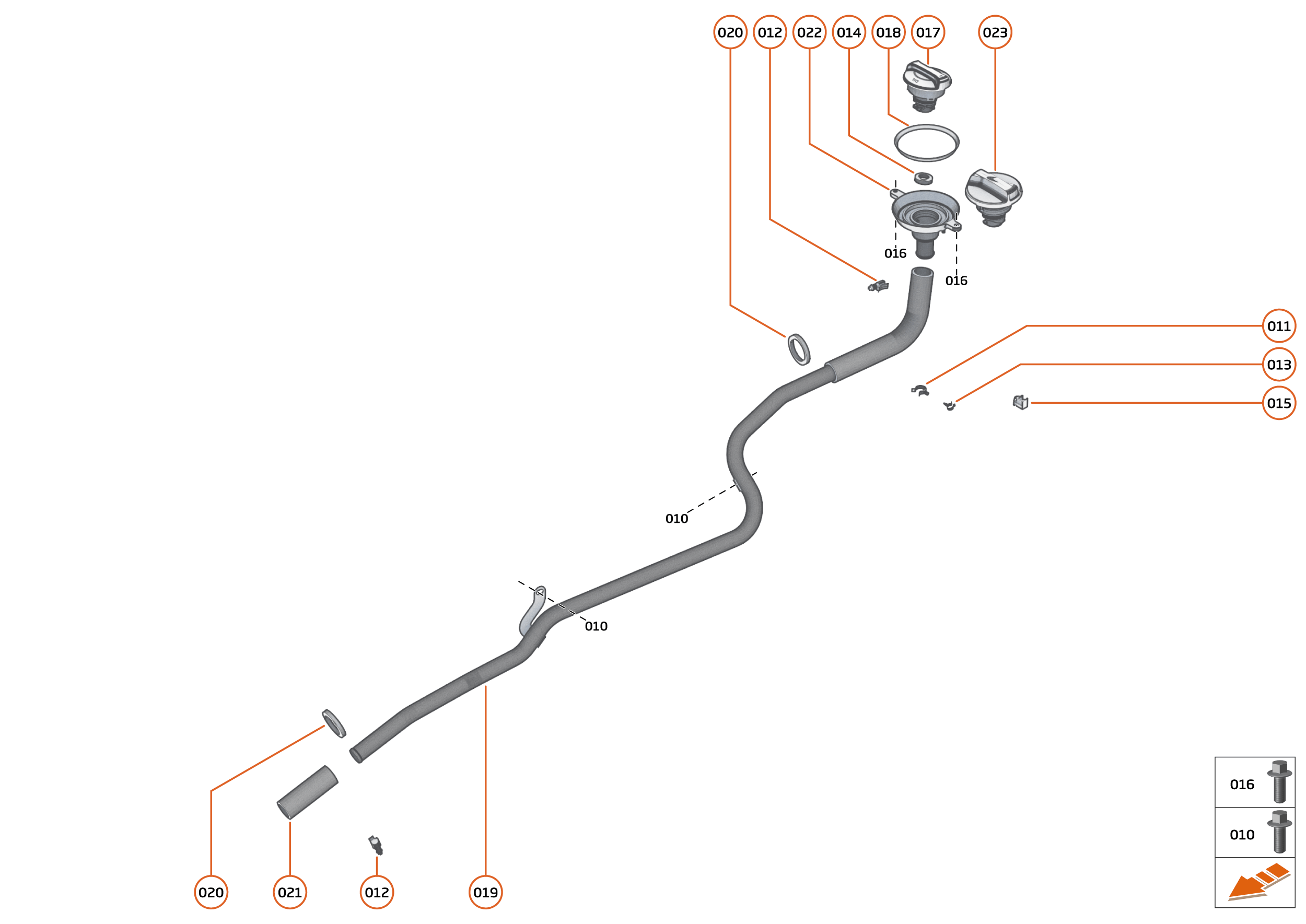

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
011	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
012	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID__00RB053_ContPgHS;	-	1	Enquire
013	00RB078	SWIVEL CLIP - 8-9MM - MALE	00RB078 SWIVEL CLIP - 8-9MM - MALE Row ID: ID__00RB078_ContPgHS;	-	2	Enquire
014	00RB096	STEPLESS EAR CLAMP - 16.2-706R	00RB096 STEPLESS EAR CLAMP - 16.2-706R Row ID: ID__00RB096_ContPgHS;	-	1	Enquire
015	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
016	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	2	Enquire
017	13FA051CP	CAP - ENGINE - OIL FILLER	13FA051CP CAP - ENGINE - OIL FILLER Row ID: ID__13FA051CP_ContPgHS;	-	1	Enquire
018	11F0895CP	SEAL - OIL FILLER BOWL	11F0895CP SEAL - OIL FILLER BOWL Row ID: ID__11F0895CP_ContPgHS;	-	1	Enquire
019	22FA138GP	OIL TANK FILLER ASSY	22FA138GP OIL TANK FILLER ASSY Row ID: ID__22FA138GP_ContPgHS;	-	1	Enquire
020	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR Row ID: ID__00RB139_ContPgHS;	-	1	Enquire
021	15FA293CP	HOSE - OIL FILLER TUBE	15FA293CP HOSE - OIL FILLER TUBE Row ID: ID__15FA293CP_ContPgHS;	-	1	Enquire
022	15FA178CP	BOWL - OIL FILLER	15FA178CP BOWL - OIL FILLER Row ID: ID__15FA178CP_ContPgHS;	-	1	Enquire
023	22FA149GP	ASSY MACHINED CAP AND COVER OIL FILL	22FA149GP ASSY MACHINED CAP AND COVER OIL FILL Row ID: ID__22FA149GP_ContPgHS;	-	1	Enquire
