22 - ENGINE - 22.7 - BREATHER ASSEMBLY AND FUEL PURGE of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 22 - ENGINE - 22.7 - BREATHER ASSEMBLY AND FUEL PURGE

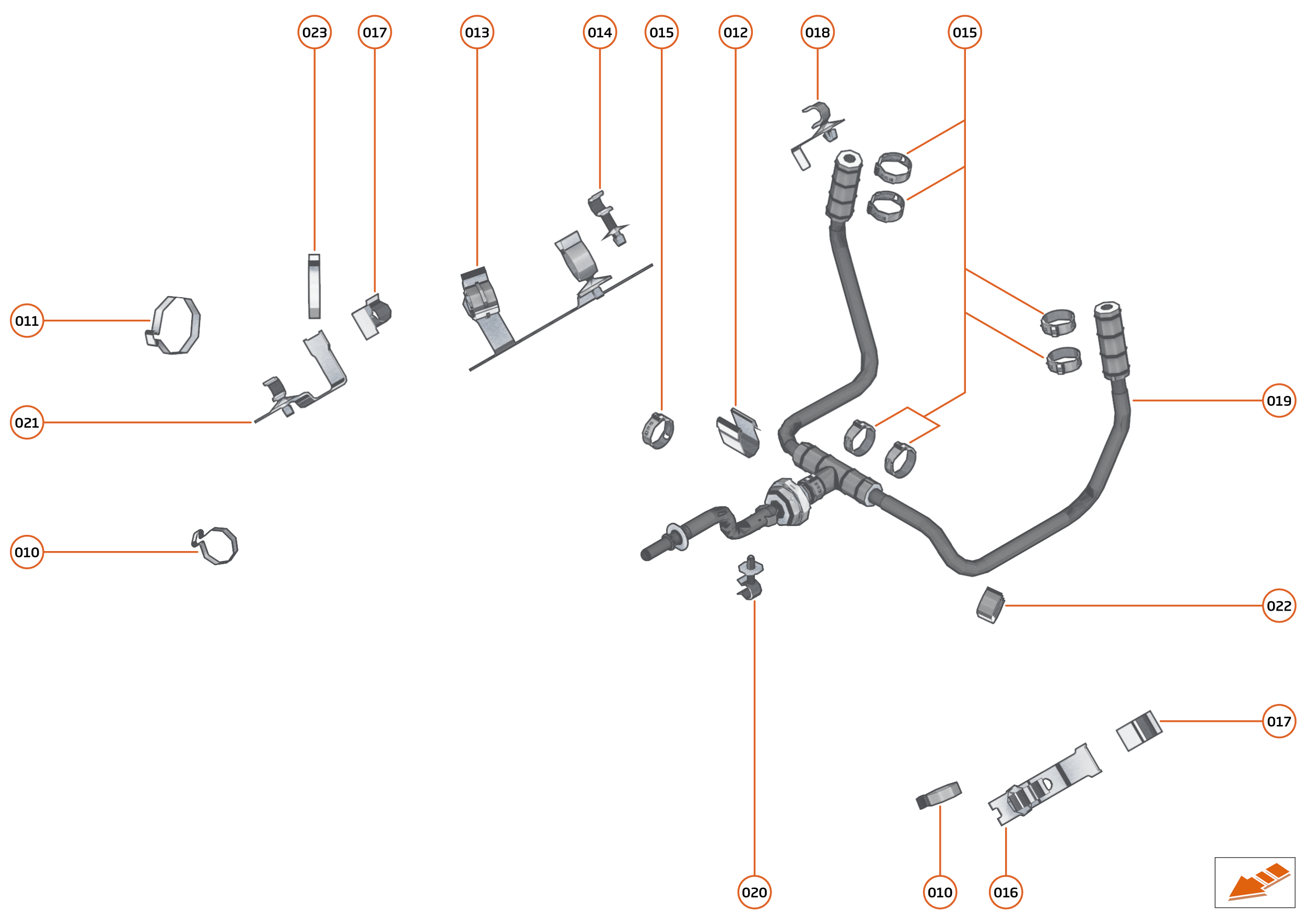

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0 Row ID: ID__00RB094_ContPgHS;	-	2	Enquire
011	00RB139	STEPLESS EAR CLAMP - 34.6-706DR	00RB139 STEPLESS EAR CLAMP - 34.6-706DR Row ID: ID__00RB139_ContPgHS;	-	1	Enquire
012	11F2029CP	CLIP - RAYMOND - 2WAY - 13493	11F2029CP CLIP - RAYMOND - 2WAY - 13493 Row ID: ID__11F2029CP_ContPgHS;	-	1	Enquire
013	11F1681CP	BRACKET - PCV - INC CLIPS	11F1681CP BRACKET - PCV - INC CLIPS Row ID: ID__11F1681CP_ContPgHS;	-	1	Enquire
014	12F0710CP	CLIP - ONE WAY - RAYMOND	12F0710CP CLIP - ONE WAY - RAYMOND Row ID: ID__12F0710CP_ContPgHS;	-	1	Enquire
015	11F1856CP	OETIKER CLIP - 15.3-18.5	11F1856CP OETIKER CLIP - 15.3-18.5 Row ID: ID__11F1856CP_ContPgHS;	-	3	Enquire
016	11F2030CP	BRACKET - CAM COVER - LH - CCV - VAC	11F2030CP BRACKET - CAM COVER - LH - CCV - VAC Row ID: ID__11F2030CP_ContPgHS;	-	3	Enquire
017	11F1933CP	CLIP - RAYMOND - 014434	11F1933CP CLIP - RAYMOND - 014434 Row ID: ID__11F1933CP_ContPgHS;	-	1	Enquire
018	14F0088CP	BRACKET CLIP - M8	14F0088CP BRACKET CLIP - M8 Row ID: ID__14F0088CP_ContPgHS;	-	1	Enquire
019	14F0589CP	FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE	14F0589CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE Row ID: ID__14F0589CP_ContPgHS;	-	1	Enquire
020	14F0676CP	CLIP - RAYMOND - 201151 - 10MM	14F0676CP CLIP - RAYMOND - 201151 - 10MM Row ID: ID__14F0676CP_ContPgHS;	-	1	Enquire
021	14F0647CP	BRACKET - CAM COVER - RH - CCV - VAC	14F0647CP BRACKET - CAM COVER - RH - CCV - VAC Row ID: ID__14F0647CP_ContPgHS;	-	1	Enquire
022	14F0398CP	CLIP - RAYMOND - 18900 - 12MM	14F0398CP CLIP - RAYMOND - 18900 - 12MM Row ID: ID__14F0398CP_ContPgHS;	-	1	Enquire
023	14F0643CP	CLAMP - STEPLESS EAR - 31.5 DIA	14F0643CP CLAMP - STEPLESS EAR - 31.5 DIA Row ID: ID__14F0643CP_ContPgHS;	-	1	Enquire
024	22FA300GP	ASSY - CCV VALVES AND HOSES	22FA300GP ASSY - CCV VALVES AND HOSES Row ID: ID__22FA300GP_ContPgHS;	-	1	Enquire
025	22FA311GP	ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-LH - MY22 ONWARDS	22FA311GP ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-LH - MY22 ONWARDS Row ID: ID__22FA311GP_ContPgHS;	-	1	Enquire
026	22FA312GP	ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-RH - MY22 ONWARDS	22FA312GP ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-RH - MY22 ONWARDS Row ID: ID__22FA312GP_ContPgHS;	-	1	Enquire
