McLaren GT McLaren GT - 22 - ENGINE - 22.10 - ENGINE WATER PUMP AND WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

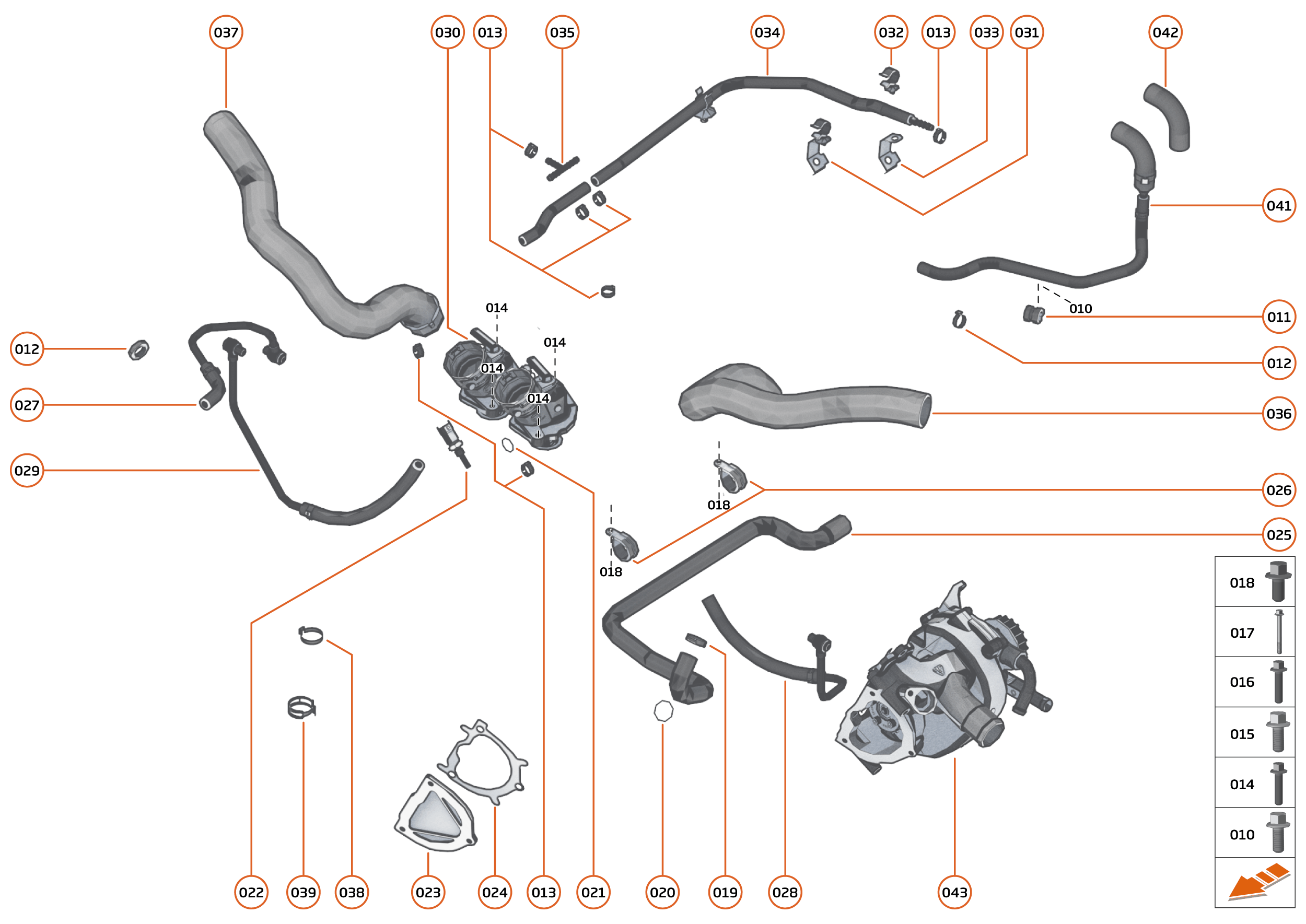

22 - ENGINE - 22.10 - ENGINE WATER PUMP AND WATER CIRCUIT of McLaren McLaren GT McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 3 Enquire
011 00RB005
P CLIP - DIA 16
Row ID: ID__00RB005_ContPgHS; 		- 1 Enquire
012 00RB093
OETIKER CLIP - 16.6
Row ID: ID__00RB093_ContPgHS; 		- 1 Enquire
013 11F1863CP
OETIKER CLIP - 14.1-16.6
Row ID: ID__11F1863CP_ContPgHS; 		- 1 Enquire
014 11F0824CP
BOLT - M6X30 - ENGINE
Row ID: ID__11F0824CP_ContPgHS; 		- 4 Enquire
015 11F1782CP
BOLT - M6X10 - HEX
Row ID: ID__11F1782CP_ContPgHS; 		- 2 Enquire
016 11F1783CP
BOLT - M8X30 - HEX
Row ID: ID__11F1783CP_ContPgHS; 		- 4 Enquire
017 11F1784CP
BOLT - M6X80 - HEX
Row ID: ID__11F1784CP_ContPgHS; 		- 4 Enquire
018 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10
Row ID: ID__11F1791CP_ContPgHS; 		- 2 Enquire
019 11F1859CP
OETIKER CLAMP - 24.1MM
Row ID: ID__11F1859CP_ContPgHS; 		- 1 Enquire
020 11F1955CP
SEAL - O-RING - 23.2
Row ID: ID__11F1955CP_ContPgHS; 		- 1 Enquire
021 11F1954CP
O-RING - 16-0X2-0
Row ID: ID__11F1954CP_ContPgHS; 		- 1 Enquire
022 11F2418CP
SENSOR - HEAD TEMPERATURE
Row ID: ID__11F2418CP_ContPgHS; 		- 1 Enquire
023 11F2433CP
COVER - WATER PUMP - ENGINE
Row ID: ID__11F2433CP_ContPgHS; 		- 1 Enquire
024 11F2434CP
GASKET SERVICE COVER WATER PUMP
Row ID: ID__11F2434CP_ContPgHS;
IN STOCK 		$15.21 1
025 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER
Row ID: ID__13F0866CP_ContPgHS; 		- 1 Enquire
026 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE
Row ID: ID__11F2412CP_ContPgHS; 		- 2 Enquire
027 13F0902CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH
Row ID: ID__13F0902CP_ContPgHS; 		- 1 Enquire
028 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Row ID: ID__13F0903CP_ContPgHS; 		- 1 Enquire
029 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Row ID: ID__13F0904CP_ContPgHS; 		- 1 Enquire
030 13FA050CP
THERMOSTAT
Row ID: ID__13FA050CP_ContPgHS;
IN STOCK 		$243.70 2
031 14F0411CP
BRACKET - DEGAS HOSE
Row ID: ID__14F0411CP_ContPgHS; 		- 1 Enquire
032 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM
Row ID: ID__14F0414CP_ContPgHS; 		- 1 Enquire
033 14F0572CP
BRACKET - DEGAS HOSE
Row ID: ID__14F0572CP_ContPgHS; 		- 1 Enquire
034 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE
Row ID: ID__14F0573CP_ContPgHS; 		- 1 Enquire
035 11F1674CP
T PIECE - DEGAS
Row ID: ID__11F1674CP_ContPgHS; 		- 1 Enquire
036 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH
Row ID: ID__14F0654CP_ContPgHS; 		- 1 Enquire
037 14F0655CP
TOP HOSE - ENGINE RADIATOR - RH
Row ID: ID__14F0655CP_ContPgHS; 		- 1 Enquire
038 00RB143
CLAMP - 25.6-706R
Row ID: ID__00RB143_ContPgHS; 		- 1 Enquire
039 00RB204
CLAMP - SPRING BAND - 27X12
Row ID: ID__00RB204_ContPgHS; 		- 1 Enquire
040 00RX003
BOLT - M6X1X12 - HEX
Row ID: ID__00RX003_ContPgHS; 		- 2 Enquire
041 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE
Row ID: ID__14F0636CP_ContPgHS; 		- 1 Enquire
042 14F0638CP
HOSE - DEGAS
Row ID: ID__14F0638CP_ContPgHS; 		- 1 Enquire
043 14FA182CP
WATER PUMP
Row ID: ID__14FA182CP_ContPgHS;
IN STOCK 		$1,611.30 1
