22 - Engine - 22.11 - Engine Oil Pump & Circuit

McLaren GT McLaren GT

Find Your Part

McLaren GT McLaren GT - 22 - ENGINE - 22.11 - ENGINE OIL PUMP & CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

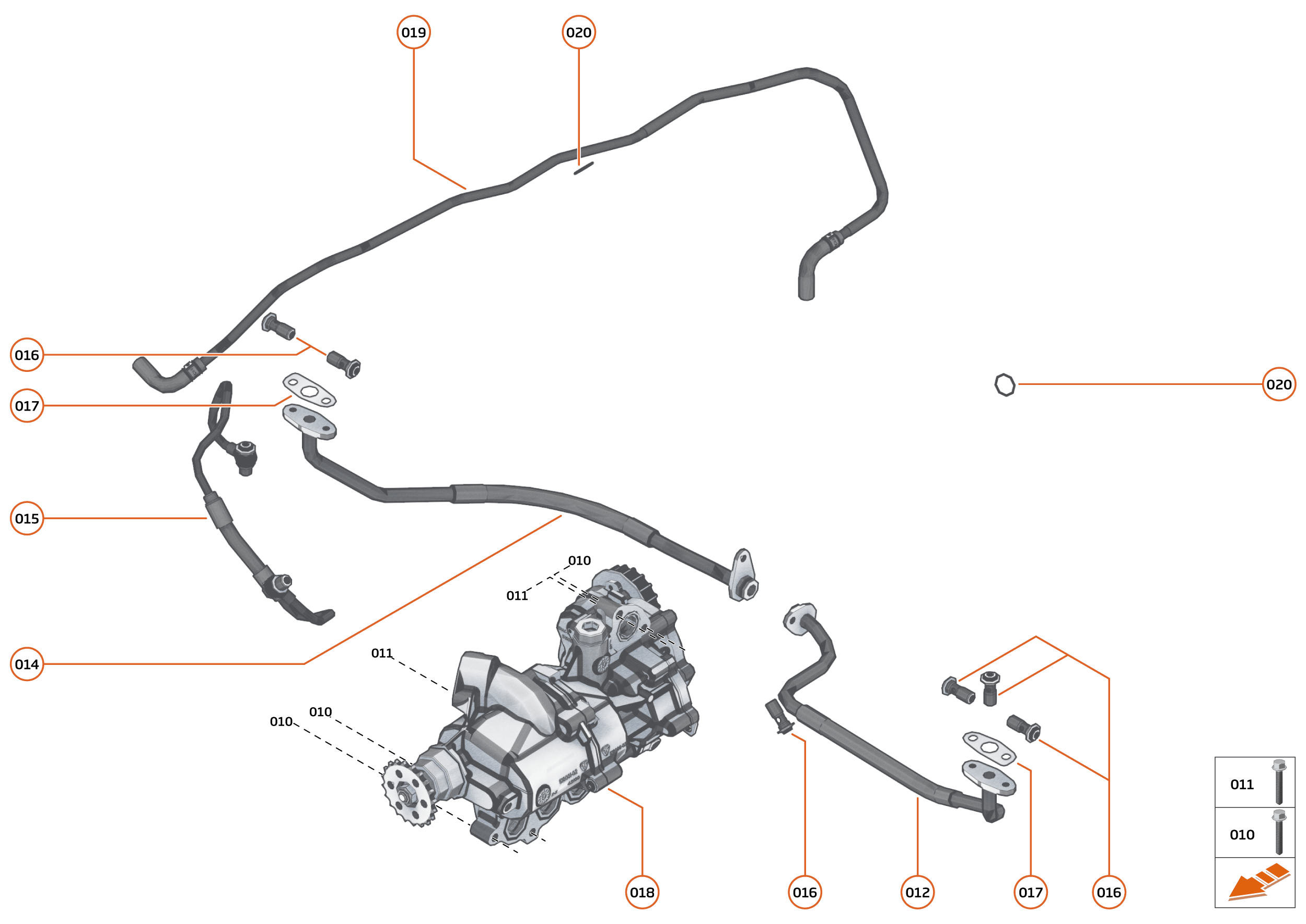

22 - ENGINE - 22.11 - ENGINE OIL PUMP & CIRCUIT of McLaren McLaren GT McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1781CP
BOLT - M6X35 - ENGINE
Row ID: ID__11F1781CP_ContPgHS; 		- 20 Enquire
011 11F1926CP
BOLT - M8X40 - DIA HEAD
Row ID: ID__11F1926CP_ContPgHS; 		- 2 Enquire
012 11F2804CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - LH
Row ID: ID__11F2804CP_ContPgHS; 		- 1 Enquire
013 11F2806CP
ORING-SEAL-16X2
Row ID: ID__11F2806CP_ContPgHS;
IN STOCK 		$7.09 1
014 11F2805CP
HOSE - TURBOCHARGER OIL RETURN - INC O-RING - RH
Row ID: ID__11F2805CP_ContPgHS; 		- 1 Enquire
015 13F0756CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH
Row ID: ID__13F0756CP_ContPgHS; 		- 1 Enquire
016 13F0762CP
BOLT - HOLLOW - M12
Row ID: ID__13F0762CP_ContPgHS; 		- 2 Enquire
017 13F0825CP
GASKET - PIPE - TURBO OIL DRAIN
Row ID: ID__13F0825CP_ContPgHS; 		- 2 Enquire
018 14FA028RP
OIL PUMP - ENGINE
Row ID: ID__14FA028RP_ContPgHS; 		- 1 Enquire
019 14F0818CP
HOSE - CRANKCASE - OIL SEPERATOR
Row ID: ID__14F0818CP_ContPgHS; 		- 1 Enquire
020 11F2060CP
SEAL - O-RING - 16-2.5 FKM
Row ID: ID__11F2060CP_ContPgHS; 		- 2 Enquire
