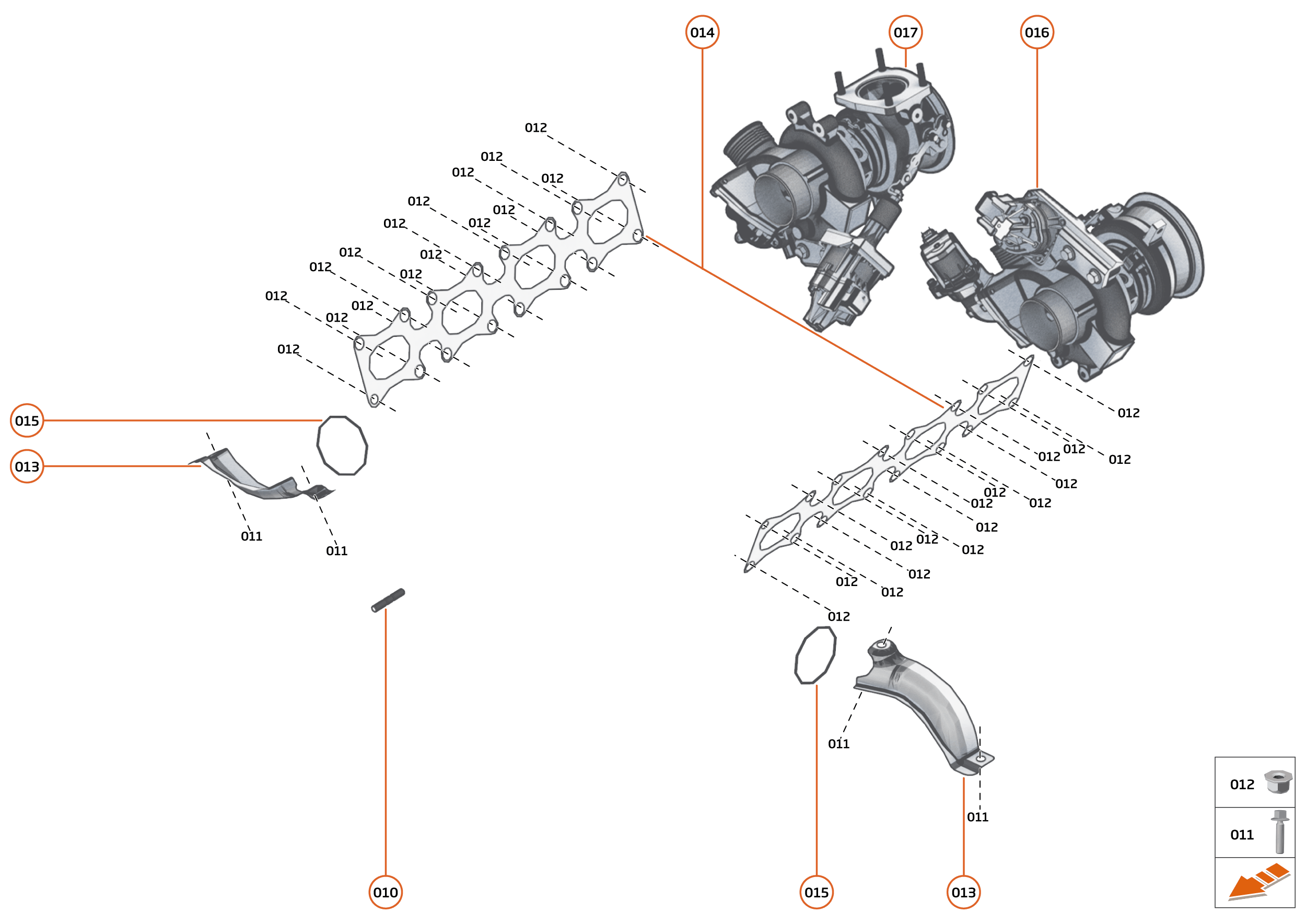

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11F2555CP	STUD - M8 - EXHAUST MANIFOLD	11F2555CP STUD - M8 - EXHAUST MANIFOLD Row ID: ID__11F2555CP_ContPgHS;	-	4	Enquire
011	11F1795CP	EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	11F1795CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S Row ID: ID__11F1795CP_ContPgHS;	-	6	Enquire
012	11F1905CP	NUT - EXHAUST MANIFOLD FLANGED - M8	11F1905CP NUT - EXHAUST MANIFOLD FLANGED - M8 Row ID: ID__11F1905CP_ContPgHS;	-	28	Enquire
013	13F0598CP	HEATSHIELD - TURBOCHARGER - - LH	13F0598CP HEATSHIELD - TURBOCHARGER - - LH Row ID: ID__13F0598CP_ContPgHS;	-	2	Enquire
014	13F0599CP	GASKET - EXHAUST MANIFOLD - ENGINE	13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE Row ID: ID__13F0599CP_ContPgHS;	-	2	Enquire
015	13F0743CP	V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM	13F0743CP V-RING - TURBOCHARGER - SEAL 59.4 X 64 X 3.3MM Row ID: ID__13F0743CP_ContPgHS;	-	2	Enquire
016	22FA240GP	TURBOCHARGER - LH	22FA240GP TURBOCHARGER - LH Row ID: ID__22FA240GP_ContPgHS;	-	1	Enquire
017	22FA241GP	TURBOCHARGER - RH	22FA241GP TURBOCHARGER - RH Row ID: ID__22FA241GP_ContPgHS;	-	1	Enquire
