28 - STEERING - 28.2 - STEERING PUMP of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 28 - STEERING - 28.2 - STEERING PUMP

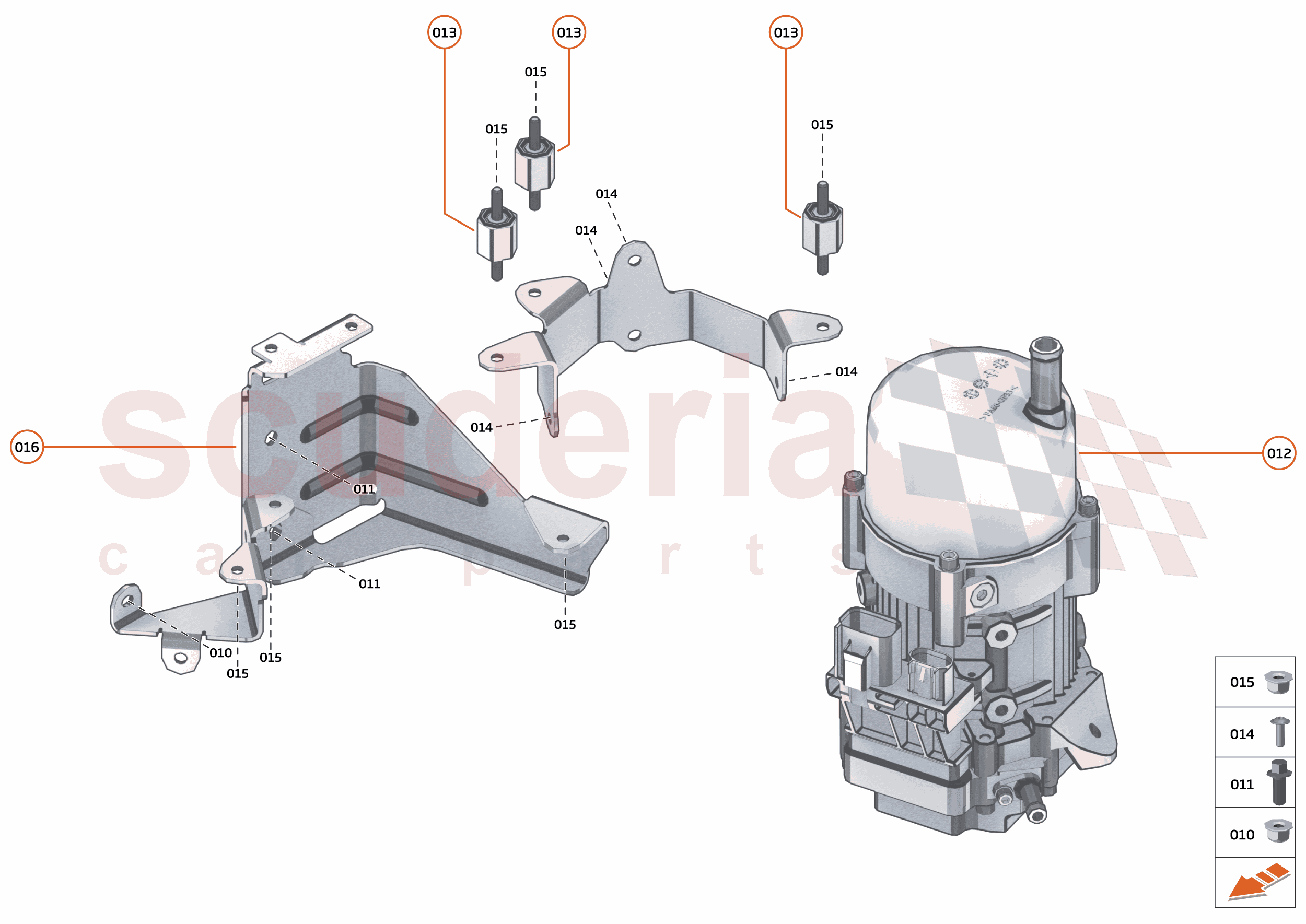

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RX043	BOLT - HEX HEAD - FLANGE - M8X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28DA009CP	EHPAS PUMP- DARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16LA614CP	AV MOUNT - TRACTION - 20X20 - M.M. M6X18	$34.70	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA601	Screw - M6x1x12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA011	NUT - M6 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28DA010CP	BRKT-PUMP-POWER STEERING-LHD	Enquire	To Order
	28DA012CP	BRKT-PUMP-POWER STEERING-RHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RB184	CLIP - SNAPLOC - 18X10	00RB184 CLIP - SNAPLOC - 18X10 Row ID: ID__00RB184_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RA360	STUD BALL - M6X19	00RA360 STUD BALL - M6X19 Row ID: ID__00RA360_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RA458	BOLT - M6X10 - FLANGED	00RA458 BOLT - M6X10 - FLANGED Row ID: ID__00RA458_ContPgHS; Resolution: Available;	-	4	Enquire
000	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP Row ID: ID__00RB042_ContPgHS; Resolution: Available;	-	1	Enquire
000	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Row ID: ID__00RG019_ContPgHS; Resolution: Available;	-	1	Enquire
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	2	Enquire
011	00RX043	BOLT - HEX HEAD - FLANGE - M8X20	00RX043 BOLT - HEX HEAD - FLANGE - M8X20 Row ID: ID__00RX043_ContPgHS; Resolution: Available;	-	2	Enquire
012	28DA009CP	EHPAS PUMP- DARE	28DA009CP EHPAS PUMP- DARE Row ID: ID__28DA009CP_ContPgHS; Resolution: Available;	-	1	Enquire
013	16LA614CP	AV MOUNT - TRACTION - 20X20 - M.M. M6X18	16LA614CP AV MOUNT - TRACTION - 20X20 - M.M. M6X18 Row ID: ID__16LA614CP_ContPgHS; Resolution: Available;	$34.70	3
014	00RA601	Screw - M6x1x12	00RA601 Screw - M6x1x12 Row ID: ID__00RA601_ContPgHS; Resolution: Available;	-	4	Enquire
015	00RA011	NUT - M6 - FLANGE HEX	00RA011 NUT - M6 - FLANGE HEX Row ID: ID__00RA011_ContPgHS; Resolution: Available;	-	6	Enquire
016	28DA010CP	BRKT-PUMP-POWER STEERING-LHD	28DA010CP BRKT-PUMP-POWER STEERING-LHD Row ID: ID__28DA010CP_ContPgHS; Resolution: Available;	-	1	Enquire
016	28DA012CP	BRKT-PUMP-POWER STEERING-RHD	28DA012CP BRKT-PUMP-POWER STEERING-RHD Row ID: ID__28DA012CP_ContPgHS; Resolution: Available;	-	1	Enquire
017	28DA011CP	BRKT - PUMP AV MOUNT - LHD	28DA011CP BRKT - PUMP AV MOUNT - LHD Row ID: ID__28DA011CP_ContPgHS; Resolution: Available;	-	1	Enquire
017	28DA013CP	BRKT - PUMP AV MOUNT - RHD	28DA013CP BRKT - PUMP AV MOUNT - RHD Row ID: ID__28DA013CP_ContPgHS; Resolution: Available;	-	1	Enquire
