29 - FUEL TANK - 29.3 - FUEL FILLER NECK of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 29 - FUEL TANK - 29.3 - FUEL FILLER NECK

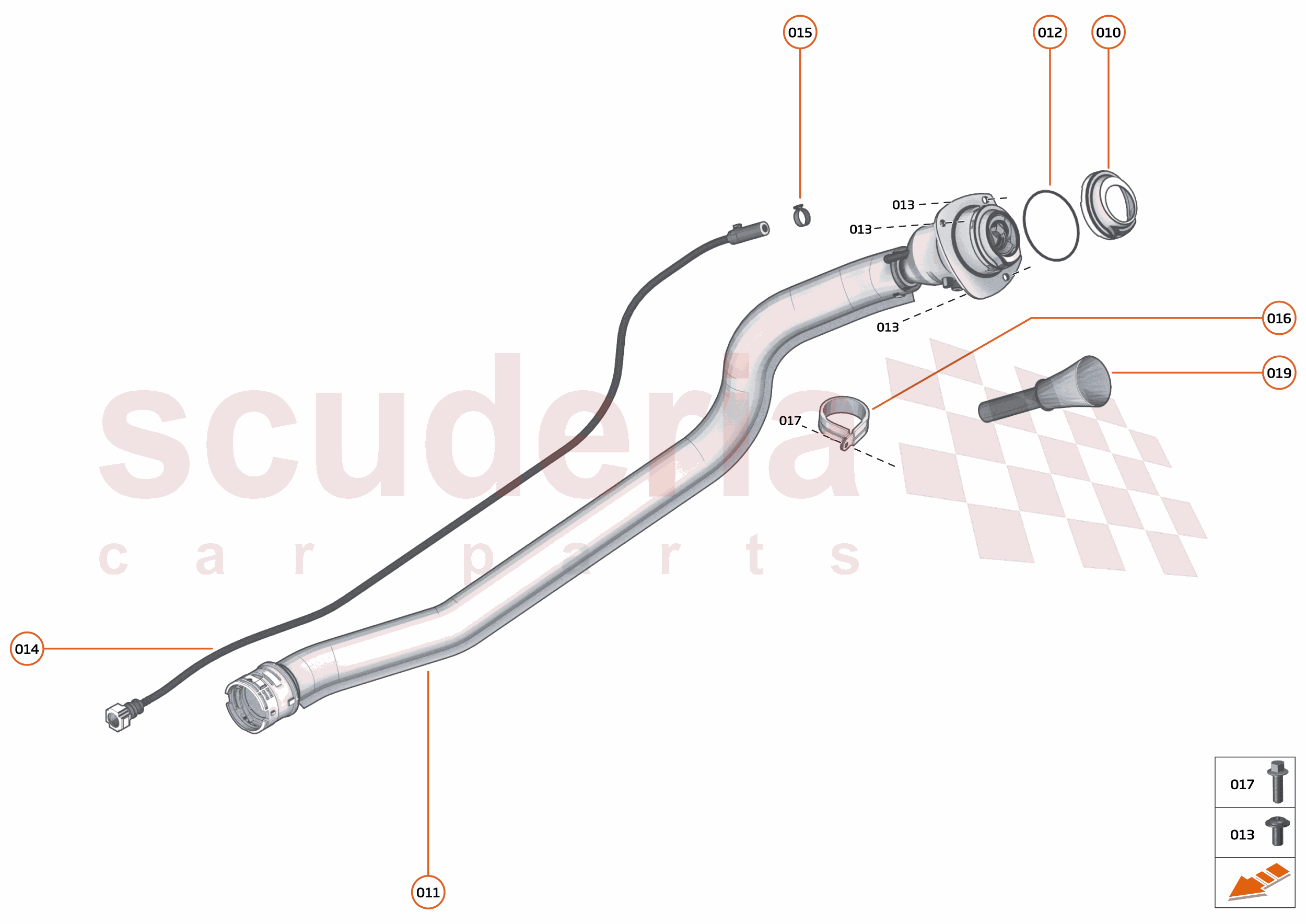

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11K0270CP	LOCKING RING - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA048CP	ASSY - FUEL FILLER - CAP LESS	$364.82	To Order
	13KA004CP	FUEL FILLER - HEAT SHIELD	$42.72	To Order
	14KA081CP	ASSY - FUEL FILLER - CAPLESS FEDERAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC108	O-RING - 3X65 - NBR-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA238	SCREW - M6X16 - LOCK BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA041CP	HOSE - FUEL - VENT	$34.70	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB096	STEPLESS EAR CLAMP - 16.2-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB029	P CLIP - DIA 45-M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS; Resolution: Available;	-	3	Enquire
010	11K0270CP	LOCKING RING - FUEL FILLER	11K0270CP LOCKING RING - FUEL FILLER Row ID: ID__11K0270CP_ContPgHS; Resolution: Available;	-	1	Enquire
011	14KA048CP	ASSY - FUEL FILLER - CAP LESS	14KA048CP ASSY - FUEL FILLER - CAP LESS Row ID: ID__14KA048CP_ContPgHS; Resolution: Available;	$364.82	1
011	13KA004CP	FUEL FILLER - HEAT SHIELD	13KA004CP FUEL FILLER - HEAT SHIELD Row ID: ID__13KA004CP_ContPgHS; Resolution: Available;	$42.72	1
011	14KA081CP	ASSY - FUEL FILLER - CAPLESS FEDERAL	14KA081CP ASSY - FUEL FILLER - CAPLESS FEDERAL Row ID: ID__14KA081CP_ContPgHS; Resolution: Available;	-	1	Enquire
012	00RC108	O-RING - 3X65 - NBR-BLK	00RC108 O-RING - 3X65 - NBR-BLK Row ID: ID__00RC108_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RA238	SCREW - M6X16 - LOCK BUTTON	00RA238 SCREW - M6X16 - LOCK BUTTON Row ID: ID__00RA238_ContPgHS; Resolution: Available;	-	3	Enquire
014	14KA041CP	HOSE - FUEL - VENT	14KA041CP HOSE - FUEL - VENT Row ID: ID__14KA041CP_ContPgHS; Resolution: Available;	$34.70	1
015	00RB096	STEPLESS EAR CLAMP - 16.2-706R	00RB096 STEPLESS EAR CLAMP - 16.2-706R Row ID: ID__00RB096_ContPgHS; Resolution: Available;	-	1	Enquire
016	00RB029	P CLIP - DIA 45-M6	00RB029 P CLIP - DIA 45-M6 Row ID: ID__00RB029_ContPgHS; Resolution: Available;	-	1	Enquire
