McLaren McLaren 750S Spider - 33 - FLUIDS - HVAC - 33.1 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $71.09 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
13A3307CP PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER $86.09 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
14A3051CP ASSY-TUNNEL IHX UNIT $301.42 To Order
Photo Part No Description Price (each) Stock
14A1800CP SUCTN PIPE - IHX TO COMPRSR $125.15 To Order
Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
00RB027 P-CLIP - DIAMETER 13 - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
14A1656CP ASSY-HOSE-CONDENSER-RECIEVER DRIER $100.13 To Order
Photo Part No Description Price (each) Stock
14A1653CP ASSY-HOSE-COMPRESSOR-CONDENSOR $223.93 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT - M6 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
14AB752CP ASSY-HOSE-HVAC-COMPRESSOR-REAR R1234YF $115.16 To Order
Photo Part No Description Price (each) Stock
00RL047 CAB TIE-ARROWHEAD-200X2-45-NYL-BLK Enquire To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $59.61 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
Photo Part No Description Price (each) Stock
14LA045CP HOSE-VALVE-HEATER-HVAC-ENGINE-NYLON $265.73 To Order
Photo Part No Description Price (each) Stock
00RB204 CLMP-SPRGBAND-LO PRO-27X12-STL-ZFB Enquire To Order
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A4228CP HOSE-HEATER-PUMP-HVAC $283.64 To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
13LA034CP BRACKET - SUPPORT - HVAC $80.59 To Order
Photo Part No Description Price (each) Stock
14A3034CP HEATER-PIPE-CLIP $66.75 To Order
Photo Part No Description Price (each) Stock
11A6627CP SENSOR - PRESSURE - HVAC $283.92 To Order
View All

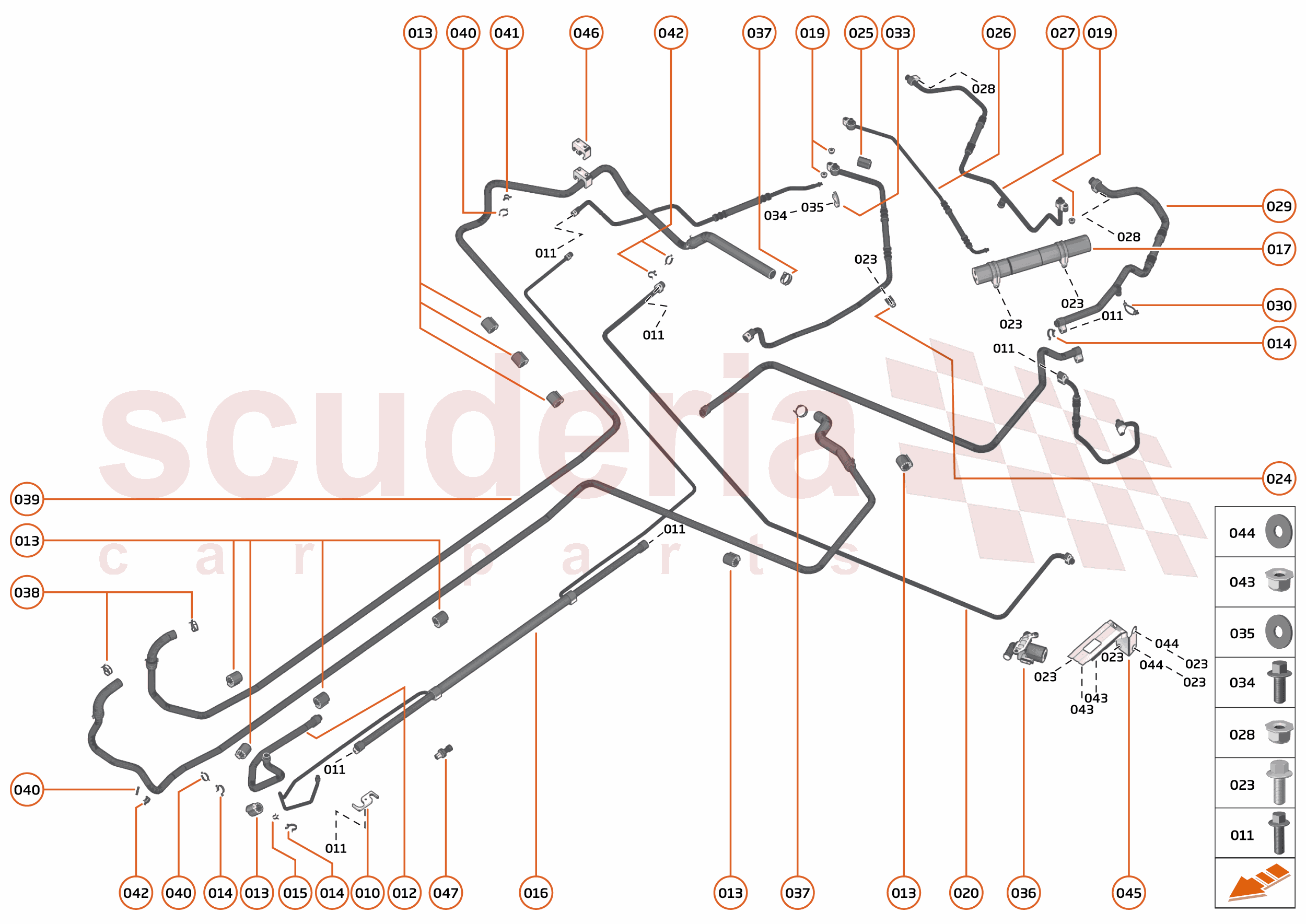

33 - FLUIDS - HVAC - 33.1 - HVAC FLUIDS CIRCUIT of McLaren McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION
Row ID: ID__11A4434CP_ContPgHS; Resolution: Available; 		$71.09 1
011 00RA120
SCREW - M6X25 - HEX
Row ID: ID__00RA120_ContPgHS; Resolution: Available; 		- 1 Enquire
012 13A3307CP
PIPE - EVAPORATOR - INTERNAL HEAT EXCHANGER
Row ID: ID__13A3307CP_ContPgHS; Resolution: Available; 		$86.09 1
013 00RA367
PIPE PROTECTOR - 19MM ID
Row ID: ID__00RA367_ContPgHS; Resolution: Available; 		- 5 Enquire
014 00RB007
CLIP - 18-20MM - FEMALE
Row ID: ID__00RB007_ContPgHS; Resolution: Available; 		- 2 Enquire
015 00RB008
CLIP - 18-20MM - MALE
Row ID: ID__00RB008_ContPgHS; Resolution: Available; 		- 3 Enquire
015 00RB045
CLIP - 9.5-10MM - MALE
Row ID: ID__00RB045_ContPgHS; Resolution: Available; 		- 1 Enquire
016 14A3051CP
ASSY-TUNNEL IHX UNIT
Row ID: ID__14A3051CP_ContPgHS; Resolution: Available; 		$301.42 1
017 14A1800CP
SUCTN PIPE - IHX TO COMPRSR
Row ID: ID__14A1800CP_ContPgHS; Resolution: Available; 		$125.15 1
018 14A1654CP
ASSY HOSE-CONDENSOR LATERAL-LH
Row ID: ID__14A1654CP_ContPgHS; Resolution: Available; 		$153.76 1
021 13A4104CP
HOSE - RECEIVER DRIER - HVAC - REAR
Row ID: ID__13A4104CP_ContPgHS; Resolution: Available; 		$306.04 1
022 14A1655CP
ASSY HOSE-CONDENSOR LATERAL-RH-STD
Row ID: ID__14A1655CP_ContPgHS; Resolution: Available; 		$250.79 1
023 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 4 Enquire
024 00RB027
P-CLIP - DIAMETER 13 - M6
Row ID: ID__00RB027_ContPgHS; Resolution: Available; 		- 1 Enquire
025 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID__00RA366_ContPgHS; Resolution: Available; 		- 1 Enquire
026 14A1656CP
ASSY-HOSE-CONDENSER-RECIEVER DRIER
Row ID: ID__14A1656CP_ContPgHS; Resolution: Available; 		$100.13 1
027 14A1653CP
ASSY-HOSE-COMPRESSOR-CONDENSOR
Row ID: ID__14A1653CP_ContPgHS; Resolution: Available; 		$223.93 1
028 00RA011
NUT - M6 - FLANGE HEX
Row ID: ID__00RA011_ContPgHS; Resolution: Available; 		- 1 Enquire
029 14AB752CP
ASSY-HOSE-HVAC-COMPRESSOR-REAR R1234YF
Row ID: ID__14AB752CP_ContPgHS; Resolution: Available; 		$115.16 1
030 00RL047
CAB TIE-ARROWHEAD-200X2-45-NYL-BLK
Row ID: ID__00RL047_ContPgHS; Resolution: Available; 		- 1 Enquire
031 12A2757CP
RECEIVER DRIER - HVAC
Row ID: ID__12A2757CP_ContPgHS; Resolution: Available; 		$410.54 1
032 00RB029
P CLIP - DIA 45-M6
Row ID: ID__00RB029_ContPgHS; Resolution: Available; 		- 2 Enquire
033 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC
Row ID: ID__11A4433CP_ContPgHS; Resolution: Available; 		$59.61 1
034 00RA002
BOLT - M8X20 - HEX
Row ID: ID__00RA002_ContPgHS; Resolution: Available; 		- 1 Enquire
035 00RC038
WASHER - WAVE M8
Row ID: ID__00RC038_ContPgHS; Resolution: Available; 		- 1 Enquire
036 14LA045CP
HOSE-VALVE-HEATER-HVAC-ENGINE-NYLON
Row ID: ID__14LA045CP_ContPgHS; Resolution: Available; 		$265.73 1
037 00RB204
CLMP-SPRGBAND-LO PRO-27X12-STL-ZFB
Row ID: ID__00RB204_ContPgHS; Resolution: Available; 		- 1 Enquire
037 00RB145
CLAMP - SPRING BAND - 26/12
Row ID: ID__00RB145_ContPgHS; Resolution: Available; 		- 1 Enquire
038 00RB202
CLAMP - SPRING BAND - 23X12
Row ID: ID__00RB202_ContPgHS; Resolution: Available; 		- 1 Enquire
039 14A4228CP
HOSE-HEATER-PUMP-HVAC
Row ID: ID__14A4228CP_ContPgHS; Resolution: Available; 		$283.64 1
040 00RB034
CLIP - 14-15MM - MALE
Row ID: ID__00RB034_ContPgHS; Resolution: Available; 		- 1 Enquire
041 00RB019
CLIP - 90DEG - FEMALE - 10-12MM
Row ID: ID__00RB019_ContPgHS; Resolution: Available; 		- 1 Enquire
042 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID__00RB032_ContPgHS; Resolution: Available; 		- 1 Enquire
043 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
044 00RC013
WASHER - M6X18X1.6
Row ID: ID__00RC013_ContPgHS; Resolution: Available; 		- 2 Enquire
045 13LA034CP
BRACKET - SUPPORT - HVAC
Row ID: ID__13LA034CP_ContPgHS; Resolution: Available; 		$80.59 1
046 14A3034CP
HEATER-PIPE-CLIP
Row ID: ID__14A3034CP_ContPgHS; Resolution: Available; 		$66.75 1
047 11A6627CP
SENSOR - PRESSURE - HVAC
Row ID: ID__11A6627CP_ContPgHS; Resolution: Available; 		$283.92 1
