20 - Suspension - Rear - 20.2 - Uprights Rear

McLaren McLaren 750S Spider

Find Your Part

McLaren McLaren 750S Spider - 20 - SUSPENSION - REAR - 20.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14BA234CP UPRIGHT - SUSPENSION - REAR - RH $1,064.30 To Order
14BA233CP UPRIGHT - SUSPENSION - REAR - LH $1,064.30 To Order
Photo Part No Description Price (each) Stock
14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER $14.30 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER $14.74 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $55.94 To Order
Photo Part No Description Price (each) Stock
00RA759 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $36.99 To Order
Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.35 To Order
13BA206CP SCREW-CSK HEX SOCKET HD M3X12-8.8 LP $1.90 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.77 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $32.52 To Order
Photo Part No Description Price (each) Stock
11B0322CP WHEEL HUB ASSY - BEARING $597.15 To Order
Photo Part No Description Price (each) Stock
00RA218 RING-PLAIN EXTERNAL-M2400-0400 Enquire To Order
View All

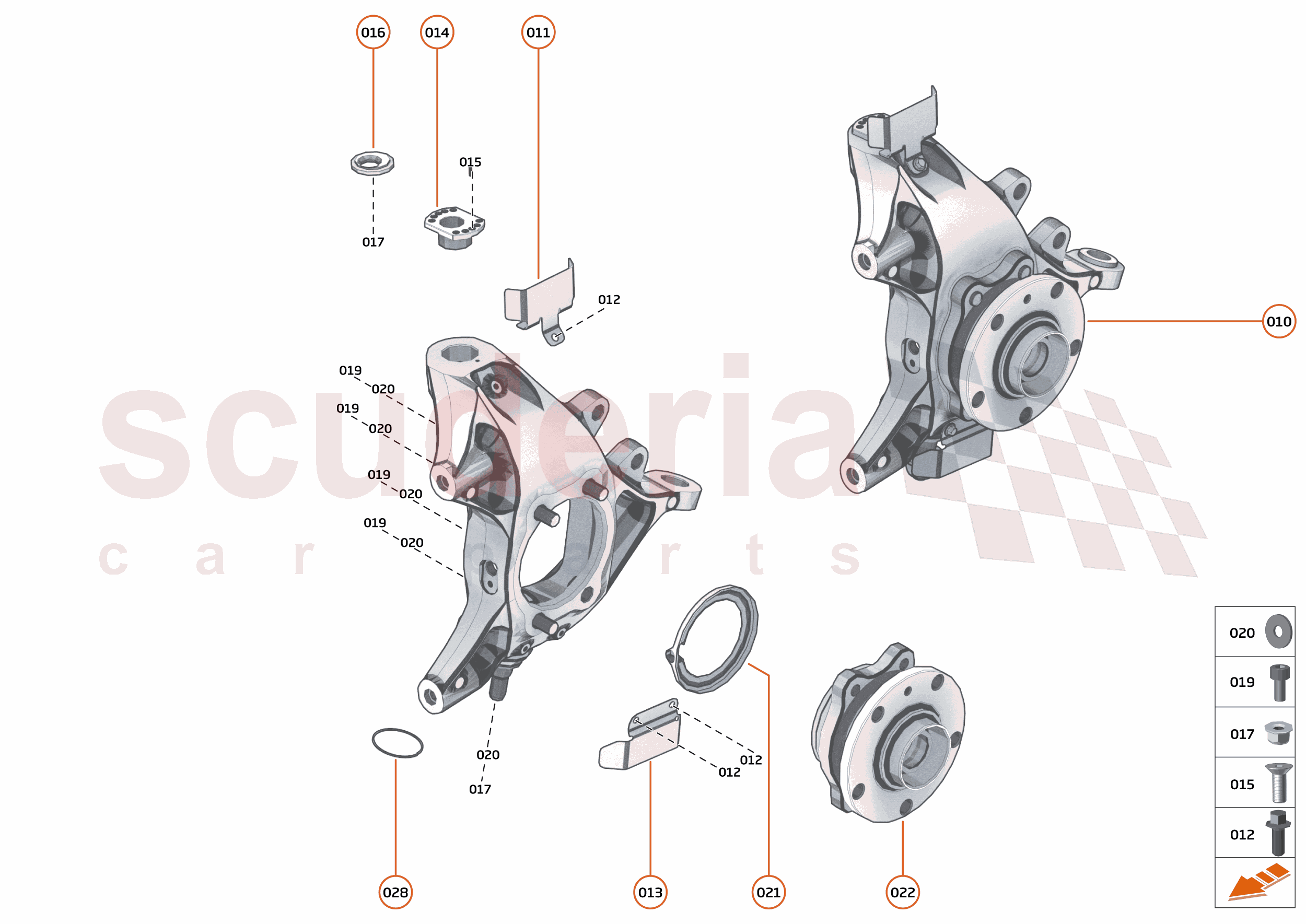

20 - SUSPENSION - REAR - 20.2 - UPRIGHTS REAR of McLaren McLaren McLaren 750S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14BA234CP
UPRIGHT - SUSPENSION - REAR - RH
Row ID: ID__14BA234CP_ContPgHS; Resolution: Available; 		$1,064.30 1
010 14BA233CP
UPRIGHT - SUSPENSION - REAR - LH
Row ID: ID__14BA233CP_ContPgHS; Resolution: Available; 		$1,064.30 1
011 14B0631CP
HEATSHIELD - BALL JOINT - REAR - UPPER
Row ID: ID__14B0631CP_ContPgHS; Resolution: Available; 		$14.30 1
012 00RA165
BOLT - M5X8 - HEX
Row ID: ID__00RA165_ContPgHS; Resolution: Available; 		- 1 Enquire
013 14B0632CP
HEATSHIELD - BALL JOINT - REAR - LOWER
Row ID: ID__14B0632CP_ContPgHS; Resolution: Available; 		$14.74 1
014 11B0541CP
TOPHAT - CAMBER ADJUSTMENT
Row ID: ID__11B0541CP_ContPgHS; Resolution: Available; 		$55.94 1
015 00RA759
BOLT - M5X8 - HEX
Row ID: ID__00RA759_ContPgHS; Resolution: Available; 		- 2 Enquire
016 11B0739CP
WASHER - CAMBER ADJUSTMENT
Row ID: ID__11B0739CP_ContPgHS; Resolution: Available; 		$36.99 1
017 00RA229
NUT - M14X1.5 - LOCKED HEX
Row ID: ID__00RA229_ContPgHS; Resolution: Available; 		- 2 Enquire
018 11B0320CP
WASHER - DIA 35X3.9X14.5
Row ID: ID__11B0320CP_ContPgHS; Resolution: Available; 		$11.29 1
019 14BA220CP
HEX SOCKET HD CAP M12X30 8.8
Row ID: ID__14BA220CP_ContPgHS; Resolution: Available; 		$3.35 4
019 13BA206CP
SCREW-CSK HEX SOCKET HD M3X12-8.8 LP
Row ID: ID__13BA206CP_ContPgHS; Resolution: Available; 		$1.90 1
020 14B0714CP
WASHER - M12X23
Row ID: ID__14B0714CP_ContPgHS; Resolution: Available; 		$2.77 4
021 15BA315CP
PROTECTOR CAP - HUB
Row ID: ID__15BA315CP_ContPgHS; Resolution: Available; 		$32.52 1
022 11B0322CP
WHEEL HUB ASSY - BEARING
Row ID: ID__11B0322CP_ContPgHS; Resolution: Available; 		$597.15 1
028 00RA218
RING-PLAIN EXTERNAL-M2400-0400
Row ID: ID__00RA218_ContPgHS; Resolution: Available; 		- 1 Enquire
