29 - FUEL TANK - 29.2 - FUEL TANK RETENTION of McLaren McLaren McLaren 750S Spider

View All

McLaren McLaren 750S Spider - 29 - FUEL TANK - 29.2 - FUEL TANK RETENTION

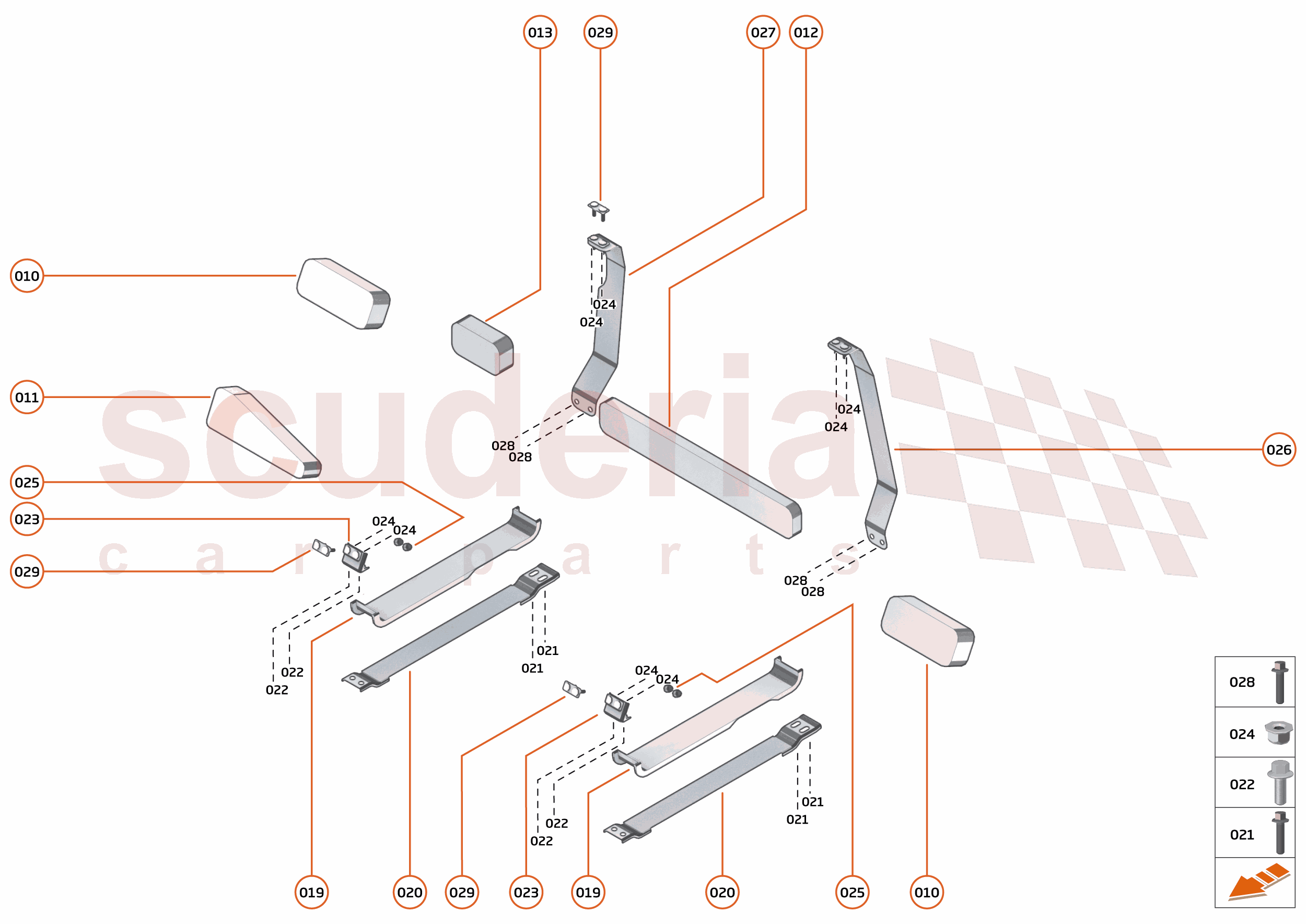

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13K0074CP	PAD - FUEL TANK - BULKHEAD - LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14K0143CP	FUEL CELL-BULKHEAD-PAD-LWR-RH	$8.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA031CP	FUEL CELL - CROSS MEMBER - PAD	$11.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA032CP	FUEL CELL - CROSS MEMBER - PAD RH	$5.78	To Order

Photo	Part No	Description	Price (each)	Stock
	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14K0068CP	STRAP-FUEL TANK MOUNTING	$82.97	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA120	SCREW - M6X25 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA073	SCREW - M6X30 - HEX	00RA073 SCREW - M6X30 - HEX Row ID: ID__00RA073_ContPgHS; Resolution: Available;	-	4	Enquire
010	13K0074CP	PAD - FUEL TANK - BULKHEAD - LOWER	13K0074CP PAD - FUEL TANK - BULKHEAD - LOWER Row ID: ID__13K0074CP_ContPgHS; Resolution: Available;	-	2	Enquire
011	14K0143CP	FUEL CELL-BULKHEAD-PAD-LWR-RH	14K0143CP FUEL CELL-BULKHEAD-PAD-LWR-RH Row ID: ID__14K0143CP_ContPgHS; Resolution: Available;	$8.59	1
012	14KA031CP	FUEL CELL - CROSS MEMBER - PAD	14KA031CP FUEL CELL - CROSS MEMBER - PAD Row ID: ID__14KA031CP_ContPgHS; Resolution: Available;	$11.51	1
013	14KA032CP	FUEL CELL - CROSS MEMBER - PAD RH	14KA032CP FUEL CELL - CROSS MEMBER - PAD RH Row ID: ID__14KA032CP_ContPgHS; Resolution: Available;	$5.78	1
016	14KA033CP	FUEL CELL - PAD - REAR CENTRE	14KA033CP FUEL CELL - PAD - REAR CENTRE Row ID: ID__14KA033CP_ContPgHS; Resolution: Available;	$6.38	2
019	14KA046CP	MOUNTING STRAP - MOULDED - FUEL TANK	14KA046CP MOUNTING STRAP - MOULDED - FUEL TANK Row ID: ID__14KA046CP_ContPgHS; Resolution: Available;	$13.45	1
020	14K0068CP	STRAP-FUEL TANK MOUNTING	14K0068CP STRAP-FUEL TANK MOUNTING Row ID: ID__14K0068CP_ContPgHS; Resolution: Available;	$82.97	2
021	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS; Resolution: Available;	-	4	Enquire
022	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	4	Enquire
