INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati Ghibli (2014-2016) S Q4

View All

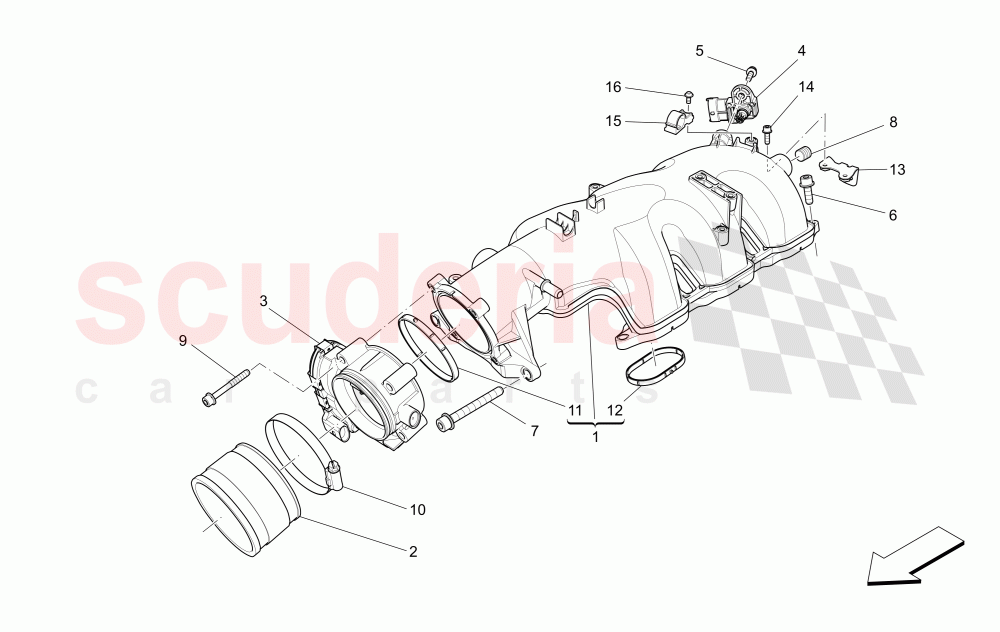

Maserati Ghibli (2014-2016) S Q4 - INTAKE MANIFOLD AND THROTTLE BODY

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	286862	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304167	VALVE THROTTLE SPACER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	329966	THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231630	SCREWM8X65	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14324911	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREWM6X50	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304446	SCREW COLLAR D.70 - D.90 X 9.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309026	V6 Airbox Intake Manifold Connection Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317389	V6 AIRBOX GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324522	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231618	SCREWM6X20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306353	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306938	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	286862	INTAKE MANIFOLD	286862 INTAKE MANIFOLD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
2	304167	VALVE THROTTLE SPACER ARRIVING SOON	304167 VALVE THROTTLE SPACER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION ARRIVING SOON	-	1	Enquire
3	329966	THROTTLE BODY	329966 THROTTLE BODY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
4	272880	PRESSURE AND TEMPERATURE SENSOR ARRIVING SOON	272880 PRESSURE AND TEMPERATURE SENSOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION ARRIVING SOON	-	1	Enquire
5	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
6	84317700	SCREW	84317700 SCREW M8X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
7	231630	SCREWM8X65	231630 SCREWM8X65 M8X65 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
8	14324911	THREADED PLUG	14324911 THREADED PLUG SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
9	231625	SCREWM6X50	231625 SCREWM6X50 M6X50 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
10	304446	SCREW COLLAR D.70 - D.90 X 9.3	304446 SCREW COLLAR D.70 - D.90 X 9.3 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
11	309026	V6 Airbox Intake Manifold Connection Gasket	309026 V6 Airbox Intake Manifold Connection Gasket	-	1	Enquire
12	317389	V6 AIRBOX GASKET	317389 V6 AIRBOX GASKET	-	6	Enquire
13	324522	BRACKET	324522 BRACKET	-	1	Enquire
14	231618	SCREWM6X20	231618 SCREWM6X20 M6X20	-	2	Enquire
15	306353	BRACKET	306353 BRACKET	-	1	Enquire
16	306938	SCREW	306938 SCREW	-	1	Enquire
