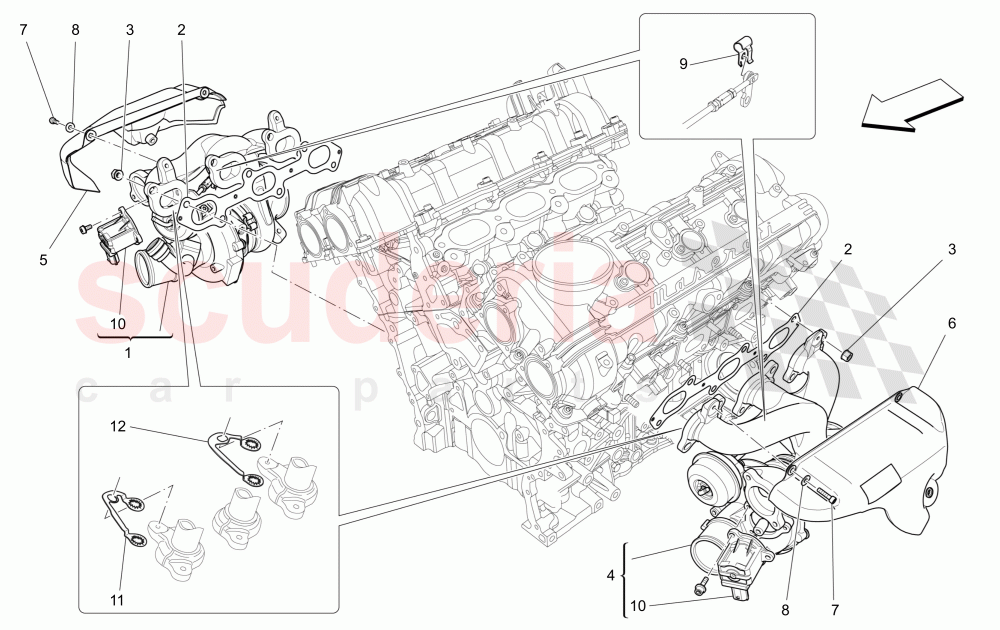

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	275674	TURBO GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307964	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002195	RH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002873	LH EXHAUST MANIFOLD HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673010358	BY-PASS ELECTRONIC VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876014	PLATE CYL. 3-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	876015	PLATE CYL. 1-4	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	837668	RH TURBOCHARGER	837668 RH TURBOCHARGER	-	1	Enquire
1	837668	RH TURBOCHARGER	837668 RH TURBOCHARGER	-	1	Enquire
1	837668	RH TURBOCHARGER	837668 RH TURBOCHARGER For cars with engine number lower than 219666, order also the blow-by pipe on RH turbocharger. 294643 - To be ordered together with PN 311807 RH WASTEGATE CLIP	-	1	Enquire
2	275674	TURBO GASKET	275674 TURBO GASKET	-	2	Enquire
3	307964	NUT	307964 NUT	-	12	Enquire
4	297712	LH TURBOCHARGER	297712 LH TURBOCHARGER To be ordered together with PN 310809 LH WASTEGATE CLIP	-	1	Enquire
4	836760	LH TURBOCHARGER KIT	836760 LH TURBOCHARGER KIT	-	1	Enquire
5	670002195	RH EXHAUST MANIFOLD HEAT SHIELD	670002195 RH EXHAUST MANIFOLD HEAT SHIELD	-	1	Enquire
6	670002873	LH EXHAUST MANIFOLD HEAT SHIELD	670002873 LH EXHAUST MANIFOLD HEAT SHIELD	-	1	Enquire
7	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6X16	-	1	Enquire
8	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X1.2	-	1	Enquire
9	310809	LH WASTE GATE CLIP	310809 LH WASTE GATE CLIP	-	1	Enquire
9	319388	RH WASTE GATE CLIP	319388 RH WASTE GATE CLIP	-	1	Enquire
10	673010358	BY-PASS ELECTRONIC VALVE	673010358 BY-PASS ELECTRONIC VALVE	-	2	Enquire
11	876014	PLATE CYL. 3-6	876014 PLATE CYL. 3-6	-	2	Enquire
12	876015	PLATE CYL. 1-4	876015 PLATE CYL. 1-4	-	2	Enquire
