LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati Ghibli (2014-2016) S Q4

View All

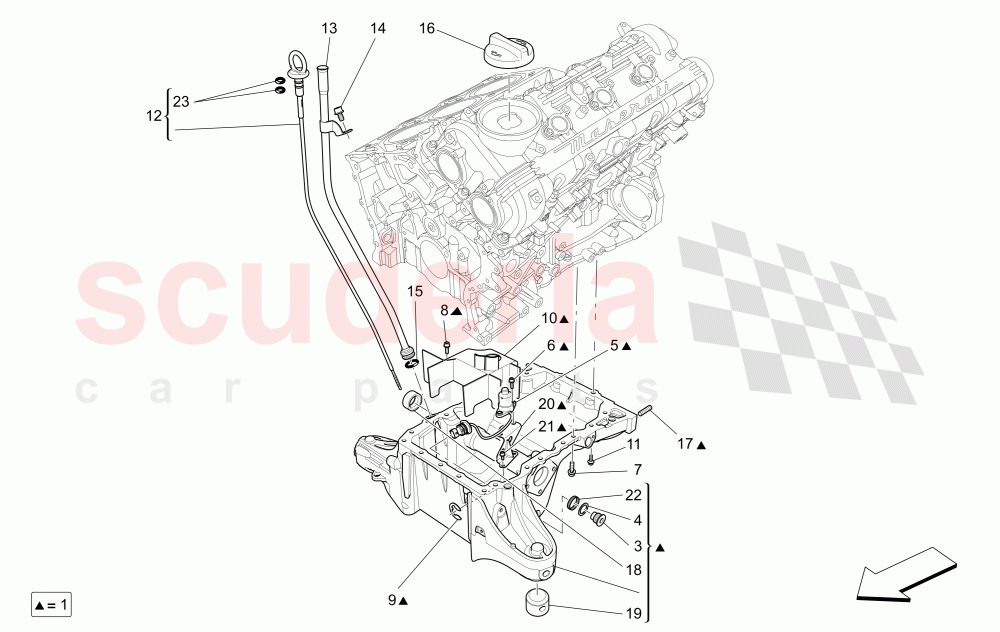

Maserati Ghibli (2014-2016) S Q4 - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316058	OIL SUMP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock

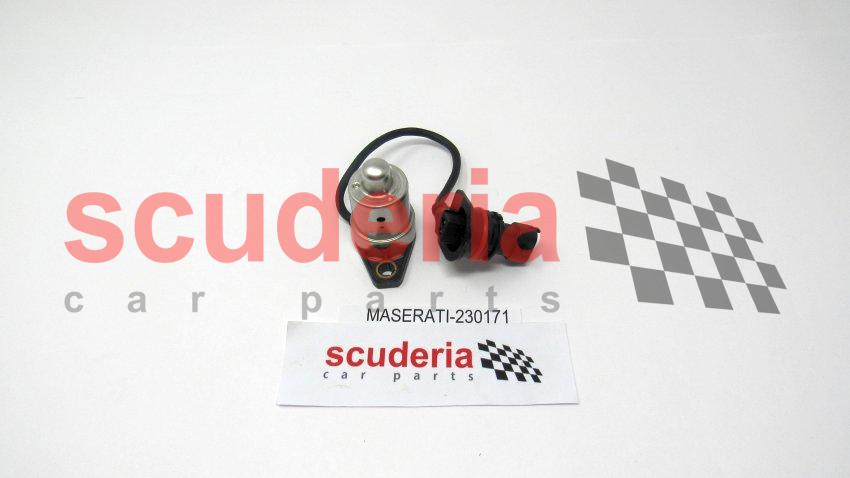

	230171	OIL LEVEL DETECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16165276	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291687	OIL SUMP SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295634	SCREWM6X22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315073	DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295885	OIL DIPSTICK HOLDER EXTENSION	Enquire	To Order
	319585	OIL DIPSTICK HOLDER EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233600	SCREWM6X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282370	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

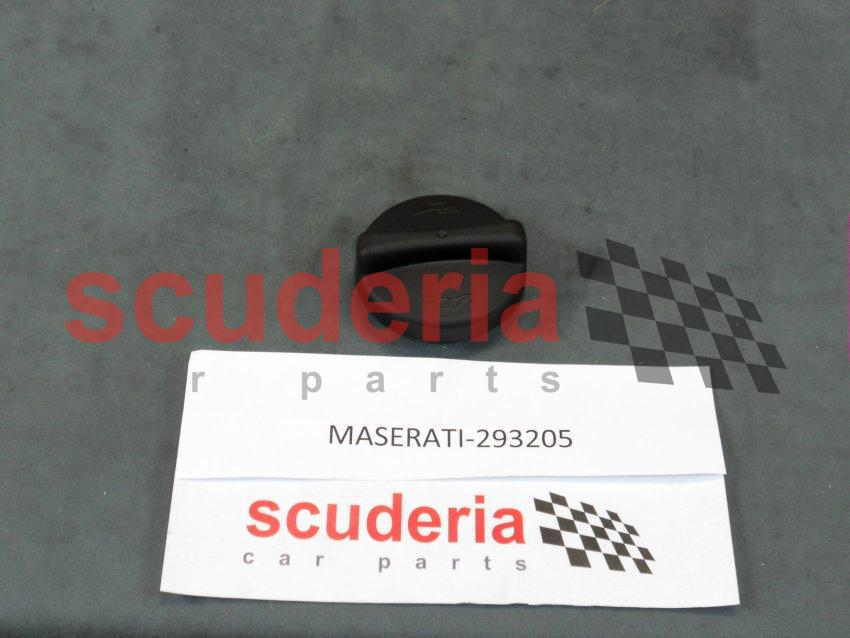

	293205	ENGINE OIL FILLER CAP	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	303589	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294812	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294029	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299494	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282394	SCREWM6X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306702	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	316058	OIL SUMP ASSEMBLY	316058 OIL SUMP ASSEMBLY SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
2	304402	OIL SUMP	304402 OIL SUMP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
3	104280	MAGNETIC THREADED PLUG M22 X 1.5 ARRIVING SOON	104280 MAGNETIC THREADED PLUG M22 X 1.5 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION ARRIVING SOON	-	1	Enquire
4	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 ARRIVING SOON	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION ARRIVING SOON	-	1	Enquire
5	230171	OIL LEVEL DETECTOR	230171 OIL LEVEL DETECTOR SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
6	282394	SCREWM6X18	282394 SCREWM6X18 M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
7	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8X30 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	19	Enquire
8	282394	SCREWM6X18	282394 SCREWM6X18 M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
9	16165276	CIRCLIP	16165276 CIRCLIP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
10	291687	OIL SUMP SHIELD	291687 OIL SUMP SHIELD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
11	295634	SCREWM6X22	295634 SCREWM6X22 M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
12	315073	DIPSTICK	315073 DIPSTICK SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
13	295885	OIL DIPSTICK HOLDER EXTENSION	295885 OIL DIPSTICK HOLDER EXTENSION SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
13	319585	OIL DIPSTICK HOLDER EXTENSION	319585 OIL DIPSTICK HOLDER EXTENSION SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
14	233600	SCREWM6X12	233600 SCREWM6X12 M6X12 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
15	282370	O.R. GASKET	282370 O.R. GASKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
16	293205	ENGINE OIL FILLER CAP ARRIVING SOON	293205 ENGINE OIL FILLER CAP SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION ARRIVING SOON	-	1	Enquire
17	303589	STUD	303589 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
18	294812	BUSHING	294812 BUSHING SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
19	294029	BUSHING	294029 BUSHING SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
20	299494	BRACKET	299494 BRACKET SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
21	282394	SCREWM6X18	282394 SCREWM6X18 M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
22	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
23	306702	O.R. GASKET	306702 O.R. GASKET	-	2	Enquire
