CRANKCASE of Maserati Maserati Ghibli (2014-2016) S Q4

View All

Maserati Ghibli (2014-2016) S Q4 - CRANKCASE

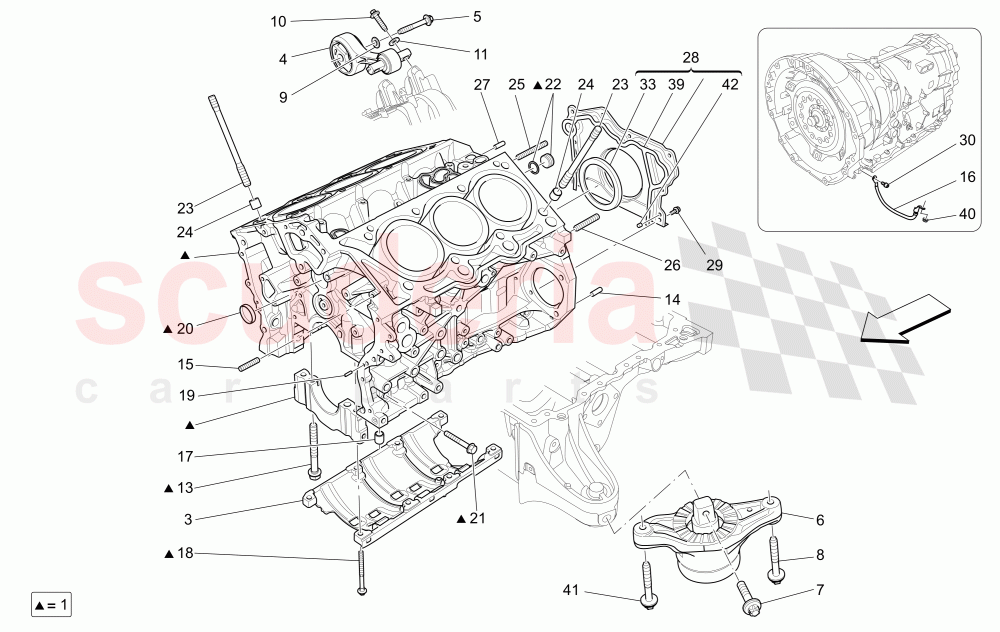

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	295334	ENGINE BLOCK	Enquire	To Order
	315337	ENGINE BLOCK	Enquire	To Order
	767001	ENGINE BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275361	BASE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003630	HIGH LINK ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000146	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003629	LH ENGINE BUSHING	Enquire	ARRIVING SOON
	670003628	RH ENGINE BUSHING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670007966	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009954	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000096	WASHERD.12.2-28X3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035412	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000247	WASHERD.10.2-25X3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10337710	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282918	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003868	CABLE FOR ENGINE-FRAME EARTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165351	CENTERING DOWEL	Enquire	To Order
	300476	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279025	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282607	SCREWM8X40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313719	THREADED PLUG WITH COPPER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306027	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290976	STUD	Enquire	To Order
	303590	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303589	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10337710	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275289	REAR PLATE	Enquire	To Order
	335495	REAR PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000383	SCREWM8X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334627	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326558	CRANKSHAFT REAR PLATE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000505	NUTM8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	670032490	ENGINE ASSEMBLY	670032490 ENGINE ASSEMBLY	-	1	Enquire
1	295334	ENGINE BLOCK	295334 ENGINE BLOCK SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
1	315337	ENGINE BLOCK	315337 ENGINE BLOCK SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
1	767001	ENGINE BLOCK	767001 ENGINE BLOCK SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
3	275361	BASE SHIELD	275361 BASE SHIELD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
4	670003630	HIGH LINK ROD	670003630 HIGH LINK ROD	-	1	Enquire
5	675000146	SCREW	675000146 SCREW M12X80	-	1	Enquire
6	670003629	LH ENGINE BUSHING ARRIVING SOON	670003629 LH ENGINE BUSHING ARRIVING SOON	-	1	Enquire
6	670003628	RH ENGINE BUSHING ARRIVING SOON	670003628 RH ENGINE BUSHING ARRIVING SOON	-	1	Enquire
7	670007966	SCREW	670007966 SCREW	-	2	Enquire
8	670009954	SCREW	670009954 SCREW M12	-	2	Enquire
9	675000096	WASHERD.12.2-28X3	675000096 WASHERD.12.2-28X3 D.12.2-28X3	-	2	Enquire
10	670035412	SCREW	670035412 SCREW	-	2	Enquire
11	675000247	WASHERD.10.2-25X3	675000247 WASHERD.10.2-25X3 D.10.2-25X3	-	2	Enquire
14	10337710	STUD	10337710 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
15	282918	PIN	282918 PIN SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
16	670003868	CABLE FOR ENGINE-FRAME EARTH	670003868 CABLE FOR ENGINE-FRAME EARTH	-	1	Enquire
17	165351	CENTERING DOWEL	165351 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
17	300476	CENTERING DOWEL	300476 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
19	279025	CENTERING DOWEL	279025 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
21	282607	SCREWM8X40	282607 SCREWM8X40 M8X40 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
22	313719	THREADED PLUG WITH COPPER WASHER	313719 THREADED PLUG WITH COPPER WASHER SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
23	306027	STUD	306027 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	16	Enquire
24	185360	CENTERING DOWEL	185360 CENTERING DOWEL SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	4	Enquire
25	290976	STUD	290976 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
25	303590	STUD	303590 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
26	303589	STUD	303589 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	5	Enquire
27	10337710	STUD	10337710 STUD SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	2	Enquire
28	275289	REAR PLATE	275289 REAR PLATE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
28	335495	REAR PLATE	335495 REAR PLATE SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	1	Enquire
29	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION	-	8	Enquire
30	675000383	SCREWM8X16	675000383 SCREWM8X16 M8X16	-	1	Enquire
33	334627	SEAL RING	334627 SEAL RING	-	1	Enquire
39	326558	CRANKSHAFT REAR PLATE SEAL	326558 CRANKSHAFT REAR PLATE SEAL	-	1	Enquire
40	675000505	NUTM8	675000505 NUTM8 M8	-	1	Enquire
41	675000024	SCREW	675000024 SCREW M12	-	2	Enquire
42	102725	CENTERING DOWEL	102725 CENTERING DOWEL	-	2	Enquire
