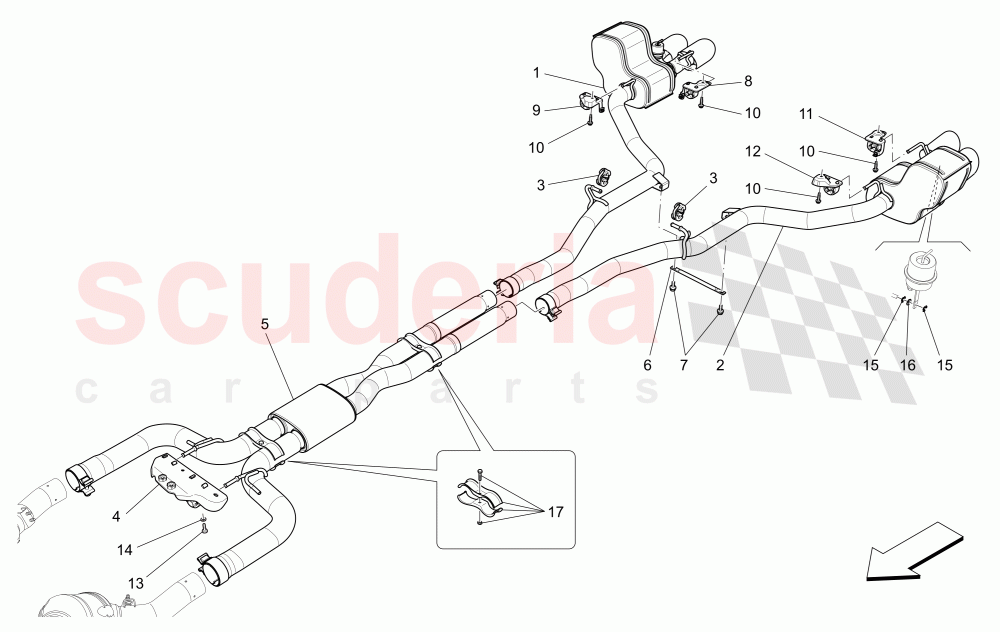

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670103689	REAR RH MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670103688	REAR LH MUFFLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001949	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003897	CENTRAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009469	CENTRAL SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005639	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000463	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005370	RH REAR SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670001529	RH FRONT SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000041	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock

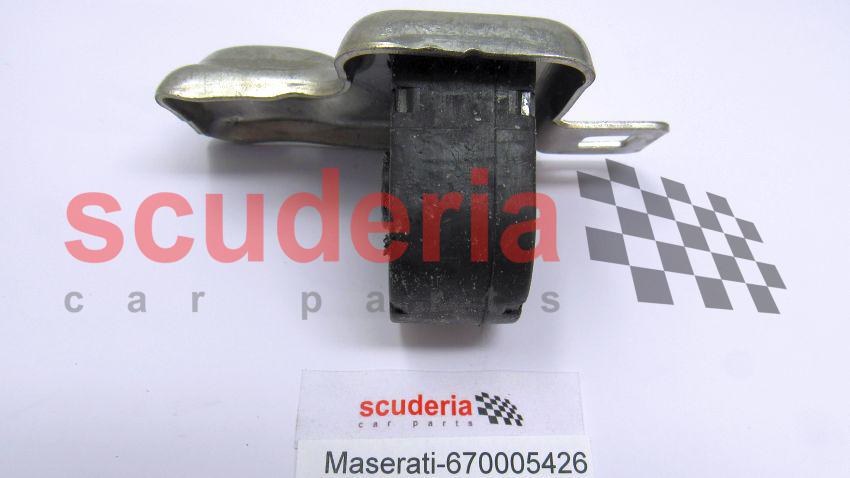

	670005426	LH REAR SILENCER SUPPORT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670001528	LH FRONT SILENCER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000379	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000089	WASHERD.8.15-17X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003135	LOCK RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003136	ELASTIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673003961	KIT EXHAUST SILENCER SUPPORT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670103689	REAR RH MUFFLER	670103689 REAR RH MUFFLER	-	1	Enquire
2	670103688	REAR LH MUFFLER	670103688 REAR LH MUFFLER	-	1	Enquire
3	675001949	FLEXIBLE PAD	675001949 FLEXIBLE PAD	-	2	Enquire
4	670003897	CENTRAL BRACKET	670003897 CENTRAL BRACKET	-	1	Enquire
5	670009469	CENTRAL SILENCER	670009469 CENTRAL SILENCER	-	1	Enquire
6	670005639	SPACER	670005639 SPACER	-	1	Enquire
7	675000463	SCREW	675000463 SCREW M8X20	-	2	Enquire
8	670005370	RH REAR SILENCER SUPPORT	670005370 RH REAR SILENCER SUPPORT	-	1	Enquire
9	670001529	RH FRONT SILENCER SUPPORT	670001529 RH FRONT SILENCER SUPPORT	-	1	Enquire
10	675000041	SCREW ARRIVING SOON	675000041 SCREW ARRIVING SOON	-	2	Enquire
11	670005426	LH REAR SILENCER SUPPORT ARRIVING SOON	670005426 LH REAR SILENCER SUPPORT ARRIVING SOON	-	1	Enquire
12	670001528	LH FRONT SILENCER SUPPORT	670001528 LH FRONT SILENCER SUPPORT	-	1	Enquire
13	675000379	SCREW	675000379 SCREW	-	2	Enquire
14	675000089	WASHERD.8.15-17X2	675000089 WASHERD.8.15-17X2 D.8.15-17X2	-	2	Enquire
15	673003135	LOCK RING	673003135 LOCK RING	-	4	Enquire
16	673003136	ELASTIC WASHER	673003136 ELASTIC WASHER	-	2	Enquire
17	673003961	KIT EXHAUST SILENCER SUPPORT	673003961 KIT EXHAUST SILENCER SUPPORT	-	2	Enquire
